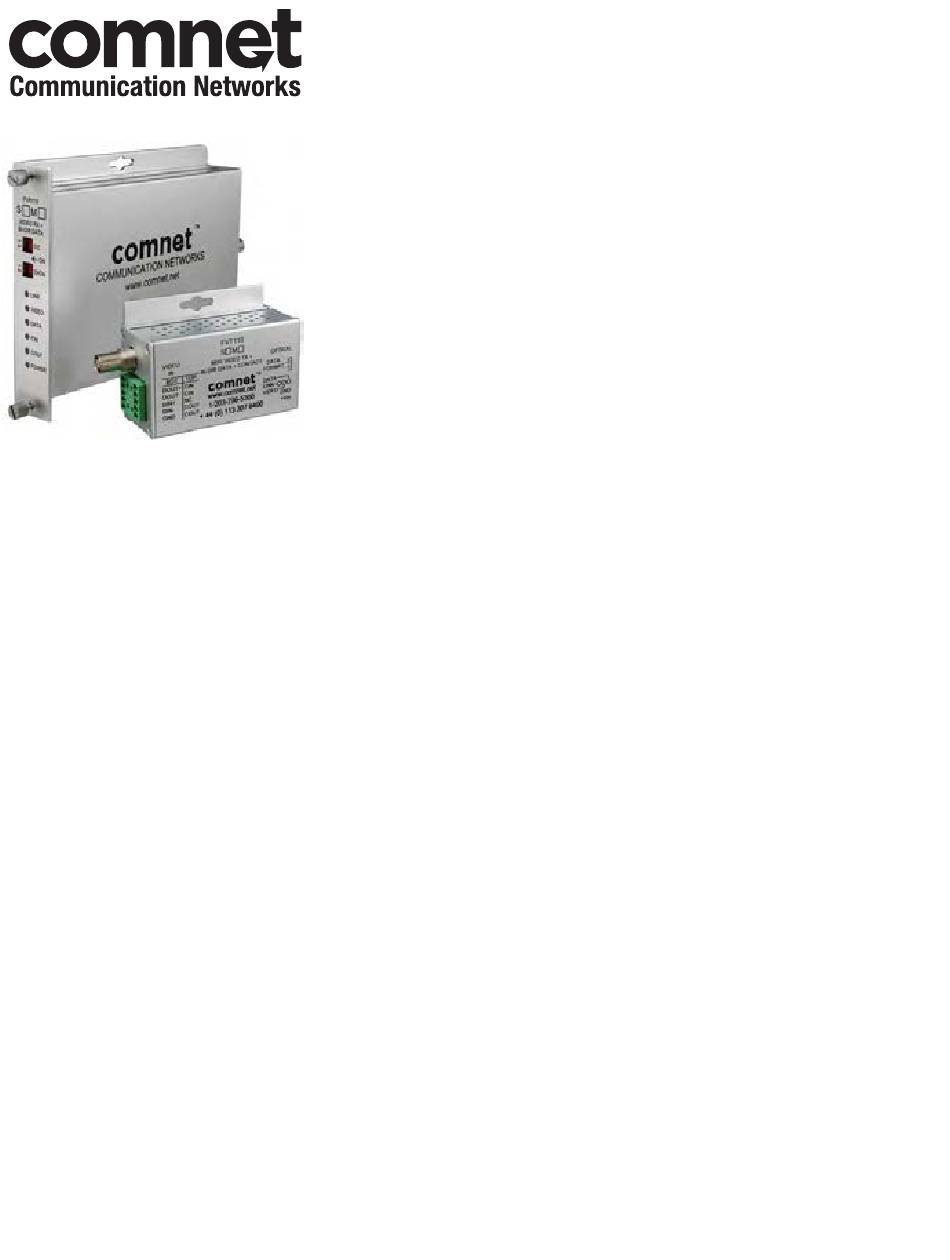

INSTALLATION AND OPERATION MANUAL
FVT/FVR110(M,S)1[/M]
10-BIT DIGITAL VIDEO WITH
ONE BI-DIRECTIONAL DATA CHANNEL
The ComNet
FVT/FVR110 series is a video transmitter/receiver and data transceiver
™
that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C
digitally encoded video and bi-directional data over one multimode or single mode
optical fiber. The FVT110 also transmits a single bi-directional contact closure signal.
The module is universally compatible with major CCTV camera manufacturers.
Figures 6 and 7 starting on Page 4 illustrate the specific data connections for
RS232, RS422, 2 or 4-wire RS485 data transmission.
The FVT/FVR110 also supports "up-the-coax" data transmission from all major
manufacturers, utilizing time-base correction these units can achieve distances of
48km. The FVT/FVR110 supports Panasonic Proteus
Bilinx
Up-the-Coax systems.
™
Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment
operating status. Figure 10 on Page 6 describes the LED indicators for each light on
the unit.
The FVT110 and FVR110 units are interchangeable between stand-alone or card
mount configurations, or may be DIN-rail mounted by the addition of ComNet
model DINBKT1 adaptor plate. The FVT110M is stand-alone only. See Figure A on
Page 8 for mounting instructions.
, Pelco Coaxitron
and Bosch
™
™
INS_FVT/FVR110_REV–
10/27/11
PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVT110 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet FVT110 Series

Summary of Contents for Comnet FVT110 Series

  • Page 1 The FVT110 and FVR110 units are interchangeable between stand-alone or card mount configurations, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. The FVT110M is stand-alone only. See Figure A on Page 8 for mounting instructions.

  • Page 2: Front Panel

    INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 1 – FVT/FVR110 TRANSMITTER AND RECEIVER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPES Operating Voltage Range: 8–15 VDC Power Consumption: 6W Max NOTE: Remove Electrical Connector for Rack Mount Units FIGURE 2 –...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 4 – FVT110/M TRANSMITTER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPES Operating Voltage Range: 8–15 VDC Power Consumption: 6W Max FIGURE 5 – FVT110M TRANSMITTER FRONT PANEL REAR PANEL VIDEO IN OPTICAL DATA FORMAT LEDs: LINK VIDEO DATA...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 6 – DATA SWITCH POSITIONS The mode for each data channel is configured using a pair of switches on the front panel of the unit. Switch 1 Switch 2 Resulting Mode RS232 RS422, Bi-Phase or Manchester Switch RS485 2W,...

  • Page 5: Video Out

    INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 7 – DATA CONNECTIONS Customer Customer FVT110 Equipment Equipment FVR110 Up-the-Coax Up-the-Coax UTC Control VIDEO IN VIDEO OUT Control Receiver Control Transmitter Customer Customer Equipment FVT110 Equipment FVR110 Data Transmit DIN(–) DOUT(–) Data Receive RS232 Data Receive DOUT(–)
  • Page 6 INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 8 – CONTACT CLOSURE The FVT110 transmits the state of a contact closure input over fiber to an output relay on the FVR110. FVT110 FVT110/M Dry contact closure input. Applying Dry contact closure input. Applying a voltage to these pins may damage a voltage to these pins may damage the unit.
  • Page 7 INSTALLATION AND OPERATION MANUAL FVT/FVR110(M,S)1[/M] FIGURE 10 – LED INDICATORS LINK VIDEO DATA IN POWER COUT GREEN Communication An active video An active data Unit powered up Contact Closed Contact Closed link has been signal is present signal is present established over on the BNC on the pins of the...
  • Page 8 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_FVT/FVR110_REV– 10/27/11 © 2014 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. PAGE 8...
