SIMPLIHOME brooklyn + max WyndenHall AXCHLL-09-WH Manual

Hollander / fabian / auster sideboard buffet
Hide thumbs

Advertisement

Quick Links

Download this manual

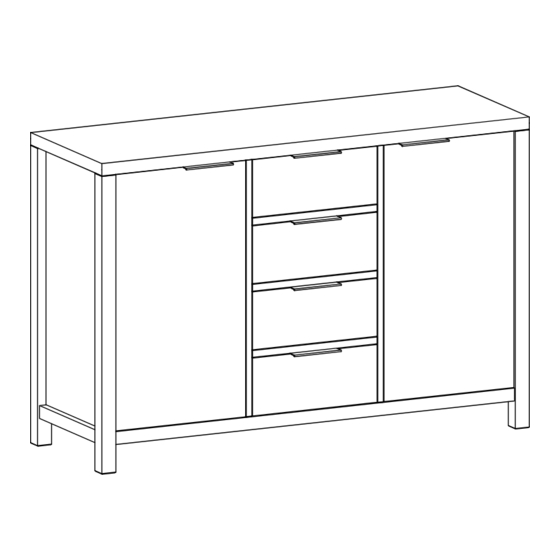

Hollander / Fabian / Auster
Sideboard Buffet
Model # AXCHLL-09-WH
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn + max WyndenHall AXCHLL-09-WH and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME brooklyn + max WyndenHall AXCHLL-09-WH

Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCHLL-09-WH

  • Page 1 Hollander / Fabian / Auster Sideboard Buffet Model # AXCHLL-09-WH...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.

  • Page 7: Middle Frame

    Pre-Assembly Information Model # AXCHLL-09-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM FRAME QTY 1 QTY 1 QTY 1 MIDDLE FRAME SHELF BOTTOM SHELF QTY 3 QTY 4 QTY 2...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCHLL-09-WH Part Description LEFT DOOR RIGHT DOOR LEFT BACK PANEL QTY 1 QTY 1 QTY 1 Warning Label RIGHT BACK PANEL MIDDLE BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 4 QTY 4...
  • Page 9 Pre-Assembly Information Model # AXCHLL-09-WH Hardware Description ALLEN KEY BOLT ALLEN KEY BOLT ALLEN KEY SCREW M6 x 50 mm M6 x 30 mm M6 X 30mm QTY 6 QTY 6 QTY 34 WOOD DOWEL CAM LOCK PIN ALLEN KEY CAM LOCK Ø8 X 30mm QTY 1...
  • Page 10 Pre-Assembly Information Model # AXCHLL-09-WH Hardware Description PHILLIPS SCREW MAGNET AND PLATE M3 X 15mm HANDLE QTY 2 SETS QTY 26 QTY 6 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 M4 X 25mm - QTY 1 PHILLIPS SCREW M3.5 X 15mm...
  • Page 11 Components - Key Diagram Model # AXCHLL-09-WH...
  • Page 12 Assembly Model # AXCHLL-09-WH Step 1 1. Attach four Cam Lock Pins 4 into pre-drilled holes at back of Drawer Front K . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 13 Assembly Model # AXCHLL-09-WH Step 3 Step 4 1. Align Drawer Back M with Drawer Bottom N and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 3 through drilled holes on each Drawer Side LL , LR . 3.
  • Page 14 Assembly Model # AXCHLL-09-WH Step 6 1. Insert four Wood Dowels 6 into guide holes on each Middle Frame E . 2. Insert four Wood Dowels 6 into guide holes on each Divider CL , CR . 3. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 15 Assembly Model # AXCHLL-09-WH Step 7 Step 8 1. Repeat Step-7 for the Left Divider CL .
  • Page 16 Assembly Model # AXCHLL-09-WH Step 9 1. Insert four Wood Dowels 6 into guide holes on Bottom Frame D . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 10 1.
  • Page 17 Assembly Model # AXCHLL-09-WH Step 11 1. Insert two Wood Dowels 6 into guide holes on each Leg BL , BR . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 12 1.
  • Page 18 Assembly Model # AXCHLL-09-WH Step 13 1. Attach six Cam Lock Pins 4 into pre-drilled holes at back of Top A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 19 Assembly Model # AXCHLL-09-WH Step 14 1. Align Wood Dowels with guide holes on Top A and attach Top A . 2. Insert three Cam Locks 4 into guide holes on each each Divider CL , CR .Use Phillips screwdriver to secure Cam Locks. 3.
  • Page 20 Assembly Model # AXCHLL-09-WH Step 15 1. Attach two Bottom Support Legs J align with pre-drilled holes at back of Bottom Frame D . Use Phillips Screwdriver to tighten four Phillips Screws 8 . Step 16 1. Use four Phillips Screws 8 to attach Bottom Frame D through guide holes to each Bottom Shelf G .
  • Page 21 Assembly Model # AXCHLL-09-WH Step 17 Note: Warning Label 1. Use Phillips Screws Round Head 7 to attach Back Panels IL , IR , I1 through guide holes to the back of Sideboard. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. Step 18 1.
  • Page 22 Assembly Model # AXCHLL-09-WH Step 19 1. Attach Adjustable Hinges 13 on Doors HL , HR to Sides BL , BR using Phillips Screws 14 into guide holes on Sides BL , BR . 2. Use Phillips screwdriver to snugly tighten screws. 3.

  • Page 23: Important Note

    Assembly Model # AXCHLL-09-WH IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 24 Assembly Model # AXCHLL-09-WH Step 20 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 9 for each Shelf F in desired location . 2. Two Shelf Supports 9 may be used on back top of each Shelf F as a tipping restraint.
  • Page 25 Assembly Model # AXCHLL-09-WH Step 21 1. Insert assembled drawers into glides on assembled Sideboard.
  • Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 22 NOTE: The screwdriver is not included in the hardware pack.
  • Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
