Summary of Contents for SIMPLIHOME brooklyn+max WyndenHall Hunter AXCHUN-09

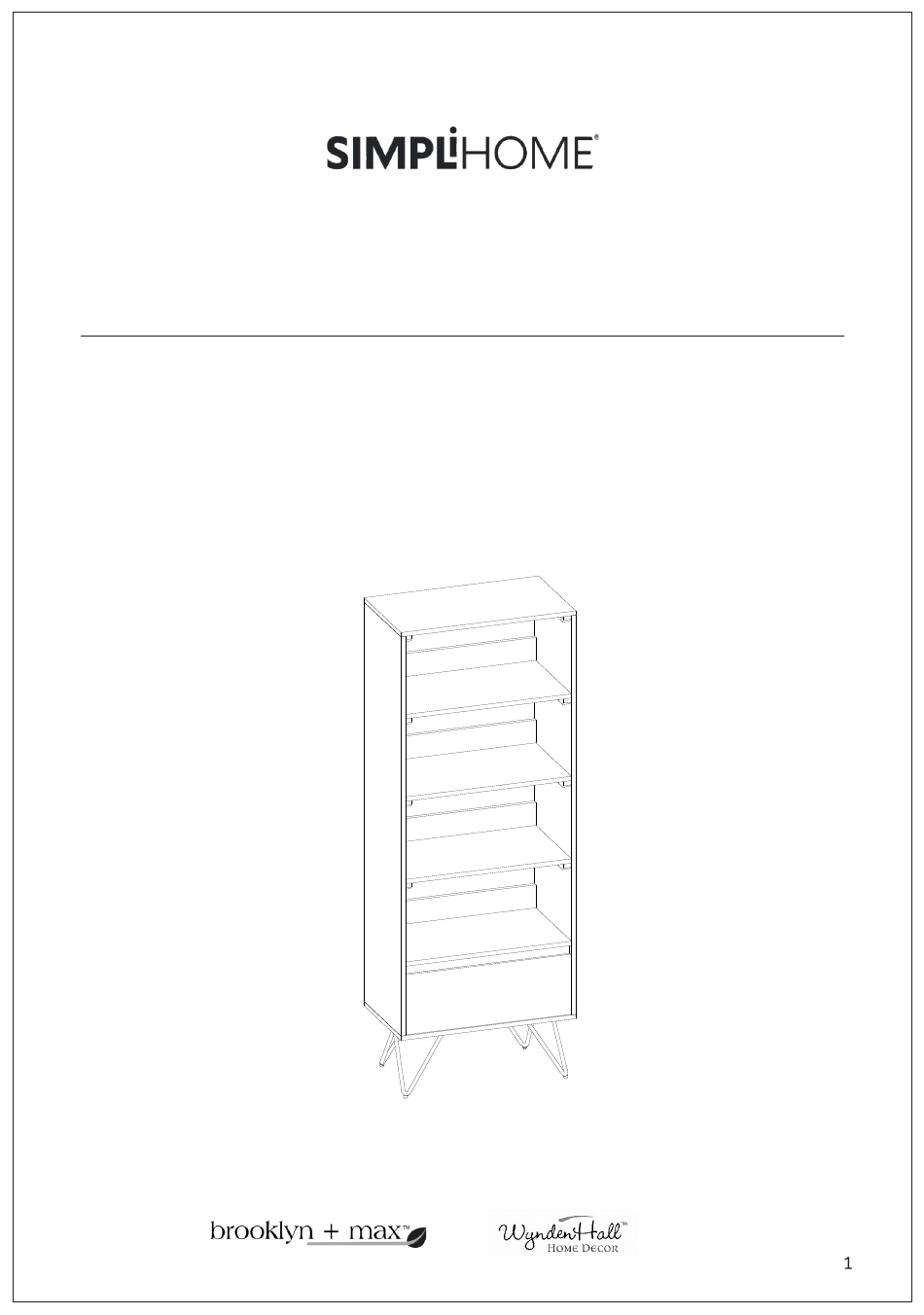

- Page 1 Hunter / Moreno / Diaz Tall Bookcase MODEL # AXCHUN-09...
- Page 7 Model # AXCHUN-09 LEFT PANEL TOP PANEL RIGHT PANEL QTY 1 QTY 1 QTY 1 SHELF DRAWER FRAME QTY 3 QTY 1 QTY 4 ALLEN KEY BOLT ALLEN KEY BOLT WASHER M6 x 25 mm M6 x 15 mm Ø18 x 7 x 2 mm QTY 24 QTY 20 QTY 44...
- Page 8 Model # AXCHUN-09...
- Page 9 Model # AXCHUN-09 Press Clip, to remove drawer from centre rail 1. Place Drawer Frame E on a flat, smooth surface and remove drawer by pressing clip.
- Page 10 Model # AXCHUN-09 Step 2 1. Align holes on Top Panel A and Right Panel C . 2. Attach Right Panel C to Top Panel A using Allen Key Bolts 1 and Washers 3 . 3. Use Allen Key 4 to tighten.
- Page 11 Model # AXCHUN-09 Step 3 1. Align holes on Shelf D and Drawer Frame E with holes on Right Panel C . 2. Attach Shelf D and Drawer Frame E to Right Panel C using Allen Key Bolts 1 , 2 and Washers 3 .
- Page 12 Model # AXCHUN-09 Step 4 1. Align holes on Leg F with holes on Drawer Frame E . 2. Attach Leg F to Drawer Frame E using Allen Key Bolts 2 and Washers 3 . 3. Use Allen Key 4 to tighten 4.
- Page 13 Model # AXCHUN-09 Step 5 1. Insert the drawer into the Drawer Frame.
- Page 14 Model # AXCHUN-09 Step 6...
- Page 15 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture p-over. If the furniture p over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 16 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge o f the furniture. Use the shorter screw. √ 2. Determine where Furniture is to be placed and mark location o n the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
