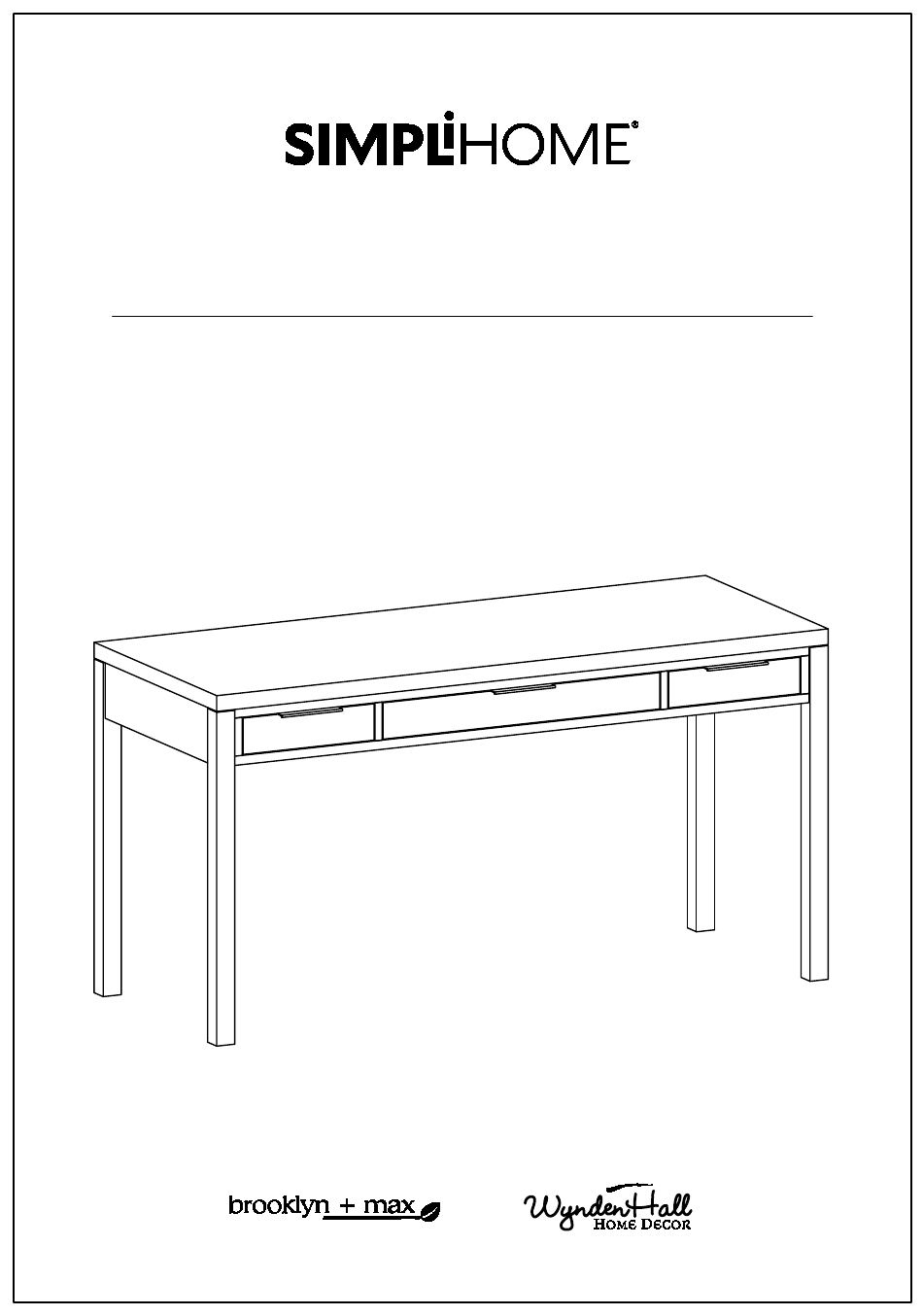

- Page 1 Hollander / Fabian / Auster Desk Model # AXCHLL-10-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Hardware Description
Pre-Assembly Information Model # AXCHLL-10-HIC Part Description QTY 1 QTY 4 Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT M6 x 70 mm Ø10 / Ø6 x 1.5 mm Ø16 / Ø6 x 1 mm QTY 8 QTY 8 QTY 8 PHILLIPS SCREW M3 X 15mm HANDLE... - Page 8 Components - Key Diagram Model # AXCHLL-10-HIC...
- Page 9 Assembly Model # AXCHLL-10-HIC Step 1 1. Remove the drawers from Top A by pressing the locks on the glides.
- Page 10 Assembly Model # AXCHLL-10-HIC Step 2 1. Attach Legs B to Top A . 2. Use two Allen Key Bolts 1 , two Lock Washers 2 and two Washers 3 to secure each part B and A . 3. Use Allen Key 4 to tighten Allen Key Bolts. Do not over-tighten.
- Page 11 Assembly Model # AXCHLL-10-HIC Step 3 1. Use three Phillips Screws 6 to attach each Handle 5 to each Drawer Front.
- Page 12 Assembly Model # AXCHLL-10-HIC Step 4 1. Insert assembled drawers into glides on assembled table.
- Page 13 Assembly Model # AXCHLL-10-HIC Step 5 YOU MUST...
