AT-HDR-CAT-4ED

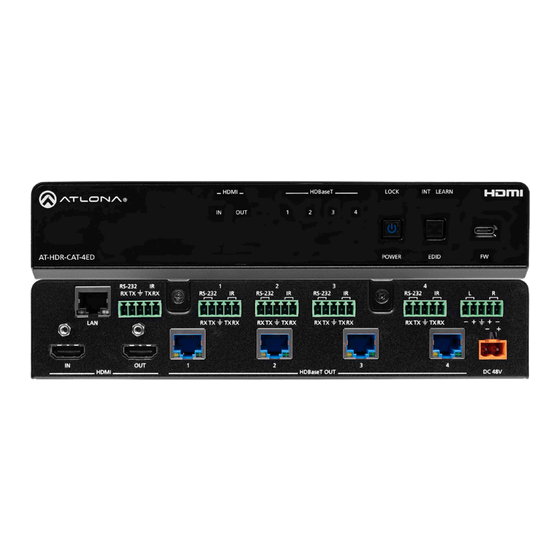

The Atlona AT-HDR-CAT-4ED is a high dynamic range (HDR) distribution amplifier with one
HDMI® input and four extended distance HDBaseT™ outputs. Each output transmits 4K/UHD
video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio,
Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-
CAT-4ED features sophisticated integration capabilities designed for commercial AV distribution
applications including HDMI pass-through, audio de-embedding, EDID management, CEC
display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link
testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in 1U,
half-rack width enclosure with external universal power supply. The HDR-CAT-4ED is ideal for
sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-100CEA-RX receivers.
Package Contents
1 x AT-HDR-CAT-4ED
6 x 5-pin captive screw connectors
1 x 2-pin captive screw connector
1 x 48 V / 2.08 A power supply
1 x AC cord
1 x Long rack ear
1 x Short rack ear
2 x Mounting plates
4 x Mounting screws
4 x Rack screws
4 x Feet w/ rubber grips
IMPORTANT: Visit https://www.atlona.com/product/at-hdr-cat-4ed for the latest firm-
ware updates and User Manual.
1x4 Extended Distance
™
1
Installation Guide
AT-HDR-CAT-4ED
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA AT-HDR-CAT-4ED
Summary of Contents for Panduit ATLONA AT-HDR-CAT-4ED
- Page 1 Distribution Amplifier AT-HDR-CAT-4ED The Atlona AT-HDR-CAT-4ED is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four extended distance HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, Ethernet, control signals, and power up to 330 ft.
-
Page 2: Front Panel Descriptions
Installation Guide AT-HDR-CAT-4ED Front Panel Descriptions HDMI HDBaseT LOCK INT LEARN AT-HDR-CAT-4ED POWER EDID RS-232 AUDIO OUT RS-232 RS-232 RS-232 RS-232 RX TX HDMI Indicators RX TX RX TX RX TX RX TX Displays the status of the HDMI IN and This LED indicator will be blue when the HDMI OUT ports. -
Page 3: Rear Panel Descriptions
Installation Guide AT-HDR-CAT-4ED HDMI HDBaseT LOCK INT LEARN Rear Panel Descriptions AT-HDR-CAT-4ED POWER EDID RS-232 AUDIO OUT RS-232 RS-232 RS-232 RS-232 RX TX RX TX RX TX RX TX RX TX HDMI HDBaseT OUT DC 48V HDMI IN HDBaseT OUT Connect an HDMI cable from this port to a Connect Ethernet cables from these ports source device. - Page 4 Installation Guide AT-HDR-CAT-4ED HDBaseT LOCK INT LEARN Power Locate the included orange captive-screw block, and loosen the screws to allow room to insert the copper wiring. Wire the included power supply to the block, as shown below. Do not use high-torque POWER EDID devices, when securing the wires to the captive-screw terminal block, as this may damage...
-
Page 5: Installation
Installation Guide AT-HDR-CAT-4ED Installation Connect an HDMI cable from a source to the HDMI IN port. Connect an HDMI cable from the HDMI OUT port to a local display. Connect up to four category cables from the HDBaseT OUT ports to compatible PoE- capable receivers. - Page 6 Installation Guide AT-HDR-CAT-4ED IP Configuration The AT-HDR-CAT-4ED is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-HDR-CAT-4ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx/16.
-
Page 7: Accessing The Built-In Web Server
Installation Guide AT-HDR-CAT-4ED Accessing the built-in Web Server The AT-HDR-CAT-4ED includes a built-in web server, which allows easy management and control of all features. Follow the instructions below to access the web server. Make sure that an Ethernet cable is connected between the LAN port on the AT-HDR-CAT- 4ED and the network. -
Page 8: Warranty
Installation Guide AT-HDR-CAT-4ED Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-hdr-cat-4ed/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
