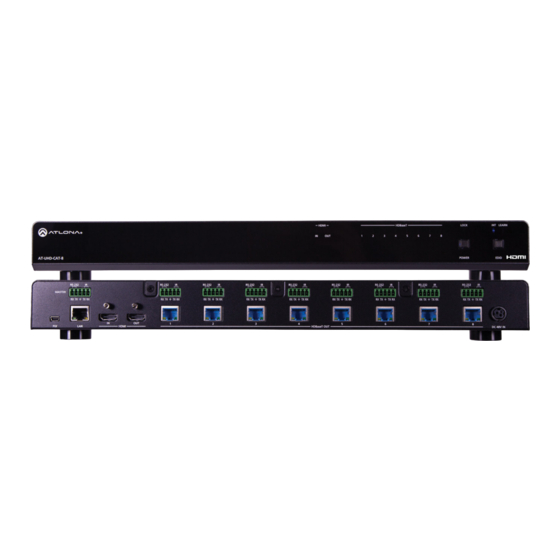

The Atlona AT-UHD-CAT-8 is a 4K/UHD HDMI to HDBaseT distribution amplifier featuring pass-
through HDMI input connections, eight HDBaseT outputs and display control capability. Each
output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/
UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance,
EDID management, and PoE for powering remote receivers. A wide variety of consumer
displays may be controlled by the UHD-CAT-8 using CEC*. Designed for commercial distribution
applications, the UHD-CAT-8 is control system-friendly and integrates with any TCP/IP, RS-232,
or IR control system and features a 1U, full-rack width enclosure with external, international
power supply. Compatible Atlona receiver: AT-UHD-EX-70C-RX.
Package Contents
1 x AT-UHD-CAT-8
1 x IR emitter (AT-IR-CS-TX)
9 x 5-pin captive screw connector
2 x Rack Ears (short)
4 x Screws (MAS-MJ05+10D for Rack Ear)
1 x 48 V / 3.12 A power supply
1 x AC cord
1 x Installation guide
IMPORTANT: Visit http://www.atlona.com/product/AT-UHD-CAT-8 for the latest firmware
updates and User Manual.
Distribution Amplifier
™
1
Installation Guide
AT-UHD-CAT-8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit ATLONA AT-UHD-CAT-8
Summary of Contents for Panduit ATLONA AT-UHD-CAT-8
- Page 1 ™ AT-UHD-CAT-8 The Atlona AT-UHD-CAT-8 is a 4K/UHD HDMI to HDBaseT distribution amplifier featuring pass- through HDMI input connections, eight HDBaseT outputs and display control capability. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/ UHD.
-
Page 2: Front Panel Descriptions
Installation Guide AT-UHD-CAT-8 Front Panel Descriptions HDMI HDBaseT LOCK LEARN AT-UHD-CAT-8 POWER EDID MASTER RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX HDMI HDBaseT OUT DC 48V IN... -
Page 3: Rear Panel Descriptions
Installation Guide AT-UHD-CAT-8 Rear Panel Descriptions HDMI HDBaseT LOCK LEARN AT-UHD-CAT-8 POWER EDID MASTER RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX HDMI HDBaseT OUT DC 48V IN... - Page 4 Installation Guide AT-UHD-CAT-8 RS-232 The AT-UHD-CAT-8 provides five RS-232 ports. The RS-232/IR MASTER port is used to control the AT-UHD-CAT-8 using a control system or other DTE equipment. RS-232/IR 1 through RS- 232/IR 8 ports are used in conjunction with the HDBaseT OUT 1 through HDBaseT OUT 8 ports.
-
Page 5: Installation
Installation Guide AT-UHD-CAT-8 Installation Connect an HDMI cable from a UHD/HD source to the HDMI IN port. Connect an HDMI cable from the HDMI OUT port to a display (sink) device. Connect up to eight Ethernet cables from the HDBaseT OUT ports to compatible PoE- capable receivers. -
Page 6: Accessing The Web Gui
Installation Guide AT-UHD-CAT-8 Accessing the web GUI The AT-UHD-CAT-8 includes a built-in web GUI, which allows easy management and control of all features. Follow the instructions below to access the web GUI. Make sure that an Ethernet cable is connected between the LAN port on the AT-UHD-CAT-8 and the network. -
Page 7: Mounting Instructions
Installation Guide AT-UHD-CAT-8 Mounting Instructions The AT-UHD-CAT-8 can be mounted in a rack using the included rack ears. Attach the included rack ears to each side of the AT-UHD-CAT-8, using the included screws. Secure the unit in the rack, using rack screws (not included). L E A IN T s e T... -
Page 8: Troubleshooting
Installation Guide AT-UHD-CAT-8 Troubleshooting Problem Solution What is the default static • 192.168.1.254. However, by default the AT-UHD-CAT-8 IP address of the AT-UHD- comes with DHCP enabled. To use the static IP address, CAT-8? see the instructions on page 6. How do I determine the IP •... - Page 9 Installation Guide AT-UHD-CAT-8 Notes...
- Page 10 Installation Guide AT-UHD-CAT-8 Notes...
- Page 11 Installation Guide AT-UHD-CAT-8 Notes...
- Page 12 Installation Guide AT-UHD-CAT-8 English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-uhd-cat-8/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
