LSISAS3800X Host Adapter
Quick Installation Guide
Thank you for purchasing the LSISAS3800X Serial Attached SCSI
(SAS) to PCI-X host adapter. Please take a few minutes to read this
Quick Installation Guide before you install the LSISAS3800X.
If you need more information about any topic covered in this guide,
please refer to the other documents on the accompanying LSI Serial
Attached SCSI Device Drivers and Utilities CD.
C O N T E N T S O F L S I S E R I A L A T T A C H E D S C S I
D E V I C E D R I V E R S A N D U T I L I T I E S C D
The LSI host adapter CD contains utility programs, device drivers for
various operating systems, and the following LSI documentation:
•
Serial Attached SCSI (SAS) to PCI-X Host Adapters User's Guide
•
Fusion-MPT™ Device Management User's Guide
•
Host adapter technical product briefs
Q U I C K H O S T A D A P T E R I N S T A L L A T I O N
To install the LSISAS3800X host adapter, follow these steps:
Step 1
Unpack the host adapter and inspect it for damage.
Unpack the host adapter in a static-free environment.
Remove the host adapter from the antistatic bag and
inspect it for damage. If it appears to be damaged, or if
any component is missing, contact LSI or your reseller
support representative.
Make a backup of your data before changing your
!
system configuration.
CAUTION
Step 2
Prepare the computer.
Turn off the computer and remove the power cord from
the back of the power supply. Remove the cover from the
chassis.
Be certain to disconnect the computer from the power
!
supply and from any networks before installing the
CAUTION
controller card.
Step 3
Insert the LSISAS3800X in an available PCI/PCI-X
slot.
Locate an empty PCI/PCI-X slot. Remove the blank
bracket panel on the back of the computer that is aligned
with the PCI/PCI-X slot you have selected. Save the
bracket screw when present.

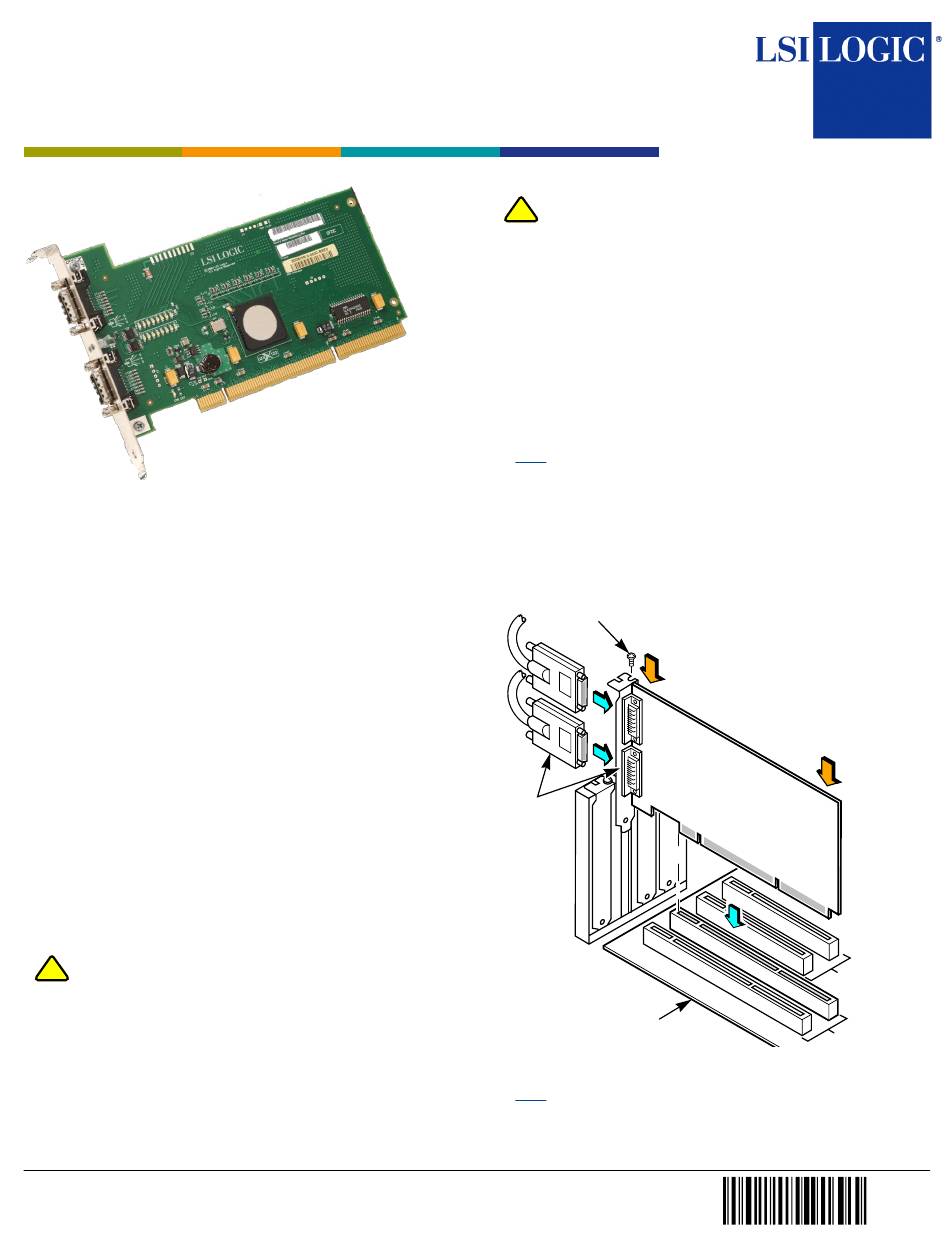

Align the host adapter with a PCI/PCI-X slot. Press down
gently but firmly to properly seat the host adapter in the
slot. The following figure illustrates how to insert the host
adapter in a PCI/PCI-X slot.
Note:
The LSISAS3800X is keyed for a 3.3 V slot. The keying
of edge connector J1 prevents the card from being
installed in a 5 V slot.
Step 4
Secure the bracket to the system chassis.
Install the bracket screw, when present, or engage the
system's retention mechanism to secure the host
adapter to the system's chassis.
Bracket
Screw
Press Here
Two
4-Lane
External
PCB
Receptacles
and Cables
with
Jackscrews
SFF-8470
Edge of
Host Board
Note:
The host adapter shape, size, and locations of
components may vary from this illustration.
Press Here
32-Bit Slots
(3.3 V Only)
64-Bit Slots
(3.3 V Only)
8 0 - 0 0 1 2 2 - 0 1
