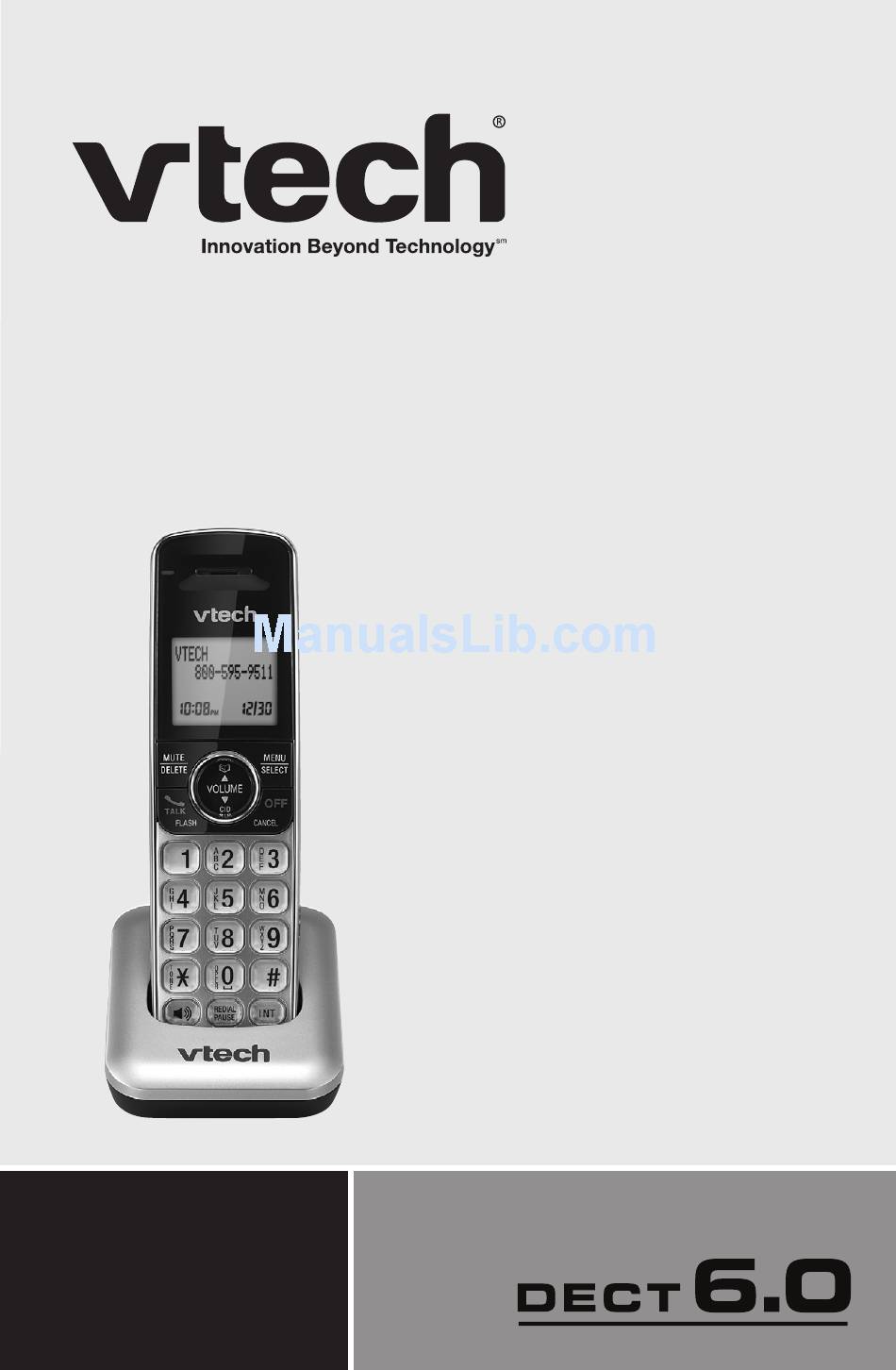

- Page 1 User’s manual Accessory handset for use with VTech models CS6419/CS6428/CS6429 www.vtechphones.com Model: CS6409...
- Page 2 VTech product. Before using this telephone, please read Important safety instructions on pages 9-10 of this manual. This manual has instructions on how to set up and register your new handset. For complete instructions on using the handset, see the user’s manual that came with your telephone base.
-
Page 3: Table Of Contents
Table of contents Getting started ...1 Parts checklist ...1 Battery installation ...2 Battery charging ...3 Add and register a handset ...4 Replace a handset...5 Handset layout ...6 Appendix ...8 Battery ...8 Important safety instructions...9 Precautions for users of implanted cardiac pacemakers ...11 Operating range...11 Maintenance ...12 About cordless telephones ...13... -
Page 4: Getting Started
Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in case it is necessary to ship your telephone for warranty service. Battery compartment cover Charger and charger adapter To purchase a replacement battery or power adapters, visit our website at www.vtechphones.com or call 1 (800) 595-9511. -
Page 5: Battery Installation
Getting started Battery installation Install the battery as shown below. Plug the battery connector securely into the socket inside the handset battery compartment. Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. Align the cover flat against the battery compartment, then slide it towards the center of the handset until it clicks into place. -
Page 6: Battery Charging
Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. -
Page 7: Add And Register A Handset
Getting started Add and register a handset Each new handset (CS6409) must be registered with the telephone base before use. When first purchased, each expansion handset shows 1.PRESS FIND HS ON BASE 4 SEC and 2.THEN PRESS # ON HANDSET alternately. You may need to charge the handset before registering it to the telephone base. -
Page 8: Replace A Handset
Getting started Replace a handset If you want to replace a handset or reassign the designated handset number of a registered handset, you must deregister all the handsets and then individually register each handset. To make deregistration easier, read all of the instructions below before you begin. -
Page 9: Handset Layout
Getting started Handset layout CHARGE light On when the handset is charging in the telephone base or charger. /VOLUME Press to enter the directory when the telephone is not in use. Press to scroll up while in a menu, or in the directory, call log or redial list. - Page 10 Getting started Handset layout INT (intercom) Press to start an intercom conversation or transfer a call. REDIAL/PAUSE Press to review the redial list. While dialing or entering numbers into the directory, press and hold to insert a dialing pause. CID /VOLUME Press to review the call log when the telephone is not in use.
-
Page 11: Appendix
Appendix Battery It takes up to 10 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance: Operation While in handset use (talking*) While in speakerphone mode (talking*) While not in use (standby**) *Operating times vary depending on your actual use and the age of the battery. -
Page 12: Important Safety Instructions
Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. - Page 13 Appendix Important safety instructions (continued) Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced in its cradle.
-
Page 14: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients Should keep wireless telephones at least six inches from the pacemaker. -
Page 15: Maintenance
Appendix Maintenance Taking care of your telephone • Your telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. -
Page 16: About Cordless Telephones
RBRC service centers. Please call 1 (800) 8 BATTERY recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. -
Page 17: Limited Warranty
Limited warranty What does this limited warranty cover? The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. - Page 18 Product under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or...
-
Page 19: Other Limitations
In no event shall VTech be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the Product or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this Product. -
Page 20: Fcc, Acta And Ic Regulations
Appendix FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. - Page 21 Appendix FCC, ACTA and IC regulations (continued) Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
-
Page 22: Technical Specifications
Appendix FCC, ACTA and IC regulations (continued) Industry Canada Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation. The term ‘’IC:‘’... - Page 23 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon. 97008. Distributed in Canada by VTech Technologies Canada Ltd., Richmond, B.C. V6W 1L5. Copyright © 2010 for VTECH TELECOMMUNICATIONS LTD.
