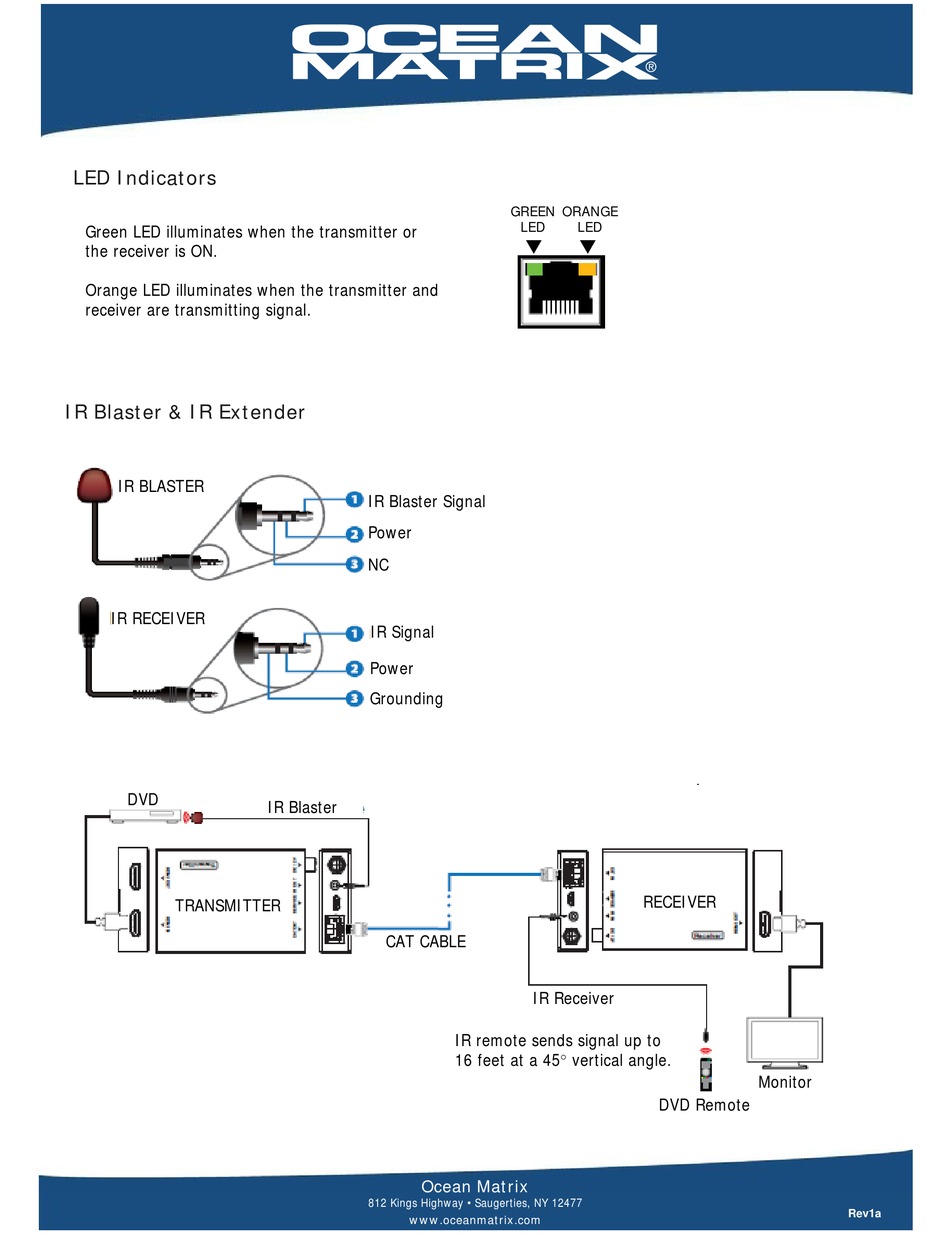

LED Indicators
Green LED illuminates when the transmitter or
the receiver is ON.
Orange LED illuminates when the transmitter and
receiver are transmitting signal.
IR Blaster & IR Extender
IR BLASTER
IR RECEIVER
DVD
TRANSMITTER
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
IR Blaster
CAT CABLE
Ocean Matrix
812 Kings Highway • Saugerties, NY 12477
www.oceanmatrix.com
GREEN
ORANGE
LED
LED
IR Receiver
IR remote sends signal up to
16 feet at a 45 vertical angle.
RECEIVER
Monitor
DVD Remote
Rev1a
