Ocean Matrix OMX-01HMBT0009 Installation & Specifications

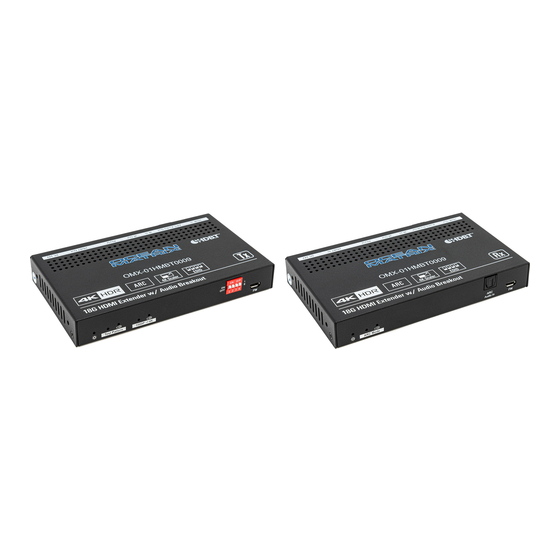

OMX-01HMBT0009 HDBaseT 4K HDMI Extender Set
1 2 3
6 7
1 Power LED Indicator
2 Test Pattern-Push Button with
paperclip to enable. Left LED turns
blue & generates an image of
1080P/60Hz color bar to output.
Press again, LED flashes and gen-
erates an image of 4K/60Hz 4:4:4
color bar. Press & hold to exit.
3 1080P-4K –Push Button with pa-
perclip to enable upscaling. LED
will be blue. Press & hold to exit
4 EDID-4-Pin Dip Switch. See EDID
Management to set.
5 Factory Use Only

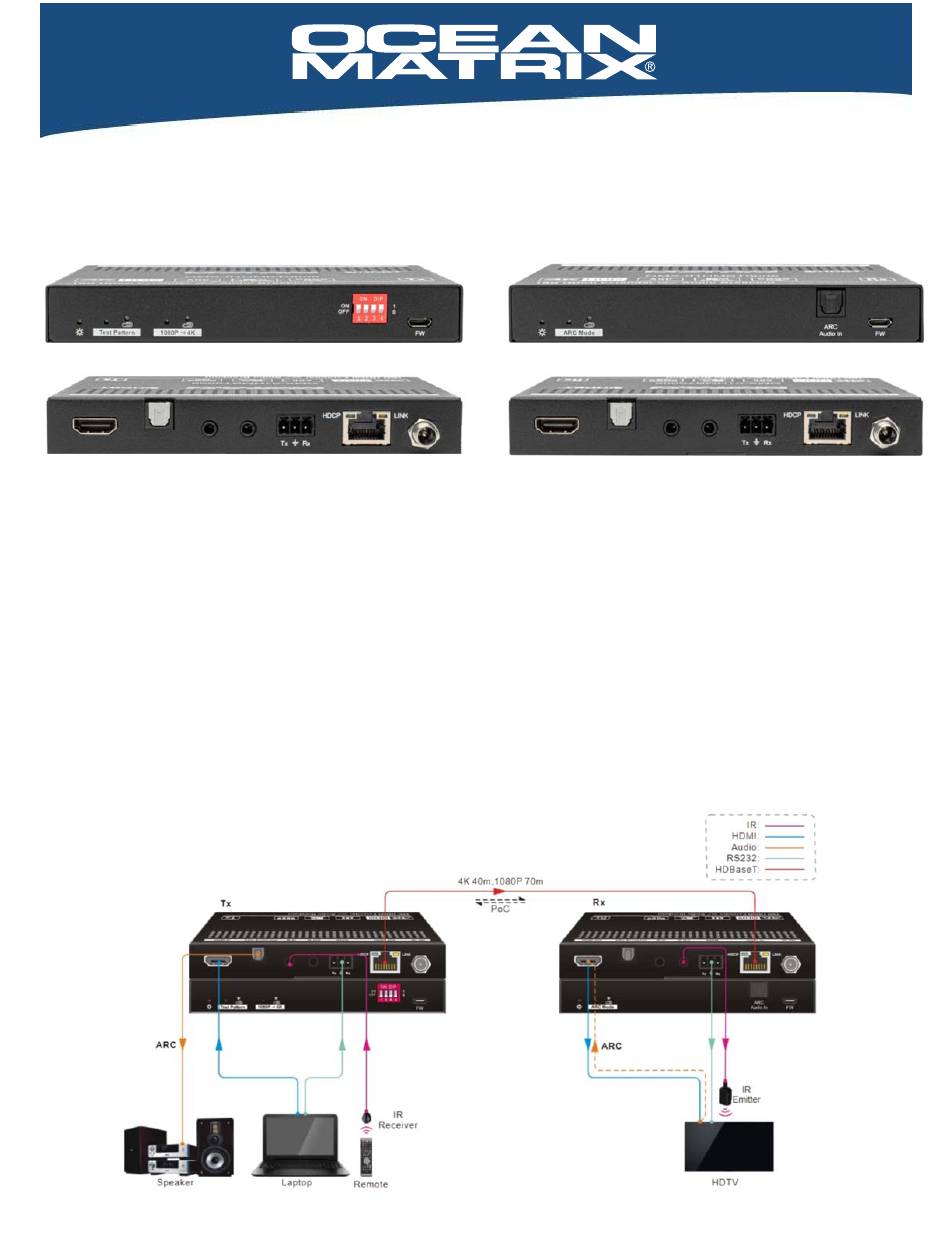

Typical Application
INSTALLATION & SPECIFICATIONS
Transmitter
4
8 9 10 11
6 HDMI IN—Connect to Source
7 ARC TOSLINK OUT-Connect
speaker or amplifier
8 IR IN—Connect RX
9 IR OUT-Connect IR Emitter
10 RS232-3Pin Terminal Block
11 HDBT OUT: Connect to RX.
LINK LED turns orange when
link is made and HDCP LED
turns green to indicate HDCP
12 Plug in AC Power Supply
5 1 2
12 5
1 Power LED Indicator
2 ARC Mode-Push Button with
paperclip to enable. Left LED
turns blue. Press again to exit.
3 ARC Audio In-Connect audio
source
4 Factory Use Only
Ocean Matrix
www.oceanmatrix.com
Receiver
6 7 8 9
5 HDMI OUT-Connect Display
6 Audio Breakout-ARC TOSLINK Mode
must be off for audio de-embedding.
There is no audio output at this
port when ARC Mode is ON.
7 IR IN-Connect RX
8 IR OUT-Connect IR Emitter
9 RS232-3Pin Terminal Block
10 HDBT IN-Connect to TX. LINK LED
turns orange when link is made and
HDCP LED turns green to indicate
HDCP
11 Plug in AC Power Supply
3 4
10 11
