CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Features & Benefits: 5-in-1....... 3
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Setup ........................ 8
Set the Time, Date & Units ...... 9
Backlight Settings ................... 9
Placement Guidelines ............10
5-in-1 Sensor Installation........ 11
Using the Weather Center .....12
Questions?
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

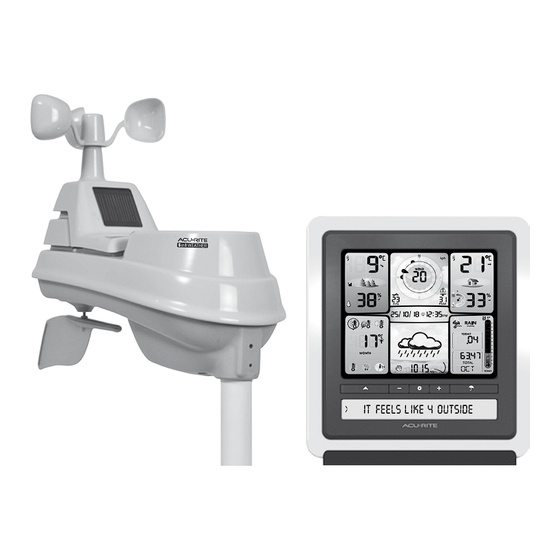

Professional Weather Center
model 02064CAUDI / 39030
PC Connect...........................13
Weather Underground ..........13
Rainfall Tracking ...................14
Weather Ticker .....................15
Troubleshooting ....................16
Care & Maintenance.............19
Calibration ...........................19
Specifications........................21
FCC Information .................. 22
Customer Support ................ 23
Warranty............................. 23
Contact Customer Support at
Instruction Manual
Advertisement
Table of Contents
Related Manuals for ACU-RITE 02064CAUDI
Summary of Contents for ACU-RITE 02064CAUDI
-
Page 1: Table Of Contents
Instruction Manual Professional Weather Center model 02064CAUDI / 39030 CONTENTS PC Connect......13 Unpacking Instructions ... 2 Package Contents ....2 Weather Underground ..13 Features & Benefits: 5-in-1..3 Rainfall Tracking ....14 Features & Benefits: Display..4 Weather Ticker .....15 Setup ........7 Troubleshooting ....16... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -
Page 4: Features & Benefits: Display
Features & Benefits Display 2 3 4 5 6... - Page 5 1. Previous 2 Wind Directions 18. Barometric Pressure Arrow icon indicates direction 2. Backlight Button pressure is trending. For momentary backlight and 19. “ “ Button dimmer settings. Changes the rainfall data being 3. Current Wind Speed displayed (#17). 4. Current Wind Direction 20.
- Page 6 Back of Display DEVICE ID ############ BACK OF DISPLAY CLEAR RECORD / RESET Button 1. Plug-in for Power Adapter Press to clear data recorded 2. Plug-in for USB Cable since 12:00 am. Press and HOLD 3. Integrated Hang Hole for full reset to factory defaults. For easy wall mounting.
-
Page 7: Setup
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch cause alkaline batteries to function improperly. Use lithium batteries in Locate the A-B-C switch inside the the 5-in-1 sensor for temperatures battery compartment. Set the A-B-C below -20ºC/ -4ºF. switch to A, B or C. You must select 1. -
Page 8: Display Setup
Display Setup Set the A-B-C Switch Write Down the DEVICE ID The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and Install or Replace Backup... -
Page 9: Set The Time, Date & Units
Set the Time, Date & Units Press the “ ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “... -
Page 10: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. Display Placement Place the display in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 11: 5-In-1 Sensor Installation
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 1.5 meters (5 feet) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 10 meters (33 feet) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 45mm x 95mm (2”x 4”) or... -
Page 12: Using The Weather Center
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 13: Pc Connect
PC Connect PC Connect works with Windows PC’s to provide access to your Weather Center data in the following ways: • Data File: The display logs (or stores) data so that you can download it to a CSV (comma separated values) data file on your PC. •... -
Page 14: Rainfall Tracking
Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is displayed for the current day, week, or month (most recent rainfall total). The rain indicator illustrates today’s rain collection up to 25 mm (1 inch). Press the “... -
Page 15: Weather Ticker
Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WIND CHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE TODAY’S HIGH HUMIDITY...OUTDOOR XX / INDOOR XX TODAY’S LOW HUMIDITY...OUTDOOR XX / INDOOR XX TODAY’S HIGH TEMP...OUTDOOR XX / INDOOR XX... -
Page 16: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 100 m (330 ft) of each other. • Make sure both units are placed at least .9 m (3 feet) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 17 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 10). Inaccurate • Make sure both units are positioned away from moisture sources (see page 10). temperature or humidity •...
- Page 18 Troubleshooting Problem Possible Solution • Verify under Status that data was received from the indoor display. The timestamp should update every 18-36 seconds. • Verify that you created an account or logged into an existing account at www.MyAcuRite.com or in the AcuRite app, and that you input the display’s DEVICE ID as a part of the account setup.
-
Page 19: Care & Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth. - Page 20 *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “ ” button for 5-7 seconds. The display indicates the current pressure mode selected, “AUTO” or “MANUAL”. The “ ” icon will appear next to the barometric pressure to indicate that MANUAL mode has been activated.
-
Page 21: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºC to 70ºC; -40ºF to 158ºF Indoor: 0ºC to 50ºC; 32ºF to 122ºF HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% WIND SPEED 0 to 159 kph; 0 to 99 mph WIND DIRECTION 16 points INDICATORS 0.25 mm (0.01 inches) and up RAINFALL... -
Page 22: Fcc Information
FCC Information This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1- This device may NOT cause harmful interference, and 2- This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 23: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 AcuRite Visit us at www. .com Installation Videos Support User Forum... - Page 24 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 02064CAUDI INST 051216 Visit www.AcuRite.com/patents for details.
