Instruction Manual Professional Weather Center model 02032C / 888143 CONTENTS Unpacking Instructions ... 2 Set the Time, Date & Units ..11 Package Contents ....2 Backlight Settings ....11 Product Registration ....2 Placement Guidelines ....12 5-in-1 Sensor Installation..13 Features &... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. -
Page 3: Features & Benefits: 5-In-1

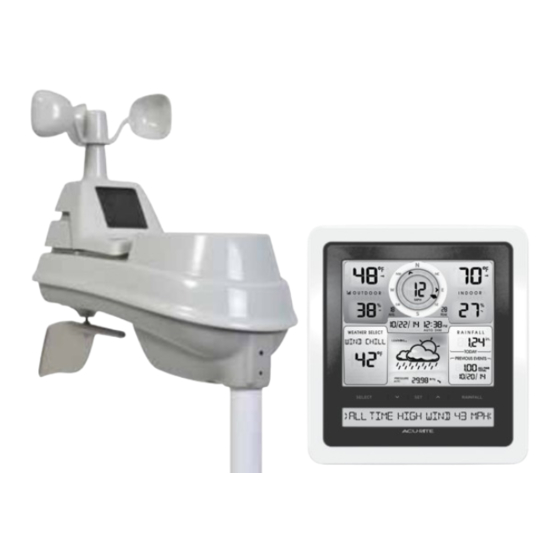

Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9. -
Page 4: Features: Display Unit
Features & Benefits Display Unit 1 2 3 4 1... - Page 5 1. Previous 2 Wind Directions 21. SELECT Button Press to change the WEATHER 2. Backlight Button SELECT category data being For momentary backlight and displayed. dimmer settings. 22. Weather Ticker 3. Current Wind Speed 23. Heat Index/ Wind Chill Alert 4.
-
Page 6: Back Of Display Unit
Back of Display Unit ############ BACK OF DISPLAY UNIT CLEAR RECORD/ RESET Press to clear record currently 1. Plug-in for Power Adapter being viewed. Press and HOLD for full reset to factory defaults. 2. Plug-in for USB Cable 8. Power Adapter 3. -
Page 7: Setup
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch cause alkaline batteries to function improperly. Use lithium batteries in Locate the A-B-C switch inside the the 5-in-1 sensor for temperatures battery compartment. Set the A-B-C below -4ºF / -20ºC. switch to A, B or C. You must select 1. -
Page 8: Display Unit Setup
Display Unit Setup Set the A-B-C Switch Write Down the MAC ADDRESS The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, 24 C8 6E you must select the same letter choices for both the sensor and... -
Page 9: Pc Connect For Windows Overview
PC Connect for Windows Overview PC Connect for Windows lets you access your Weather Center data in the following ways: Data File: Display unit logs (or stores) data so that you can download it to a PC in a data file (CSV, or comma-separated values file). PC Weather Widget: View data on your PC’s screen as a widget. -
Page 10: Pc Connect For Windows Software
Download the PC Connect for Windows Software The PC Connect for Windows software is available online as a free download. An instruction manual for PC Connect for Windows is included (PDF file) when you download the software. Read the manual to learn how to setup PC Connect for Windows preferences and features. -
Page 11: Set The Time, Date & Units
Set the Time, Date & Units Press the “ SE T ” button, located on the front of the display unit, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “... -
Page 12: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product. Display Unit Placement Place the display unit in a dry area free of dirt and dust. To ensure accurate temperature measurement, place out of direct sunlight and away from heat sources or vents. -
Page 13: 5-In-1 Sensor Installation
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements- the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw... -
Page 14: Using The Weather Center
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 15: Rainfall Tracking
Rainfall Tracking This weather station features enhanced tracking of historical rainfall data. Rain accumulation data is recorded for today, over all-time, by year, by month, and by rainfall event. Press the “RAINFALL” button to review rainfall records. The icon is shown on the display while historical data is being viewed. -
Page 16: Weather Ticker
Weather Ticker ™ The Weather Ticker automatically flashes your real-time weather information and alerts as text in the lower part of the display unit screen. The possible WEATHER TICKER messages are as follows: HEAT INDEX-XX WINDCHILL-XX DEW POINT-XX IT FEELS LIKE XX OUTSIDE 7 DAY HIGH TEMP. -
Page 17: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display unit and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 18 Troubleshooting Problem Possible Solution • Make sure both the display unit and 5-in-1 sensor are placed away from any heat sources or vents (see page 12). Inaccurate • Make sure both units are positioned away from moisture sources (see page 12). temperature or humidity •...
- Page 19 Troubleshooting Problem Possible Solution • Confirm the status readout in PC Connect for Windows software on your PC indicates that data was uploaded OK. • Make certain you created an account or logged into your existing account on www.acu-link.com, and that you have setup your display unit MAC ADDRESS online, as well.
-
Page 20: Care & Maintenance
Care & Maintenance Display Unit Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. 5-in-1 Sensor Care Clean the Sensor Clean with a soft damp cloth. - Page 21 INDOOR TEMPERATURE INDOOR HUMIDITY BAROMETRIC PRESSURE (must be set to MANUAL mode to calibrate)* *To change from AUTO to MANUAL pressure mode and vice versa, press AND HOLD the “SET” button for at least 10 seconds. The display indicates the current pressure mode selected,“AUTO” or “MANUAL”. After 20 seconds of inactivity, the display will save the adjustments and exit calibration mode.
-
Page 22: Specifications
Specifications TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Indoor: 32ºF to 122ºF; 0ºC to 50ºC HUMIDITY RANGE Outdoor: 1% to 99% Indoor: 1% to 99% WIND SPEED 0 to 99 mph; 0 to 159 kph WIND DIRECTION 16 points INDICATORS RAINFALL 0 to 393 in;... -
Page 23: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: (877) 221-1252 info@chaney-inst.com AcuRite 24/7 support at www. .com Installation Videos Register your Product... - Page 24 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 02032C INST 022415 Visit www.AcuRite.com/patents for details.
