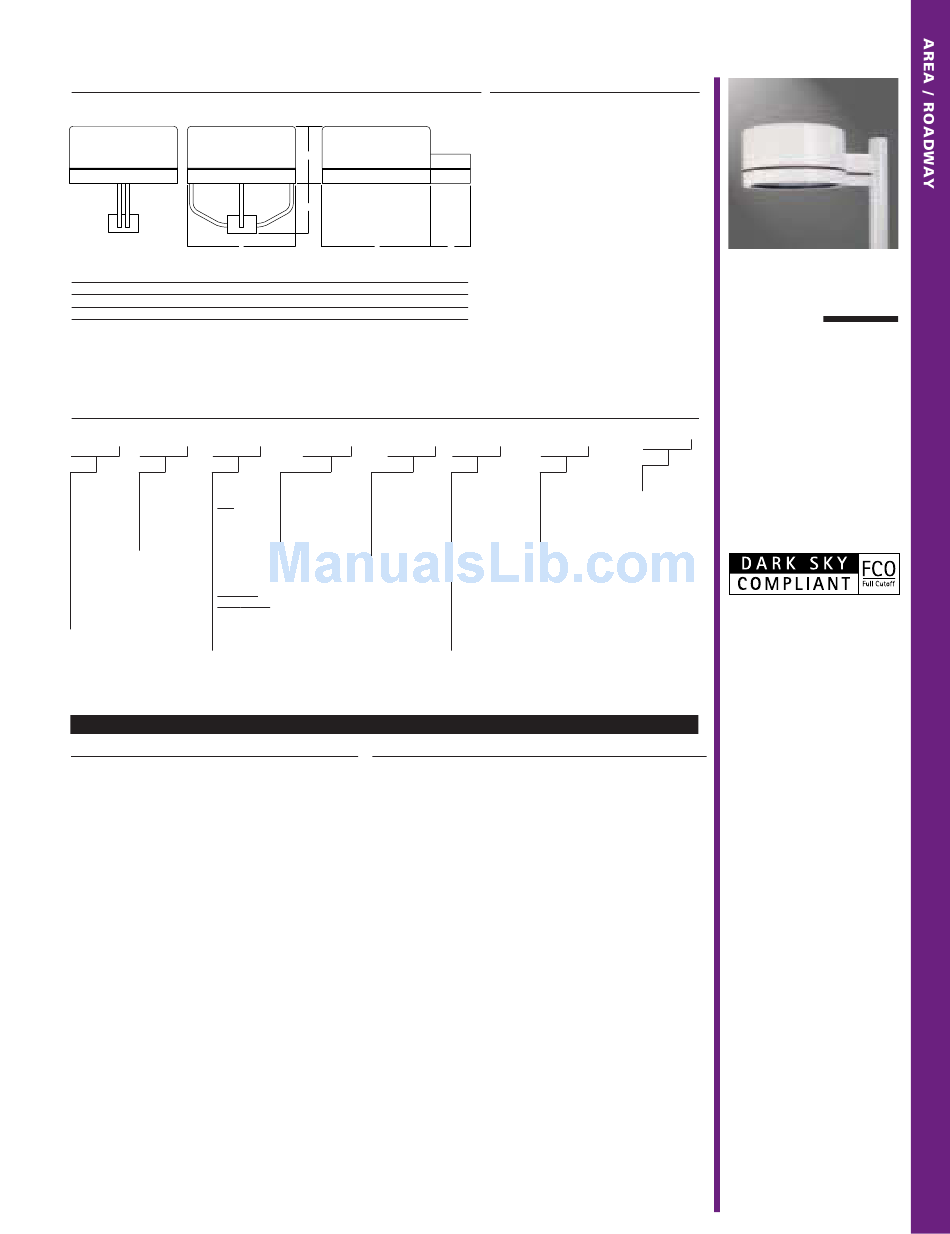

Cooper Lighting CI Cirrus Specification Sheet

D I M E N S I O N S
Y O K E M O U N T S P I D E R M O U N T
A
Fixture A B
CIS/CIG 20 1/2" [521mm] 10 1/4" [260mm]
CIM 24" [610mm] 12 1/8" [308mm]
CIL 28" [711mm] 14 1/4" [362mm]
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : C I M - A M - 4 0 0 - M H - M T- 5 F - B K
Product Mounting Lamp
Family Method Wattage
CIS=Cirrus AM=Arm HID
Small Mount 70=70W
Solid YM=Yoke 100=100W
Top Mount 3 150=150W
CIG=Cirrus SM=Spider 175=175W
Small Mount 250=250W
Luminous for 3" 400=400W
Top 1 O.D. 1000=1000W
CIM=Cirrus Tenon 3 Compact
Medium Fluorescent
Solid Top 26=26W
CIL=Cirrus 32=32W
Large 42=42W
Solid Top 2 57=57W
E.P.A. CIS & CIG: Arm Mount 1.19, Spider & Yoke Mount 1.13 / CIM: Arm Mount 1.70, Spider & Yoke Mount 1.52
CIL: Arm Mount 2.36, Spider & Yoke Mount 2.10
Options 14
F=Single Fuse (120, 277 or 347V)
FF=Double Fused (208, 240 or 480V)
P=Button Type Photocontrol (Specify Voltage)
R=NEMA Twistlock Photocontrol Receptacle
HS=House-side Shield
VS=Vandal Shield 16
L=Lamp Included
NOTES: 1 Segmented optics not available. Available in 120 or 277V only. 2 Segmented optics not available. 3 Requires 4" round straight pole for CIS. 5" round straight
pole for CIG and CIM. 6" round straight pole for CIL. 4 All 70-150W lamps on formed optics and 70-175W lamps on small segmented optics are medium-base,
175-1000W are mogul-base. 5 150W HPS uses S-55 lamp (arc rating of 55V). 6 Must use reduced jacket ED-28 400W lamp when using a segmented optical system
in the medium housing. 7 1000W HPS not available in medium housing. Medium housing requires BT-37 lamp for Metal Halide and only available with formed
optics. 8 Available in Type III, IV and V distributions in small, solid top housing with segmented optics only. 9 Nominal length not to exceed 7". 10 Product also
available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 11 Multi-Tap ballast is 120/208/240/277V
wired 277V. Triple-Tap ballast is 120/277/347V wired 347V. 12 Medium housing fixture only. 13 Other finish colors available, including a full line of RAL color
matches. Consult your Cooper Lighting Representative. 14 Add as suffix in the order shown. 15 Not available for CIG. 16 400W Maximum. 17 Order separately, replace
XX with color suffix. 18 Not for use with 250W HPS. 19 Specifications and dimensions subject to change without notice.
A R M M O U N T
B
C
A
C D
11" [279mm] 6" [152mm]
12 5/8" [321mm] 7 1/2" [191mm]
16" [406mm] 9" [229mm]
Lamp Type Voltage 10
4 MH=Metal 120=120V
Halide 208=208V
HPS=High 240=240V
Pressure 277=277V
5 Sodium 480=480V
CF=Compact MT=Multi-Tap
Fluorescent 8, 9 TT=Triple-Tap
6
7
Accessories 17
OA/RA1016=NEMA Photocontrol/Multi-Tap—Multi-Tap
OA/RA1027=NEMA Photocontrol/Multi-Tap—480V
15 MA1001XX=Wall Bracket for Solid Top
15 MA1003XX=Wall Bracket for Luminous Top
D E S C R I P T I O N
The Cirrus series sets the standard
in flexibility for architectural area
lighting. The Cirrus is available in
three (3) sizes, so a single look can
be carried through diverse areas
of a project. Combined with three
(3) mounting varieties, MH or HPS
lamps, ten (10) optical packages
and numerous colors, the Cirrus
D offers unparalleled variety in one
family of fixtures. U.L. listed and
CSA certified for wet locations.
The Cirrus offers features so
versatile that it can be used in
small areas such as walkways and
large areas like parking lots, while
maintaining a look of continuity
throughout.
Distribution Color 13
1F=Type I (add as suffix/
Formed 12 must specify)
2F=Type II BK=Black
Formed BZ=Bronze
2S=Type II AP=Grey
11 Segmented WH=White
11 3F=Type III DP=Dark Platinum
Formed GM=Graphite Metallic
3S=Type III
Segmented
4S=Type IV Segmented
5F=Type V Formed
5S=Type V Segmented
FT=Forward Throw
SL=Spill Light Eliminator 6
18
MCGRAW-EDISON
2 6 - 5 7 W
C o m p a c t F l u o r e s c e n t
7 0 - 1 0 0 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
Options &
A R C H I T E C T U R A L
Accessories
A R E A L U M I N A I R E
(See Below)
In Solid Top Configurations only.
• Spun-aluminum top is
finished in premium TGIC
polyester powder coat
• Long life core-and-coil
HID ballast is hard
mounted for cooler
operation. Pole mounted
ballast assembly for
luminous units only
• Controlled and fully
rotatable optics offer
ten (10) distinct beam
patterns. Precision
hydroformed or premium
segmented optical
modules available
• Die-cast aluminum door
frame has concealed
hinges and is flush with
the bottom of the
housing
• Thermal shock- and
impact-resistant clear
tempered flat glass
• Variety of arm, spider,
yoke or wall mounting
configurations
• U.L. listed for wet
locations. CSA certified
• Approximate net weight:
65 lbs. (29 kgs.)
COOPER LIGHTING
®
CI
CIRRUS
1165
