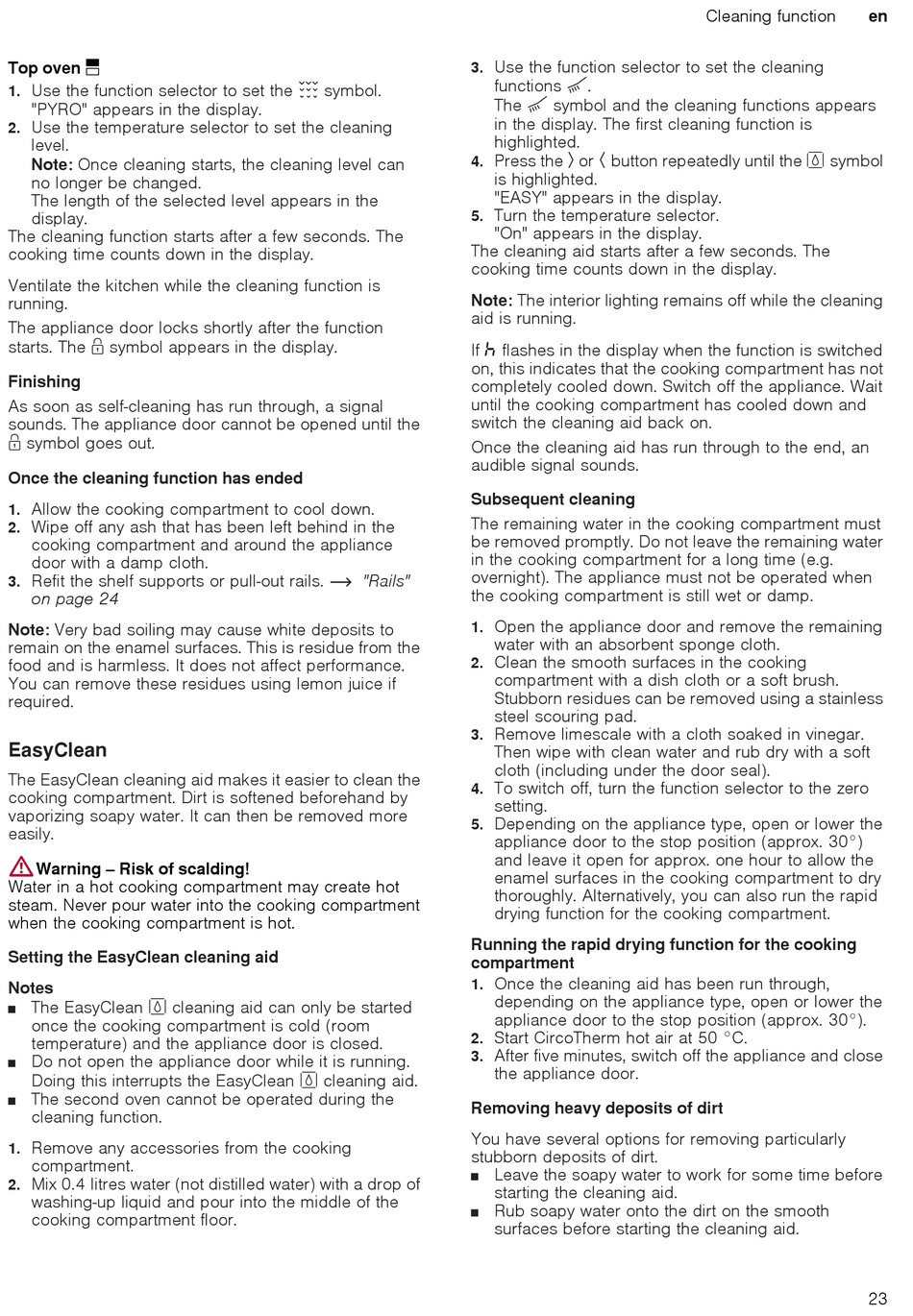

Easyclean - NEFF U2ACM7HH0B Instruction Manual

q
Top oven
Use the function selector to set the
1.
"PYRO" appears in the display.
Use the temperature selector to set the cleaning
2.
level.
Note: Once cleaning starts, the cleaning level can
no longer be changed.
The length of the selected level appears in the
display.
The cleaning function starts after a few seconds. The
cooking time counts down in the display.
Ventilate the kitchen while the cleaning function is
running.
The appliance door locks shortly after the function
starts. The symbol appears in the display.
5
Finishing
As soon as self-cleaning has run through, a signal
sounds. The appliance door cannot be opened until the
symbol goes out.
5
Once the cleaning function has ended
Allow the cooking compartment to cool down.
1.
Wipe off any ash that has been left behind in the
2.
cooking compartment and around the appliance
door with a damp cloth.
Refit the shelf supports or pull-out rails. ~ "Rails"
3.
on page 24
Note: Very bad soiling may cause white deposits to
remain on the enamel surfaces. This is residue from the
food and is harmless. It does not affect performance.
You can remove these residues using lemon juice if
required.

EasyClean

The EasyClean cleaning aid makes it easier to clean the
cooking compartment. Dirt is softened beforehand by
vaporizing soapy water. It can then be removed more
easily.
:
Warning – Risk of scalding!
Water in a hot cooking compartment may create hot
steam. Never pour water into the cooking compartment
when the cooking compartment is hot.
Setting the EasyClean cleaning aid
Notes
The EasyClean cleaning aid can only be started
š
■
once the cooking compartment is cold (room
temperature) and the appliance door is closed.
Do not open the appliance door while it is running.
■
Doing this interrupts the EasyClean
The second oven cannot be operated during the
■
cleaning function.
Remove any accessories from the cooking
1.
compartment.
Mix 0.4 litres water (not distilled water) with a drop of
2.
washing-up liquid and pour into the middle of the
cooking compartment floor.
3.
symbol.
˜
4.
5.
The cleaning aid starts after a few seconds. The
cooking time counts down in the display.
Note: The interior lighting remains off while the cleaning
aid is running.
If
on, this indicates that the cooking compartment has not
completely cooled down. Switch off the appliance. Wait
until the cooking compartment has cooled down and
switch the cleaning aid back on.
Once the cleaning aid has run through to the end, an
audible signal sounds.
Subsequent cleaning
The remaining water in the cooking compartment must
be removed promptly. Do not leave the remaining water
in the cooking compartment for a long time (e.g.
overnight). The appliance must not be operated when
the cooking compartment is still wet or damp.
1.
2.
3.
4.
5.
Running the rapid drying function for the cooking
compartment
1.
2.
3.
cleaning aid.
š
Removing heavy deposits of dirt
You have several options for removing particularly
stubborn deposits of dirt.
■
■
Use the function selector to set the cleaning
functions .
2
The 2 symbol and the cleaning functions appears
in the display. The first cleaning function is
highlighted.
Press the or button repeatedly until the
) (
is highlighted.
"EASY" appears in the display.
Turn the temperature selector.
"On" appears in the display.
flashes in the display when the function is switched
œ
Open the appliance door and remove the remaining
water with an absorbent sponge cloth.
Clean the smooth surfaces in the cooking
compartment with a dish cloth or a soft brush.
Stubborn residues can be removed using a stainless
steel scouring pad.
Remove limescale with a cloth soaked in vinegar.
Then wipe with clean water and rub dry with a soft
cloth (including under the door seal).
To switch off, turn the function selector to the zero
setting.
Depending on the appliance type, open or lower the
appliance door to the stop position (approx. 30°)
and leave it open for approx. one hour to allow the
enamel surfaces in the cooking compartment to dry
thoroughly. Alternatively, you can also run the rapid
drying function for the cooking compartment.
Once the cleaning aid has been run through,
depending on the appliance type, open or lower the
appliance door to the stop position (approx. 30°).
Start CircoTherm hot air at 50 °C.
After five minutes, switch off the appliance and close
the appliance door.
Leave the soapy water to work for some time before
starting the cleaning aid.
Rub soapy water onto the dirt on the smooth
surfaces before starting the cleaning aid.
Cleaning function
en
symbol
š
23
