Wall Mount Wi-Fi

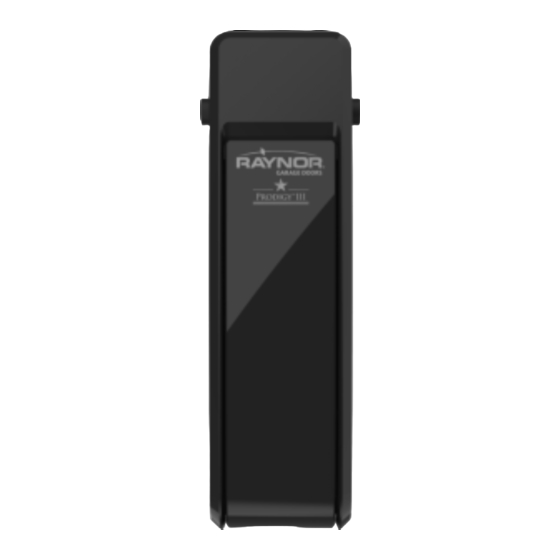

Model 98022RGD
This product is intended for installation only by trained garage door technicians. This product
may require adjustments to door springs and/or track configurations. This product is not
intended for use on low headroom tracks with outside pickup drum or garage doors utilizing
extension springs.
• Please read this manual and the enclosed safety materials carefully!
• The door WILL NOT CLOSE unless the Protector System
properly aligned.
• Periodic checks of the garage door opener are required to ensure safe
operation.
• The model number is located on the front cover of the operator.
• This garage door opener is ONLY compatible with myQ
accessories.
• Attach warning labels to the location indicated on label.

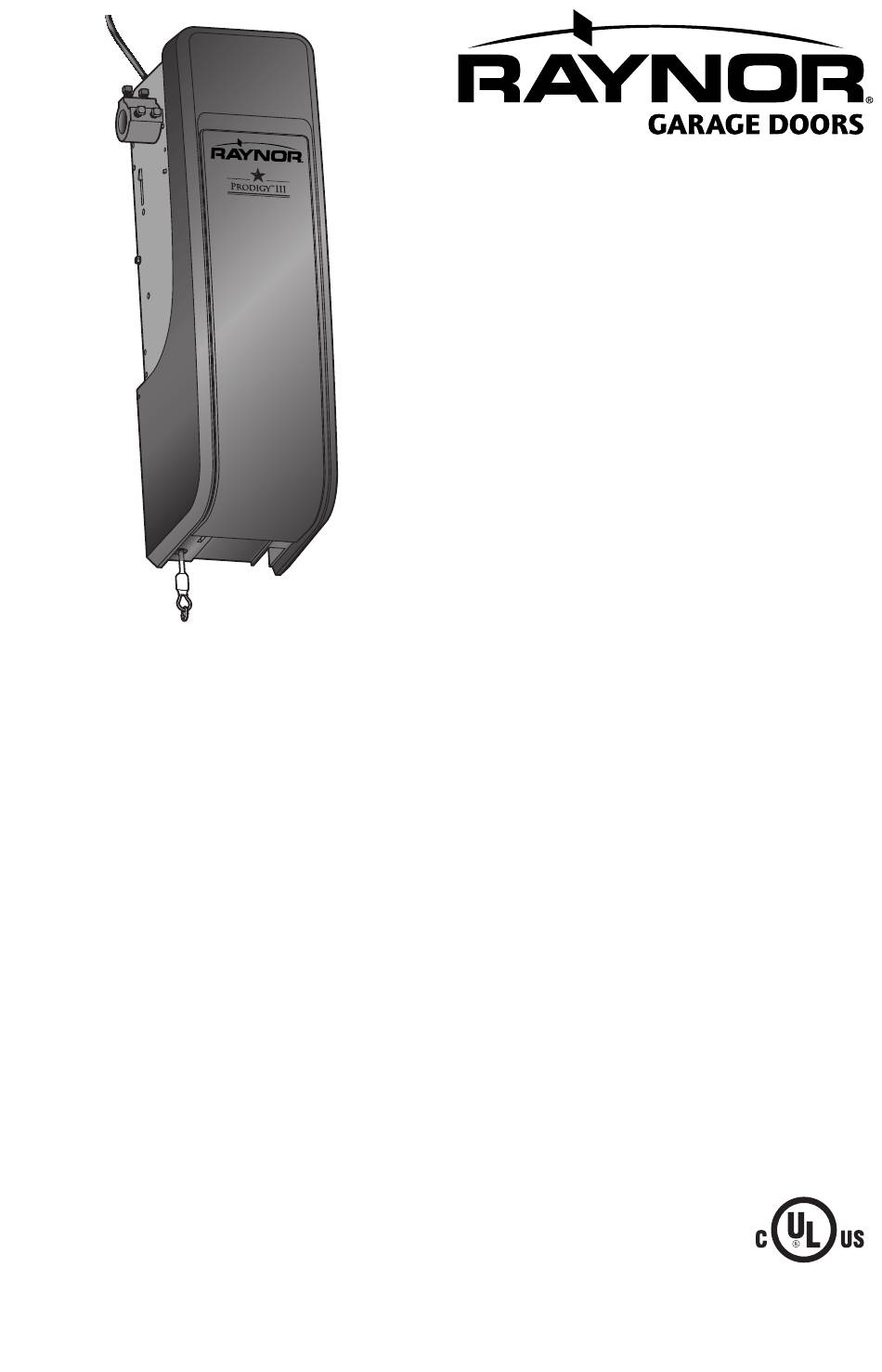

Garage Door Opener
®
USER'S GUIDE
FOR RESIDENTIAL USE ONLY
INSTALL ON SECTIONAL DOORS WITH
TORSION ASSEMBLIES ONLY
is connected and
®
and Security+ 2.0
®
®
www.raynor.com
Raynor Garage Doors
1101 River Road
Dixon, IL 61021
Advertisement
Table of Contents
Related Manuals for Raynor Prodigy III
Summary of Contents for Raynor Prodigy III
- Page 1 • The model number is located on the front cover of the operator. • This garage door opener is ONLY compatible with myQ and Security+ 2.0 ® ® accessories. • Attach warning labels to the location indicated on label. www.raynor.com Raynor Garage Doors 1101 River Road Dixon, IL 61021...
-
Page 2: Table Of Contents
Smartphone Control, and any other myQ devices are to be used ONLY with sectional doors. myQ Remote LED Light must be installed to enable use of Serial Numbers Timer To Close or myQ Smartphone Control of the door. For the complete manual visit https://raynor.com/residential/residential-product-literature/... - Page 3 Important Safety Instructions IMPORTANT INSTALLATION INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: 9. Install wall-mounted garage door control: 1. READ AND FOLLOW ALL WARNINGS AND • within sight of the garage door. INSTRUCTIONS. • out of reach of small children at a minimum 2.
-
Page 4: Important Safety Instructions
7. NEVER use emergency release handle unless SAVE THESE garage doorway is clear of persons and obstructions. INSTRUCTIONS. 8. NEVER use emergency release handle to pull garage door open or closed. If rope knot becomes untied, you could fall. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 5: Power
Power To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a To prevent possible SERIOUS INJURY or DEATH from qualified electrician to install the proper outlet. -
Page 6: Connect With Your Smartphone
• Move your router closer to the garage door opener to minimize interference from walls and other objects • Buy a Wi-Fi range extender For compatible router specifications and help, visit LiftMaster.com/Customer-Support. Proceed to page 7. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 7: Download The Myq App To Set Up An Account And Connect
Connect With Your Smartphone Download the myQ App to Set Up an Account and Connect Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door openers also receive software updates to ensure the opener has the latest operational features. 1. -
Page 8: Programming
Refer to the instructions provided with your keyless entry Visor control. Test remote control before reprogramming. or go to Raynor.com to download instructions. clip 1. Press and hold the program button on the remote control until the LED on the front of the remote control To Erase the Memory turns on. -
Page 9: Program The Myq Led Remote Light
Programming Program the myQ LED Remote Light HomeLink ® In the rare case the HomeLink system does not program myQ Remote LED Light must be installed to enable use of with the Security+ 2.0 Garage door opener, install a Timer To Close or myQ Smartphone Control of the door. repeater kit. -
Page 10: Operation
If rope knot becomes untied, you above the floor, avoiding contact with vehicles to prevent could fall. accidental release. Emergency Release Handle Disengage automatic garage door lock before opening door manually. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 11: Door Control
Operation Door Control Push Bar: Open/Close garage door. Navigation Buttons: Access menu: Clock Setup, Timer-to-Close, Lock, Program, Temperature, Language, Light Settings, Contrast Adjust, Maintenance Alert System, and Wi-Fi Setup. Motion Sensor Light Button Tip: To stop the Smart Control Panel LCD from displaying "CONNECT myQ APP": On the Smart Control Panel , press MENU, select... -
Page 12: The Protector System (Safety Reversing Sensors)
1. Check for obstructions in the sensor light beam. 2. Align the sensors. 3. If the receiving sensor (green LED) faces direct sunlight, switch the sensors to opposite sides of the door to assure proper operation. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 13: Adjustments
Adjustment Introduction Your garage door opener is designed with electronic controls to make setup and adjustments easy. The adjustments allow you to program where the door will Without a properly installed safety reversal system, stop in the open (UP) and close (DOWN) position. The persons (particularly small children) could be electronic controls sense the amount of force required to SERIOUSLY INJURED or KILLED by a closing garage... -
Page 14: Identify The Door Profile
8 inch diameter diameter 8 inch diameter Vertical Lift Sectional Door • Door Profile 5 = Tapered Drum with tracks raising vertically above the opening. 8 inch 8 inch diameter diameter 8 inch diameter For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 15: Set Door Profile
Adjustment Set Door Profile 1. To enter Set Door Profile mode, press and hold the To prevent possible SERIOUS INJURY or DEATH, after black button for one second. The UP and DOWN ANY changes to the door profile, reprogram limits. buttons turn a solid color. -
Page 16: Program The Travel
Automatic Force Setup completed successfully. Adjustment is complete. If you hear one long beep after the door attempts to move, then the Automatic Force Set Up has not completed successfully. Please start over at step 1 of Program the Travel. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 17: Test The Safety Reversal System
Adjustment Test the Safety Reversal System Test the Protector System ® Without a properly installed safety reversal system, Without a properly installed safety reversing sensor, persons (particularly small children) could be persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage SERIOUSLY INJURED or KILLED by a closing garage door. -
Page 18: Maintenance
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. For the complete manual visit https://raynor.com/residential/residential-product-literature/... -
Page 19: Troubleshooting
Troubleshooting Diagnostic Chart UP Button Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes. DOWN Button DIAGNOSTIC CODE SYMPTOM SOLUTION Up Arrow Down Arrow Flash(es) Flash(es) The garage door opener Safety sensors are not installed, connected or wires may be cut. - Page 20 Disable any door locks. Use the emergency release handle to disconnect the door. The door can be opened and closed manually. When power is restored, pull manual release a second time. • When in battery backup mode, battery power will last for 30 hours or up to 20 cycles over a 24 hour period. For the complete manual visit https://raynor.com/residential/residential-product-literature/...
- Page 21 Troubleshooting Additional Troubleshooting (Continued) Door loses limits: • Collar not tightened securely. Tighten collar and reprogram limits (see Adjustment Step 3). The garage door opener moves when the door is in operation: • Some minor movement is normal for this product. If it is excessive the collar will wear prematurely. •...
-
Page 22: Automatic Garage Door Opener Safety & Maintenance Guide
5 feet from the nearest standing surface and away from all moving parts. Mount and use the button where you can clearly see the closing garage door. Keep the door in sight until it completely closes when using the wall-mounted push button or transmitter. For the complete manual visit https://raynor.com/residential/residential-product-literature/... - Page 23 Routine Maintenance Can Prevent Tragedies Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the manufacturer(s) and request a copy for your specific model(s).
-
Page 24: Repair Parts
LIMITED WARRANTY ® Raynor (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in materials and/or workmanship for a specific period of time as defined below (the “Warranty Period”).
