PIKO 35041 - R/C Pocket Remote Quick Start Guide

Technical data

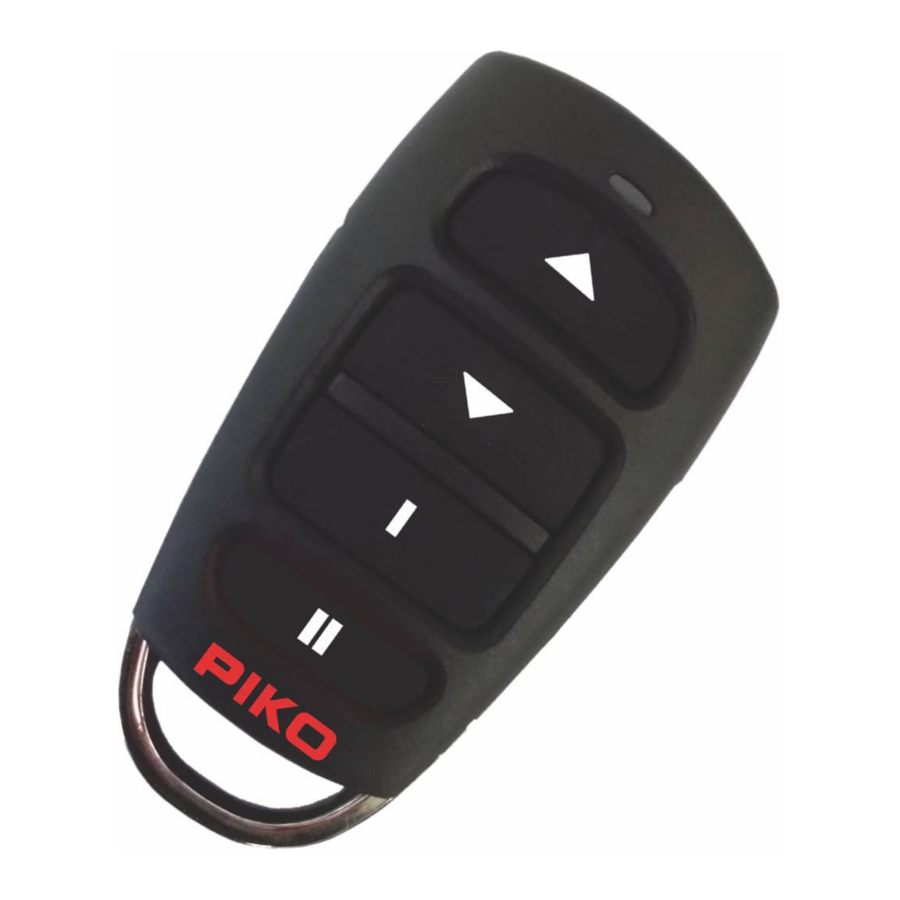

Transmitter (Pocket Remote)
Number of channels: 8
Frequency range: 2.4 GHz
Range: approx. 30 m
Power supply:1x 3 V CR2025
Dimensions: approx: 2.68'' x 1.42'' x 0.63'' (68 x 36 x 16 mm)
Weight: approx. 30 g

Control elements

Key assignment for #35040
Control elements - Key assignment for #35040

Key assignment for #35008 / #35028
Key assignment for #35008 / #35028

First set-up

The transmitter requires a CR2025 battery for operation. There is a LED at the top of the remote that confi rms each operation. If the brightness or range of the remote control decreases, the battery must be replaced.

Proceed as follows:

  • To insert the cell, lever open the lid with a coin on the recess.
  • Carefully insert the button cell into the holder with the plus pole facing up.
  • Place the metal bracket back into the bottom of the housing and join the two halves of the housing together.

Channel selection / Synchronization

Channel selection / Synchronization
In order for the receiver to pick up the signals from the transmitter, it must be connected to the corresponding transmitter. This is done by simply selecting a channel using a DIP rotary switch.


The transmitter and receiver are factory-set to channel 0.
Transmitter:

  1. Remove the small cover on the back of the transmitter.
  2. You now have access to the DIP rotary switch.
  3. The arrow direction indicates the set channel.
  4. You can adjust the channel by turning it with a small fl at screwdriver. Transmitter and receiver must be synchronized accordingly.

Operation with RC module

The operation is simple. By pressing the buttons on the remote control, you can select the direction of travel/speed level and, depending on the range of functions/further accessories, even trigger 2 sound functions*.

1 x = Forward driving direction, speed level 1
2 x = Forward driving direction, speed level 2

If you are already driving forwards with the locomotive, you can use the button to increase the speed (speed levels). By pressing , you can decrease the speed.

1x = Reverse driving direction, speed level 1
2x = Reverse driving direction, speed level 2

If you are already reversing with the locomotive, you can use the button to increase the speed (speed steps). Press the button to reduce the speed.

You can press the buttons briefl y, which only changes one speed step at a time, or you can keep the buttons pressed, which causes the speed to change continuously.

} = Emergency stop

= Sound triggering 1, e.g. a bell*
= Sound triggering 2, e.g. a horn*

*Only in combination with appropriate accessories with Reed contact tripping.

Operation with the R/C speed controller

The operation is simple. By pressing the buttons on the remote control, you can select the direction of motion, speed level and, depending on the range of functions, switch the accessory output and trigger an emergency stop.

1 x = Forward driving direction, speed level 1
2 x = Forward driving direction, speed level 2

If you are already driving forwards with the locomotive, you can use the button to increase the speed (speed levels). By pressing , you can decrease the speed.

1x = Recerse driving direction, speed level 1
2x = Recerse driving direction, speed level 2

If you are already reversing with the locomotive, you can use the button to increase the speed (speed steps). Press the button to reduce the speed.

You can press the buttons briefly, which only changes one speed step at a time, or you can keep the buttons pressed, which causes the speed to change continuously.

= Accessories on/off
(Permanent output at R/C speed controller 35008)
= Emergency stop

PIKO Spielwaren GmbH
Lutherstr. 30
96515 Sonneberg
GERMANY
