Item #731 167
Model #YG503-BN
USE AND CARE GUIDE

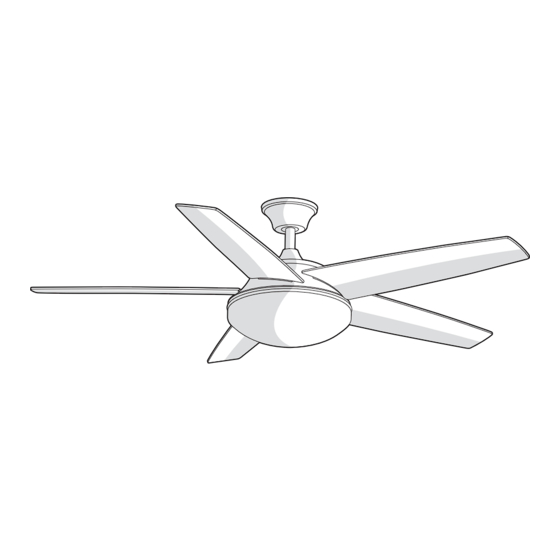

PICCADILLY 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection PICCADILLY YG503-BN
Summary of Contents for Home Decorators Collection PICCADILLY YG503-BN
- Page 1 USE AND CARE GUIDE PICCADILLY 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Installing the Remote Control Holder ........Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Specifications ................Troubleshooting ............Tools Required ................. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Canopy mounting bracket screw with lock washer (preassembled) Blade attachment screw and fiber washer (not to scale) Remote control holder mounting screw (not to scale) Remote control holder plug (preassembled) Clevis pin (preassembled) -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Light kit mounting plate Canopy ring (preassembled) 21 watt LED Light kit Canopy Glass shade Hanger ball/downrod assembly Receiver Coupling cover Remote control Fan motor assembly... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (GG) and clevis pin (FF), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (JJ) from the motor collar. □ Remove the two non-slotted mounting bracket screws (BB) from the canopy (C), and loosen the slotted □... -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. CAUTION: Do not use with a wall light dimmer switch. If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
- Page 11 Assembly — Hanging the Fan (continued) □ If your outlet box (NN) has a ground wire (green Making the electrical connections or bare copper) connect it to the fan ground wires; otherwise connect the hanger ball/downrod assembly (D) ground wire to the mounting bracket (A). WARNING: Check to see that all connections are tight, □...
- Page 12 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. WARNING: The locking slots of the canopy (C) are provided only as an aid to mounting.
-
Page 13: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not bend the blades (G) while installing, balancing the blades (G), or cleaning the fan. WARNING: Do not insert foreign objects between rotating fan blades (G). -
Page 14: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and glass shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (KK) from the mounting ring (RR) and loosen power by turning off the circuit breaker or removing the fuse the other two screws. -
Page 15: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS □ Install the 12V MN21/A23 battery (MM) (included) into the remote control (L). To prevent damage to the remote control (L), remove the battery if not used for long periods. □ Restore power to the ceiling fan and test for proper operation. HI, MED, LOW buttons: set the fan speed. -
Page 16: Reverse Switch Operating Instructions
Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation. NOTE: In standard ceiling mounting, lift up the coupling cover to find the reverse switch. -
Page 17: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 11. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 18: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Canopy mounting bracket screw with lock washer Canopy (preassembled) Hanger ball/downrod assembly Blade attachment screw and fiber washer Coupling cover Remote control holder mounting screw Fan motor assembly Remote control holder plug (preassembled) Blade... - Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. YG503BN0001-Y...
