Types of application
Key for exemplary types of application:
Circulating air drying for indoor installation
The device is positioned in the room to be dehumidified.
• The device operates in recirculation mode.
• The air transport line for the regeneration air inlet (19) is
to be led outside.
• The air transport line for the humid air outlet
(regeneration air (18)) is to be led outside.
Circulating air for drying outdoor installation
• The air transport line for the process air inlet (17) is led
into the room to be dried in order to take in the humid
air from the room.
• The air transport line for the dry air outlet (11) is led into
the room in order to feed dry air into it.
Ventilation mode for outdoor installation
• The air transport line for the dry air outlet (11) is led into
the room to be dehumidified in order to feed dry air into
it.
7

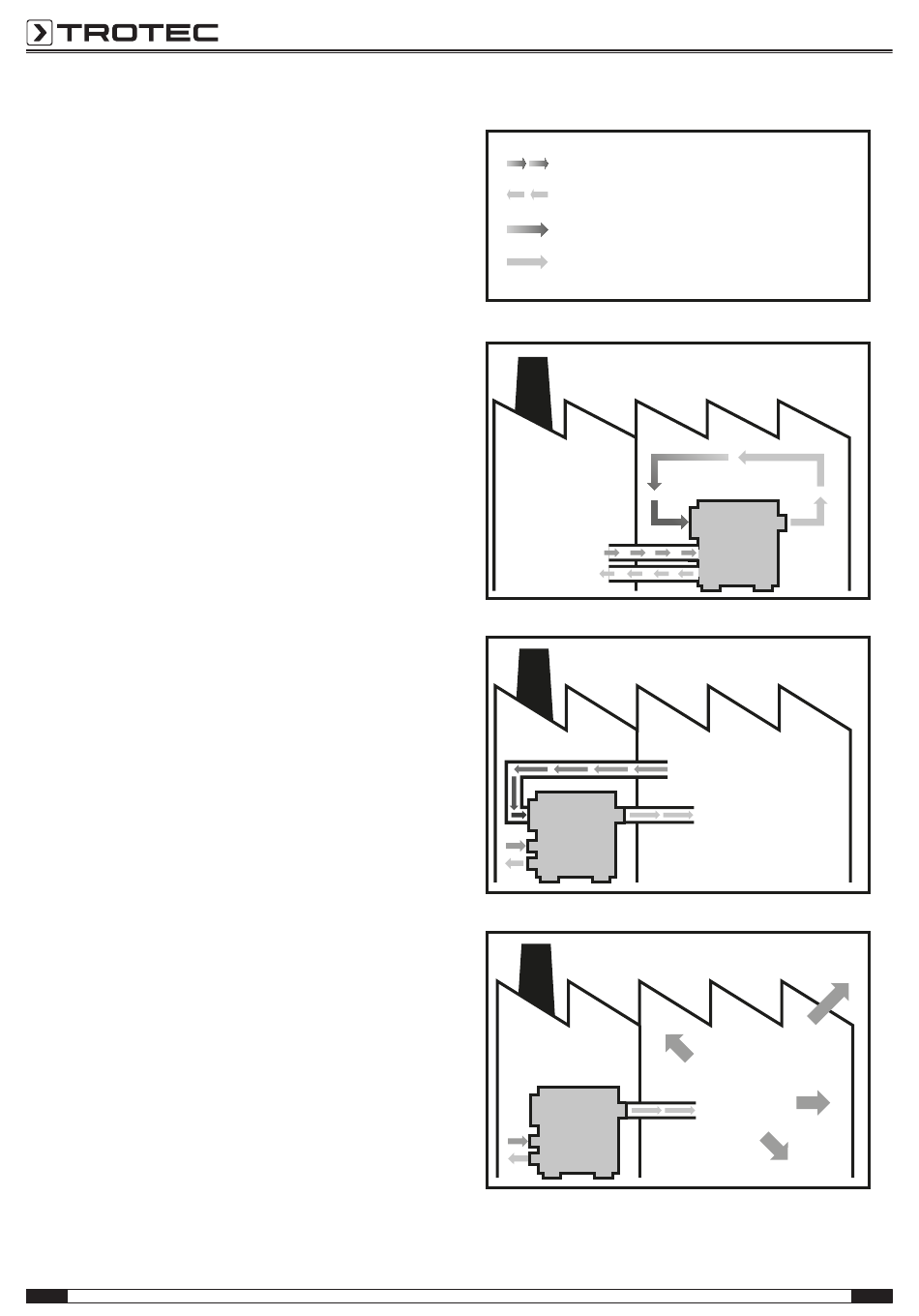

Example 1: Circulating air drying for indoor installation
dual air circuits
inside the device
Example 2: Circulating air drying for outdoor installation
Example 3: Ventilation mode for outdoor installation
desiccant dehumidifier TTR 5200 / TTR 6600 / TTR 8200
regeneration air intake (19)
humid air discharge (18)
process air (11)
dry air (17)
Pressure-neutral
TTR
Pressure-neutral
TTR
dual air circuits
inside the device
excess pressure
TTR
ΔP = 0
P-
ΔP
P+
