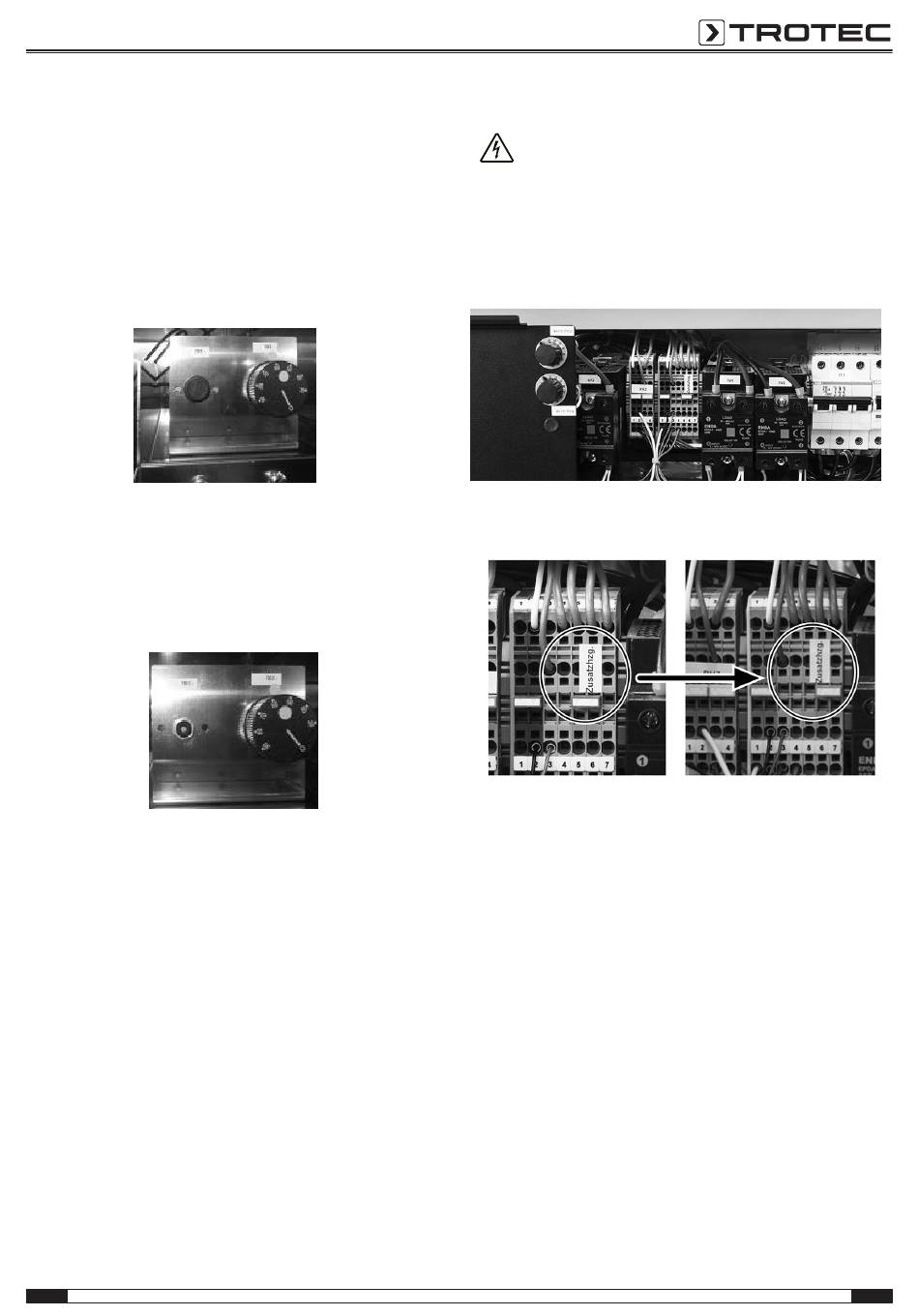

Electric reheater for dry air option
For additional reheating of the escaping dry air.
The electric reheater is integrated in the "dehumidifier" housing
part of the TTR.
The reheating temperature is preset at the factory and generally
does not require any modification.
The access for setting the temperature "7B2" of the electric
reheater is located in the electrical control box behind the right
housing cover.
Resetting the safety temperature limiters (STB)
If the temperature limiter has tripped, it must be reset:
1. Open the right control cabinet cover (see Operation chapter
in the manual).
2. Unscrew the protective cap of the STB reset device "7B1".
3. The STB can now be reset with a pen or screwdriver.
4. Afterwards, screw the protective cap back on.
EN
Operation without electric heating
Warning of electrical voltage
Work on the electrical components must only be
carried out by a qualified electrician!
Should it be necessary to operate the desiccant dehumidifier
without the electric reheater, simply reposition the jumper.
The jumper for manual changeover is located behind the front
cover on the right-hand side.
Operation with electric heating
desiccant dehumidifier TTR 5200 / TTR 6600 / TTR 8200
Operation without electric heating
30
