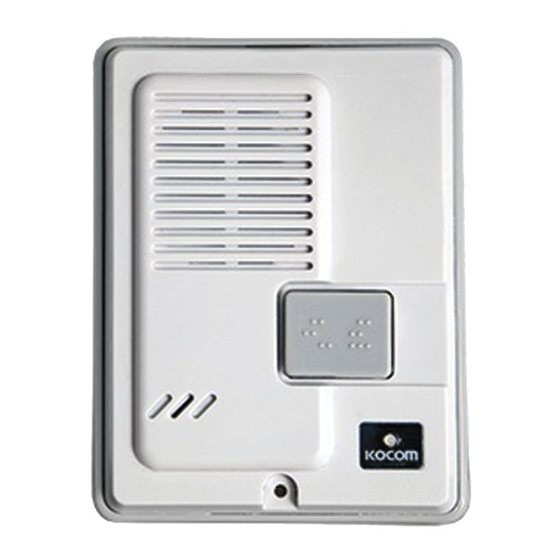

KOCOM DS-4M - Multiple Out Door Panel Manual

SPECIFICATION & FEATURES

POWER: DC 24V(1.2A) / POWER FROM INTERPHONE
CONSUMPTION: UN LOAD; 0.3W IN LOAD; 1.0W
NO.OF WIRES: 4WIRED PARALLEL
(VOICE,CALLING, POWER, GND)
RANGE: TIV 0.6 (1Km)
※ 1Km(When additional DC 24V adaptor is installed)

• COMPOSITION:
  • OUT DOOR PANEL ( DS-4M)
  • MULTIPLE INTERPHONE (KIP-611PG/605PG) ※Option
  • ADAPTOR ※Option

※ When using DS-4M with KIP-611PG or KIP-605PG it should be No.1 in DIP switch.
So KIP-611PG or KIP-605PG can not be set as No.1 in dip switch.

Name of Each Part

How to operate (Instruction for operating)

You can make a call pressing call button.

Receiving Call

Pick-up the hand-set and press NO.1 button for conversation with DS-4M

Wiring Diagram
