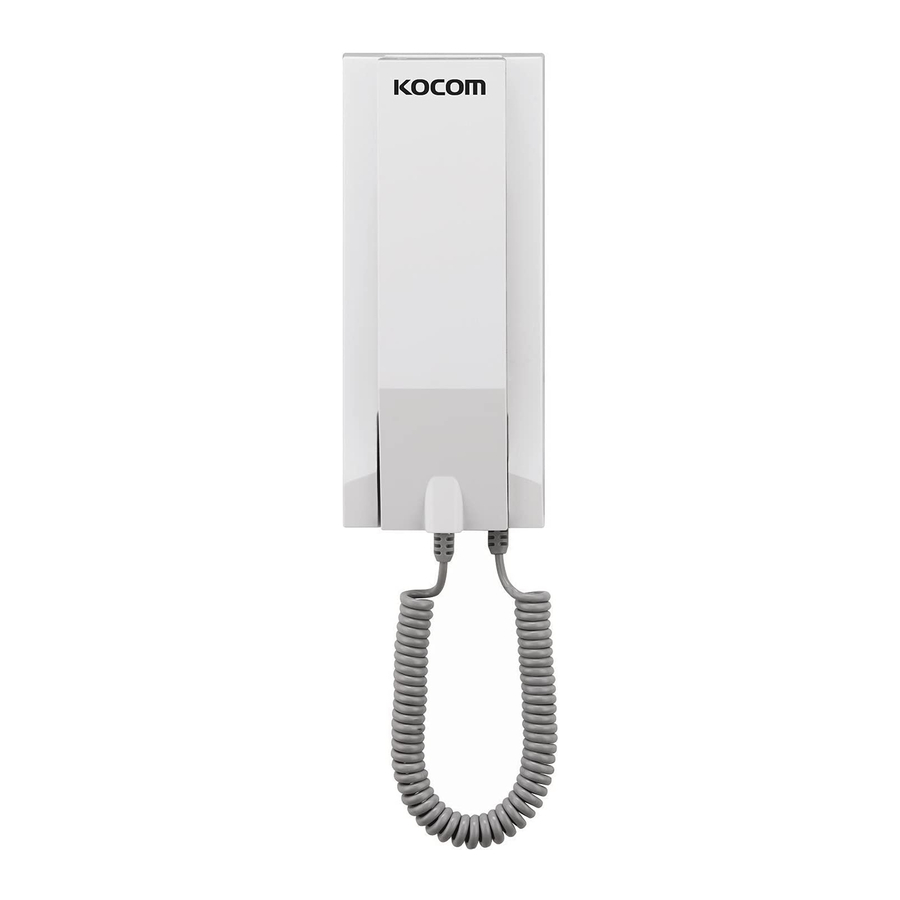

KOCOM KIP-304 - Intercom System Manual
Name of Each Part
Installation
Interphone Installation
- Install wall-hanger bracket on wall with attached Vis.
![]()
- and 3. Connect wiring to interphone back terminal referring to product connection diagram.
![]()
![]()
- Hang interphone on wall-hanging, and fix interphone on wall- hanger bracket using attached Vis.
![]()
Product connection diagram
- Check the suitability of the lines for installing when you use the exiting lines.
- Do the wiring work by using the designed material.
- Connect the electric wire with the designed ways and ground.
Specifications
| Model No. | KIP-304 |
| Power Source | DC 12V (sourced from lobbyphone) |
| Power Consumption | MAX 5W |
| Communication System | Handset |
| Wiring | 3+n (Polarity) |
| Dimesion | (W)75mmX(H)176mmX(D)52mm |
Components of product
Interphone
A Wall hanger frame
Screw for fixing interphone
4 pin cable for interphone & audio lobbyphone
- GND
- AUDIO-SPEAKER
- AUDIO-MIC
- SIGNAL
Instructions for operation
Communication with Audio lobbyphone
When the visitor presses the call button for certain house on the audio lobbyphone
The indoor station is ringing.
Pick up the handset and communicate with a visitor. After end of communication, return the handset where it is locked.
To release the door, press the "Door open" button.
