INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your dealer with questions on installation, operation, or service.
NOTICE: DO NOT DISCARD THIS MANUAL

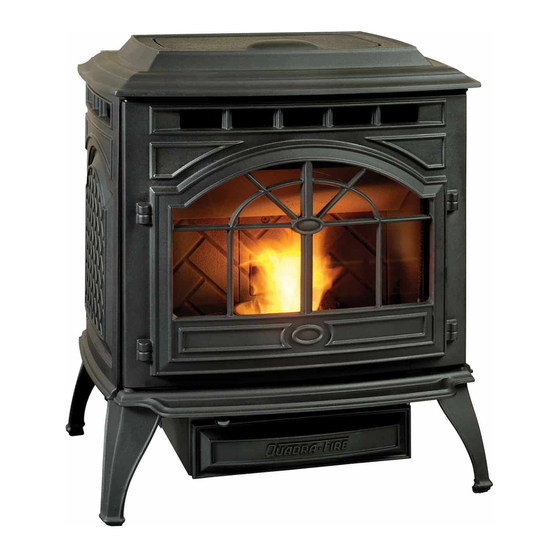

CASTILE PELLET APPLIANCE
MODEL NUMBERS:
CASTILE-MBK-C
CASTILE-PMH-C
CASTILE-TWL-C
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Owner's Manual
Operation & Care
CAUTION
R
If the information in these instructions is
not followed exactly, a fire could result
causing
injury, or death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified.
Failure to comply may cause house fire.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as fireplace.
• Alert
children
high temperatures
• High temperatures may ignite clothing or other
flammable materials.
• Keep
clothing,
flammable materials away.
Tested and approved for wood pellets only. Burning of
any other type of fuel voids your warranty.
NOTE: To obtain a French translation of this manual,
please contact your dealer or visit
REMARQUE : Pour obtenir une traduction française de
ce manuel, s'il vous plaît contacter votre revendeur ou
visitez
www.quadrafire.com
7021-802K
WARNING
property
damage,
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down. Hot glass will
cause burns.
and
adults
to
furniture,
draperies
CAUTION
www.quadrafire.com
personal
hazards
of
and
other
02/23
