Log Set Assembly: LOGS-QFI30
Models: QFI30, QFI30-C
SRV2227-702
SRV2227-702
SRV2227-705
SRV2227-705
SRV2227-706
SRV2227-706

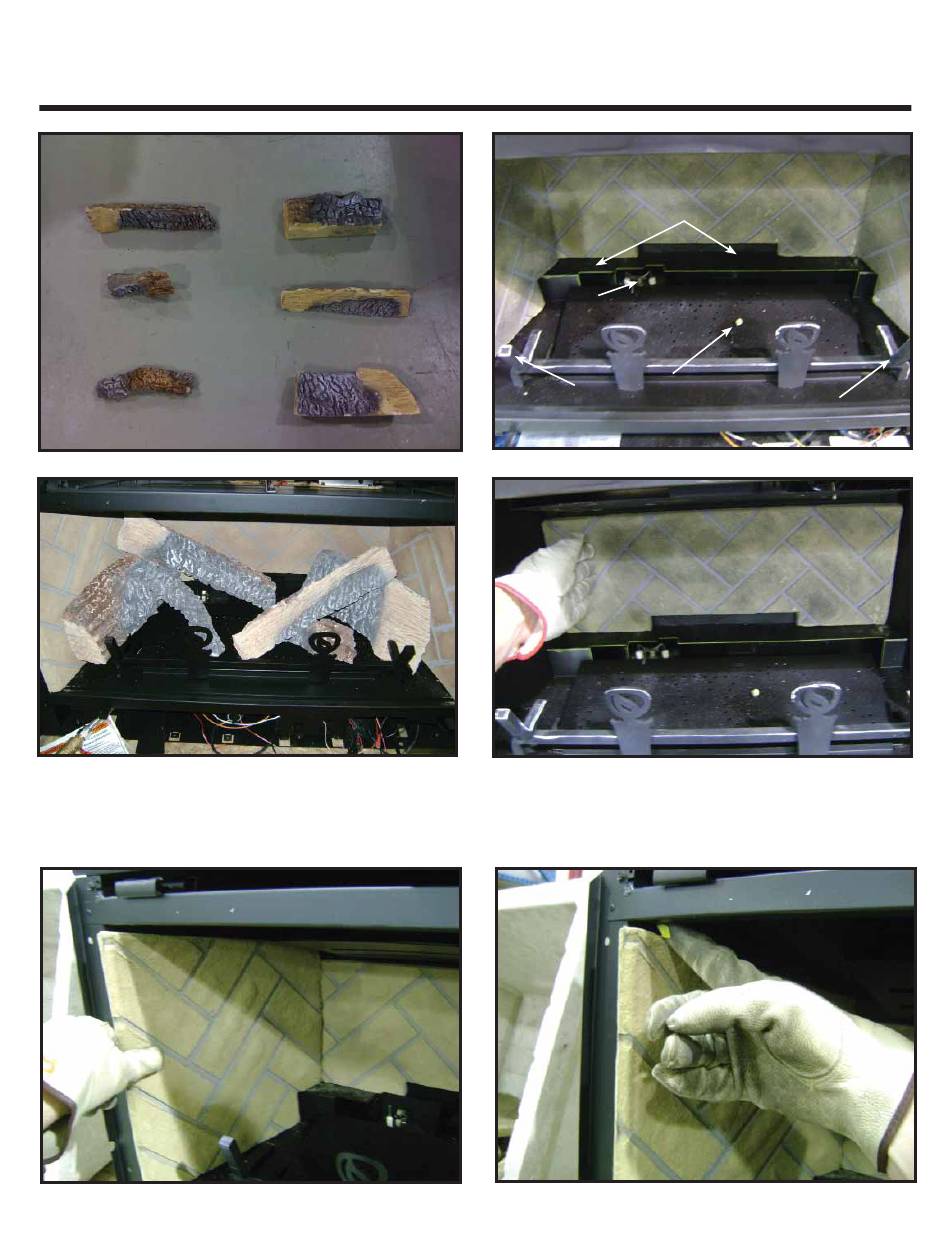

Figure 2. Refractory and Logs Installed
CAUTION: Logs are fragile, handle with care. Install back refractory by placing it against the back of the fi rebox. See Figure
3. The back refractory must be held in the upright position until the side refractory is installed. Install the left side refractory
as shown in Figure 4. Bend the refractory tab down as shown in Figure 5. Repeat this step for the right refractory panel.
Figure 4. Install Side Refractory
SRV2227-703
SRV2227-703
SRV2227-704
SRV2227-704
SRV2227-701
SRV2227-701
Quadra-Fire • LOGS-QFI30 Log Instructions • 2227-935 Rev. B • 7/11
LOG PLACEMENT INSTRUCTIONS
LOG SUPPORT
LOG SUPPORT
PILOT
PILOT
ASSEMBLY
ASSEMBLY
LOG PIN
LOG PIN
LEFT GRATE
LEFT GRATE
TINE
TINE
Figure 1. Reference Points for Log Placement
Figure 3. Install Back Refractory
Figure 5. Bend Refractory Tab
RIGHT GRATE TINE
RIGHT GRATE TINE
1
Advertisement
Table of Contents
Related Manuals for Quadra-Fire LOGS-QFI30
Summary of Contents for Quadra-Fire LOGS-QFI30
- Page 1 Figure 4. Bend the refractory tab down as shown in Figure 5. Repeat this step for the right refractory panel. Figure 4. Install Side Refractory Figure 5. Bend Refractory Tab Quadra-Fire • LOGS-QFI30 Log Instructions • 2227-935 Rev. B • 7/11...
- Page 2 (FOR LOG #6) MATES MATES WITH SLOT WITH SLOT MATE NOTCH MATE NOTCH NOTCH NOTCH WITH GRATE BAR WITH GRATE BAR Figure 10. Log #4 Figure 11. Log #4 Quadra-Fire • LOGS-QFI30 Log Instructions • 2227-935 Rev. B • 7/11...
- Page 3 Log #6 (SRV2227-704): Rest the left end of Log #6 on the burner. Mate the notch on the left end of log with the grate bar. The log should rest on both log grooves as illustrated in Figure 9 and Figure 10. Quadra-Fire • LOGS-QFI30 Log Instructions • 2227-935 Rev. B • 7/11...
