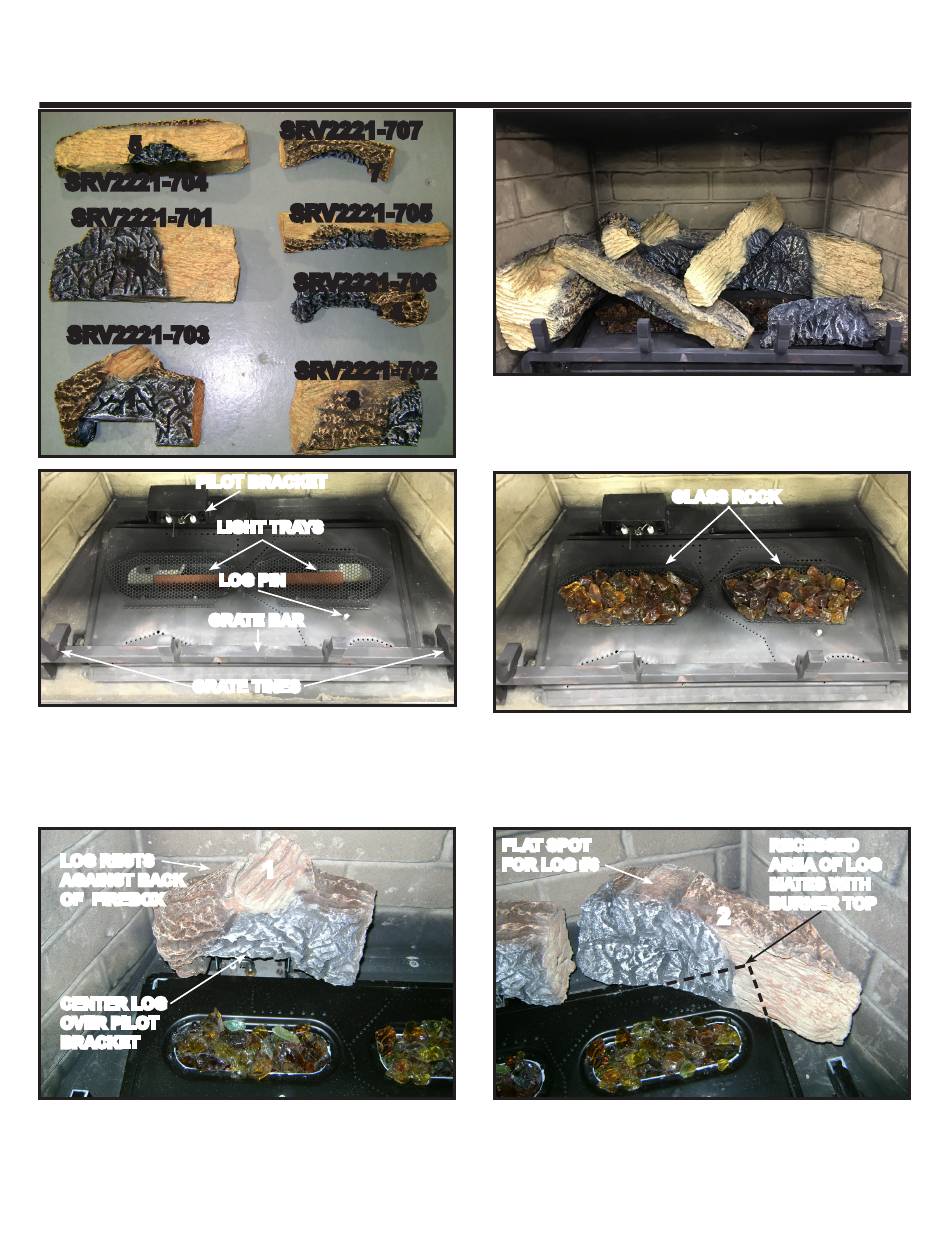

Quadra-Fire LOGS-QFI30FB Log Placement Instructions

Log Set Assembly: LOGS-QFI30FB
Models: QFI30FB, QFI30FB-C, QFI30FB-IFT
5
SRV2221-704
SRV2221-701
2
SRV2221-703
1
PILOT BRACKET
LIGHT TRAYS
GRATE BAR
GRATE TINES
Figure 2. Reference Points for Log Placement
CAUTION: Logs are fragile, handle with care.
Glass Rock (2201-853): Fill each light tray evenly with the glass rock.
WARNING! Risk of Explosion! DO NOT place glass rock on the burner surface. DO NOT place glass rock directly over
burner ports. Improperly placed glass rock interferes with proper burner operation.
LOG RESTS
AGAINST BACK
OF FIREBOX
CENTER LOG
OVER PILOT
BRACKET
Figure 4. Place Log #1
Log #1 (SRV2221-703): Position Log #1 as shown in Figure 4. See Figure 2 for additional points of reference. Center the
log over the pilot bracket. Pull the log forward until contact is made with burner.
Log #2 (SRV2221-701): Position Log #2 as shown in Figure 5. See Figure 2 and Figure 6 for additional points of reference.
The recessed area on the bottom of the log and the back right corner of the burner top mate.
SRV2221-707
7
SRV2221-705
6
SRV2221-706
4
SRV2221-702
3
LOG PIN
1
Quadra-Fire • LOGS-QFI30 Log Instructions • 2221-935 Rev. E • 6/18
LOG PLACEMENT INSTRUCTIONS
Figure 1. Logs Installed
Figure 3. Install Glass Rock
FLAT SPOT
FOR LOG #6
Figure 5. Place Log #2
GLASS ROCK
RECESSED
AREA OF LOG
MATES WITH
BURNER TOP
2
1
