Log Set Assembly: LOGS-291
Model: QV36-A
6
7
CAUTION: Logs are fragile! Carefully remove the logs from the packaging. Pull metal base pan forward
before setting logs in place.
LOG #1 (SRV537-134):
locator tabs and place log notch over tab on the right side of the grate.
LOG #2 (SRV537-135):
Align the slot in the left bottom of log #2
with the third grate bar. Slide the log
back until it contacts the two front log
locator tabs.
1
3
4
5
2
NOTCH

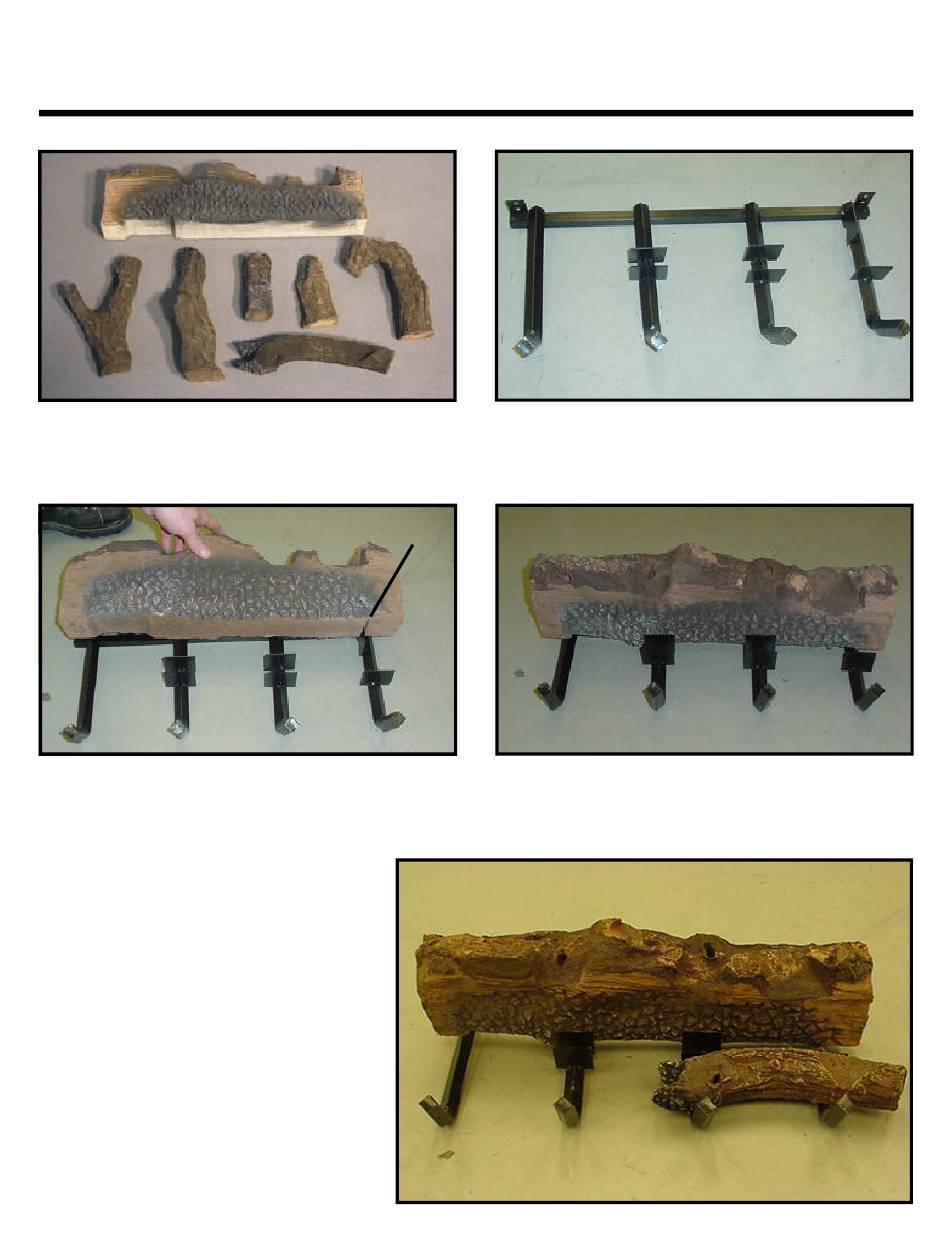

Place log #1 on the back of the grate, pull forward until it contacts the two rear
1
LOG PLACEMENT
INSTRUCTIONS
1
2
291-935B 4/02
