Log Set Assembly: LOGS-QFI35

Models: QFI35, QFI35-C

CAUTION: Logs are fragile, handle with care.

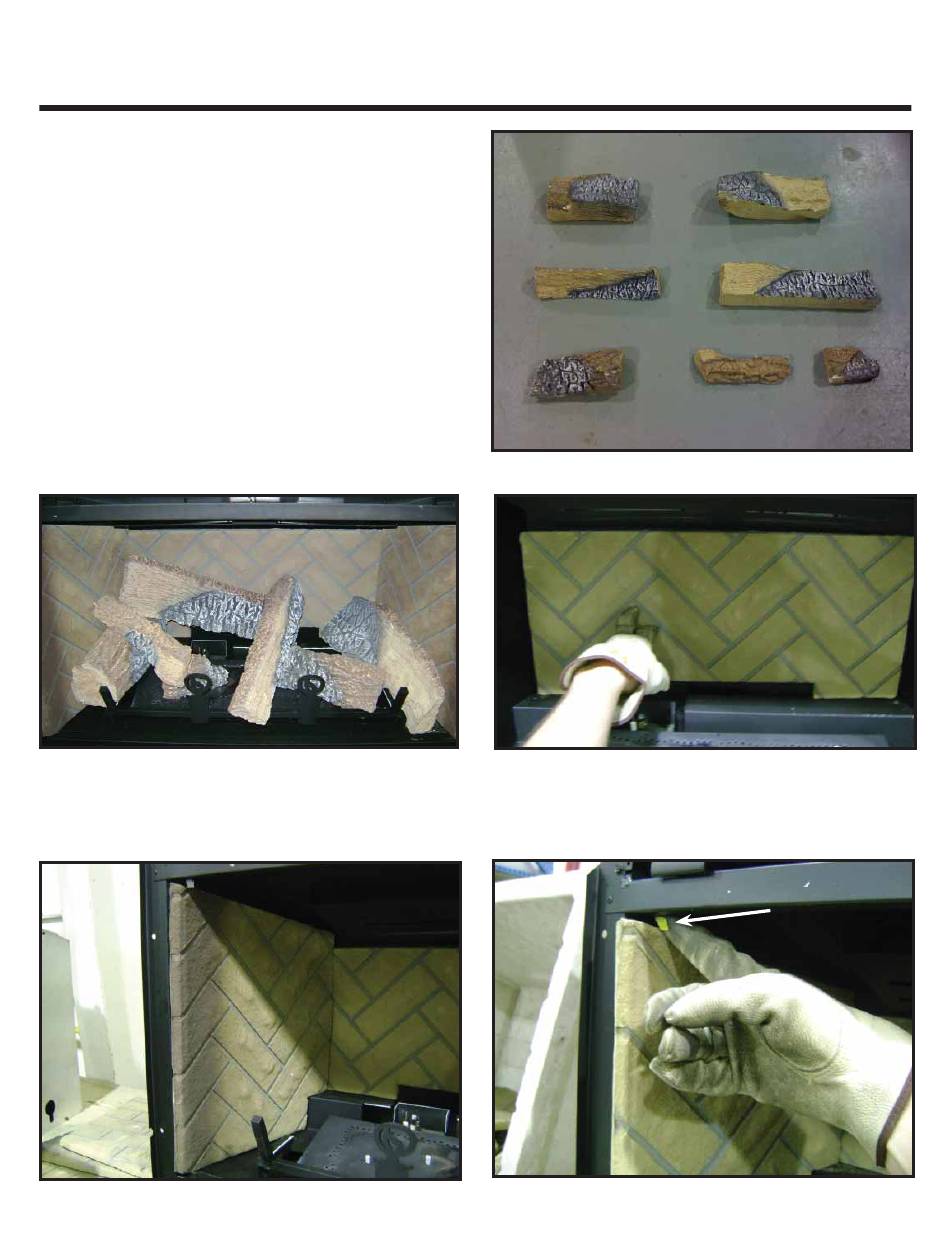

Figure 1. Refractory and Logs Installed

Install back refractory by placing it against the back of the ﬁ rebox. The back refractory must be held in the upright position

until the side refractory is installed. Install the left side refractory as shown in Figure 3. Bend the refractory tab down as

shown in Figure 4. Repeat this step for the right refractory panel.

Figure 3. Install Side Refractory

Quadra-Fire • LOGS-QFI35 Log Instructions • 2225-935 Rev. C • 7/11

LOG PLACEMENT INSTRUCTIONS

SRV2225-703

SRV2225-704

SRV2225-705

Figure 2. Install Back Refractory

Figure 4. Bend Refractory Tab

SRV2225-701

SRV2225-702

SRV2225-706

SRV2225-710

REFRACTORY

TAB

Need help?

Do you have a question about the LOGS-QFI35 and is the answer not in the manual?

Page 1 Install the left side refractory as shown in Figure 3. Bend the refractory tab down as shown in Figure 4. Repeat this step for the right refractory panel. REFRACTORY REFRACTORY Figure 3. Install Side Refractory Figure 4. Bend Refractory Tab Quadra-Fire • LOGS-QFI35 Log Instructions • 2225-935 Rev. C • 7/11...
Page 2 Log #4 SRV(2225-705): Mate the slot on the bottom of Log #4 with the right log pin. Refer to Figure 11 for location of log slot. Rotate the right end of the log clockwise until the groove on the end of the log mates with the grate bar. Quadra-Fire • LOGS-QFI35 Log Instructions • 2225-935 Rev. C • 7/11...
Page 3 Log #7 SRV2225-704): Note the location of the groove on the underside of the log. Place the opposite end on the ﬂ at spot on Log #3. See Figure 9. Mate the groove on the underside of the log with the grate bar as shown in Figure 15, centered between the andirons. Quadra-Fire • LOGS-QFI35 Log Instructions • 2225-935 Rev. C • 7/11...
