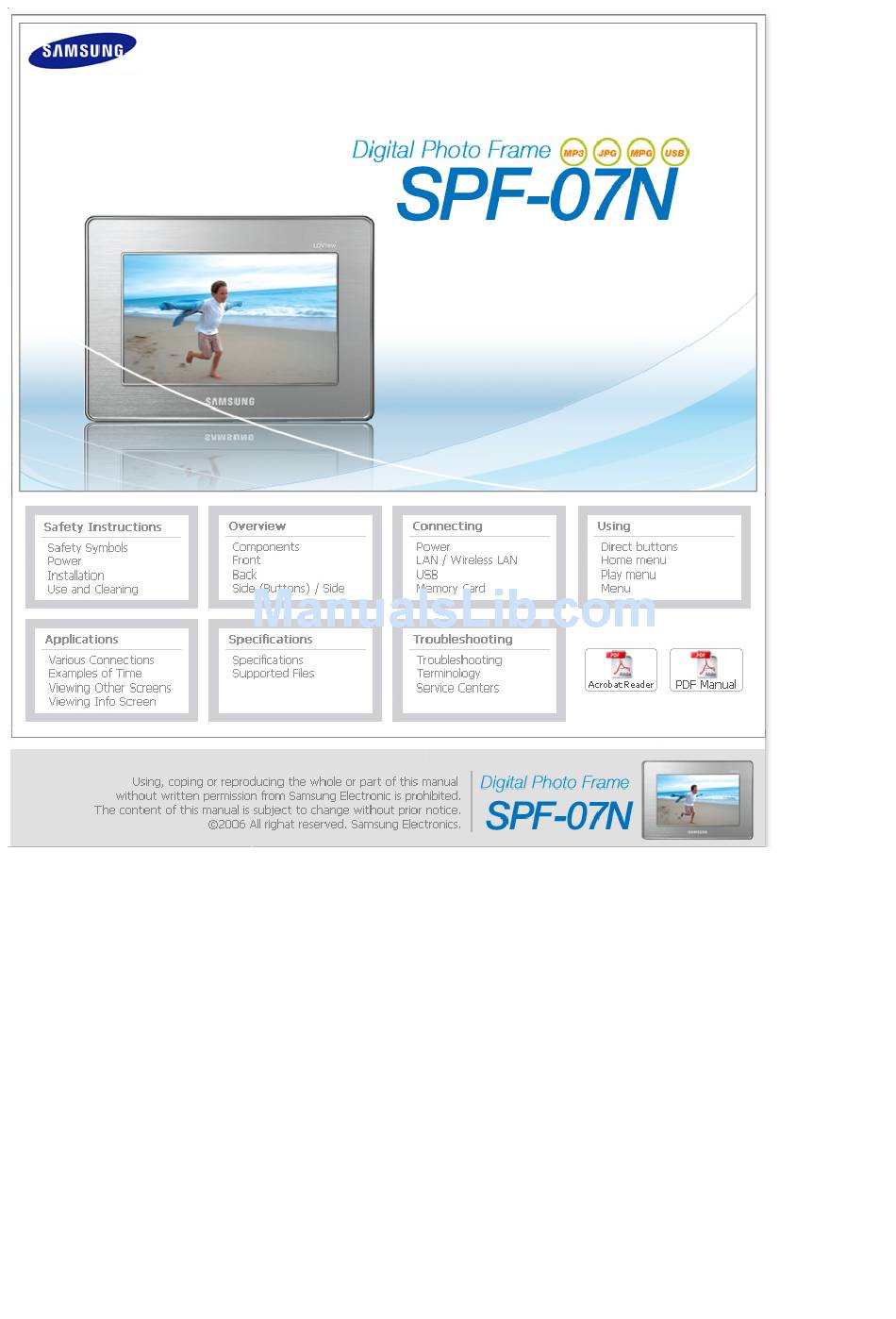

Samsung SPF-07N User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Digital Photo Frame
  5. SPF-07N
  6. User manual

Samsung SPF-07N User Manual

Samsung spf-07n: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPF-07N

Summary of Contents for Samsung SPF-07N

  • Page 2: Installation

    Safety Symbols Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product by using the product correctly. Failure to follow the accompanying directions may lead to serious injury or death. Failure to follow the accompanying directions may lead to serious injury or death. Safety Symbols Power Insert the power plug correctly until it is firmly in place.

  • Page 3: Safety Symbols

    Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. Make sure to turn the power off and disconnect the power plug from the outlet before moving the product.
  • Page 4 When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire. Do not install the product in a location exposed to oil, smoke, moisture, water, or rainwater, or in a car.
  • Page 5 Do not insert any metal objects such as chopsticks, wire, or gimlets, or flammable items such as paper or matches into the terminals at the back of the product, as this may cause electric shock or fire. If water or any foreign substance enters the product, make sure to turn the product off disconnect the power plug from the outlet, and contact a Never disassemble, repair, or modify the product yourself.
  • Page 6 If the product has been dropped or the product casing is damaged, turn it off and disconnect the power plug. Using the product without verifying that it has not been damaged may cause electric shock or fire. Please contact a service center.
  • Page 7 You can send your photos to a networked digital photo frame of a family member or friend at a remote location. Expand the memory capacity with a memory card. Enjoy stored images immediately.
  • Page 8 Digital Photo Frame (Colors may differ for each product.) Manual Quick Start Warranty User Manual Cleaning cloth Cables USB cable LAN cable Power Adapter (A-B type) Power cord Sold separately...
  • Page 9 CF card Features Components Front Power Shows the power status. Indicator When the product is powered on, the power light turns on. Features Components Back SD/MMC card Front Back (Buttons) Front Back (Buttons) Side Side Side Side...
  • Page 10 Connect the power adapter to this jack. Connect the power cord to the power terminal of the power adapter. If your digital photo frame is connected to a Server site via the LAN, you can download its contents to your digital photo frame.

  • Page 11: Side | (Buttons)

    ] Power Button Turns the product on or off. [MENU] Menu Button Displays the menu at the center bottom of the screen. Adjusts the brightness when displaying photos or playing movies. ] Brightness Button ] Up Button Moves the selected frame in the menu up. Moves the selected frame in the menu to the left.
  • Page 12 Memory Card You can insert a CF card or SD/MMC card into this slot to view and use the content stored on Slot them. Open the cover using the groove marked OPEN and insert a card. CF CARD You can insert a CF card into this slot to view and use the contents stored on it.

  • Page 13: Memory Card

    Power Connecting the Power Connect the power adapter to the POWER terminal at the back of the product. Connect the power cord to the power adapter. If all cables are connected, insert the power plug into a 220V outlet. Press the button at the right of the product to turn the product on.

  • Page 14: Connecting To A Wireless Lan

    If your internet service is normal but you cannot connect to Server, contact a service center so that a service engineer visits your home to solve the problem. For other problems, you need to visit a Samsung service center. Power...

  • Page 15: Connecting Via Usb

    (For more information on external devices and their cables, contact a relevant service center.) Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.

  • Page 16: Connecting A Memory Card

    Connect to the up stream terminal of your digital photo frame. Connect the USB terminal of your PC. Power Connecting a Memory Card CF CARD Slide the card into in the direction marked on the top of the card. To remove a memory card, press the button at the top of the card slot.

  • Page 17: Direct Button

    Direct button MENU The menu is automatically hidden after one minute. Button Shows the menu at the bottom center of the screen. MENU (MENU button) Pressing the menu button releases the Volume/Brightness mode. (Up button) Direct button Description Action/Stop...
  • Page 18 Button Moves the selected frame on the menu up. (Up button) Operating During Playback Position Volume Up (when the volume adjustment window is displayed) Play Mode Brightness Up (When the brightness adjustment window is displayed) Operating Contents List Position Sub menu of Moves up (Down button) Button...
  • Page 19 Button Moves the selected frame on the menu to the left. (Left button) (Right button) Button Moves the selected frame on the menu to the right. (Right button) / SHOW (Select / Slide Show button) Button Button Operation / SHOW Description Description Description...
  • Page 20 (Select / Slide Show button) Operating During Playback Position Shows/Hides the list of thumbnails Play Mode at the bottom. Operating Contents List Position Sub menu of Select and play HOME Play If there is an existing content item that was played, it returns to that playback screen. Contents List Loads the contents stored on the media connected via USB port.
  • Page 21 Shows the selected file in an amber frame. Shows on the List If there are no supported files on the connected media, "No screen Contents Available." is displayed. Server Loads the contents onto the Server. Internal Loads the contents stored in the Internal Memory. Memory Connected Storage Media SD / MMC...
  • Page 22 Your product will turn on at the specified time automatically. Select Language - Language If you want to use the information you registered on the Server, the IP address of you Digital Photo Frame should be correct. IP Setup Networks Server Address- Server Address If there is any change, visit the Server and check the address.
  • Page 23 Shows the set time in full screen mode. Play Menu Play Play the file. Stop Return to the first of the slide show. Previous File Play the previous file in the contents list. Next File Play the next file in the contents list. MENU : Stops the file being played back Mode...
  • Page 24 Delete Delete the file being played back. Info Show the information on the file being played back. Photo (Image) Speed Select a mode among Faster, Fast, Normal, Slow, and Slower. Select an effect among No Effect, Random, Fade-In/Out, Checkers, Blind, Effect Zoom, Trans.Move, Hor.Move, Ver.Move.
  • Page 26 I want to use content using multiple connections. By connecting a USB storage media or a CF/SD/MMC card to your digital photo frame and turning it on, the Contents List screen appears automatically and your digital photo frame loads the contents from the connected storage media and card.
  • Page 27 Loading the contents from a memory card may take some time. To remove a memory card, press the button at the top of the card slot. Using Memory Only applicable to memory supported by the CF card adapter or SD card adapter. with a Card No guarantee is spported for memory cards and adapters other than CF, SD, MMC, Adapter...
  • Page 28 I want to display other information including the time while my digital photo frame is turned on. Configuring the Select the Setup of Information to Select Show Info.. Display Select all items you want to display from among the Play Mode, BG Music, Number of Files, Server Cond., Date &...

  • Page 30: Specifications

    Specifications Items Type Resolution Brightness Panel Contrast Ratio View Angle Interface Supported Formats Built-in Memory Wired Network Wireless Sound Media (Memory Card) Power Content Files Photo File FAT16,FAT32 (200 Characters) Specifications Supported Files Specifications 7" TFT 800 x 480 360 cd/m 300 : 1 40/60/60/60 (Up-Down/Right-Left) 6-bit...
  • Page 31 MPEG4 SP, ASP/L3,L5 (720x480, 2Mbps, 30fps) WMV9 SP, MP/medium level (720x480, 2Mbps, 30fps) Supported image file format : JPEG, 3200x2400 The Digital Photo Frame uses these modules: It complies to GPL licensing. Linux Kernel 2.6.11, AAC, ffmpeg MP3 For more information, visit the following web sites: AMD AU1200 website (http://wwwd.amd.com/amd/devkits.nsf)

  • Page 32: Troubleshooting

    Troubleshooting This section lists various problems and solutions encountered by users while using the digital photo frame. When encountering a problem, first check the list below and follow the suggested action if one matches your problem. If the problem still persists, contact or visit the nearest service center.
  • Page 33 Therefore, you need to set time again whenever your Digital Photo Frame turns on. However, if you are connected to Server, you don't have to set time again because your Digital Photo Frame gets time info from the Server and sets its time automatically.
  • Page 34 If you need a product service, contact or visit a Samsung service center. For services for network connection and the Server. Services Samsung Electronics web site If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. CANADA 1-800-SAMSUNG (7267864)
  • Page 35 BRAZIL 0800-124-421 CHILE 800-726-7864 (SAMSUNG) COSTA RICA 0-800-507-7267 ECUADOR 1-800-10-7267 EL SALVADOR 800-6225 GUATEMALA 1-800-299-0013 JAMAICA 1-800-234-7267 PANAMA 800-7267 PUERTO RICO 1-800-682-3180 REP. DOMINICA 1-800-751-2676 TRINIDAD & TOBAGO 1-800-7267-864 VENEZUELA 1-800-100-5303 BELGIUM 02 201 2418 CZECH REPUBLIC 844 000 844...
  • Page 36 0120-327-527 MALAYSIA 1800-88-9999 PHILIPPINES 1800-10-SAMSUNG (7267864) SINGAPORE 1800-SAMSUNG (7267864) THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860 7267864 (SAMSUNG) U.A.E 800SAMSUNG (7267864) http://www.samsung.com.cn http://www.samsung.com/hk http://www.samsung.com/in http://www.samsung.com/id http://www.samsung.com/jp http://www.samsung.com/my http://www.samsung.com/ph http://www.samsung.com/sg http://www.samsung.com/th http://www.samsung.com/tw http://www.samsung.com/vn Middle East & Africa http://www.samsung.com/za...
