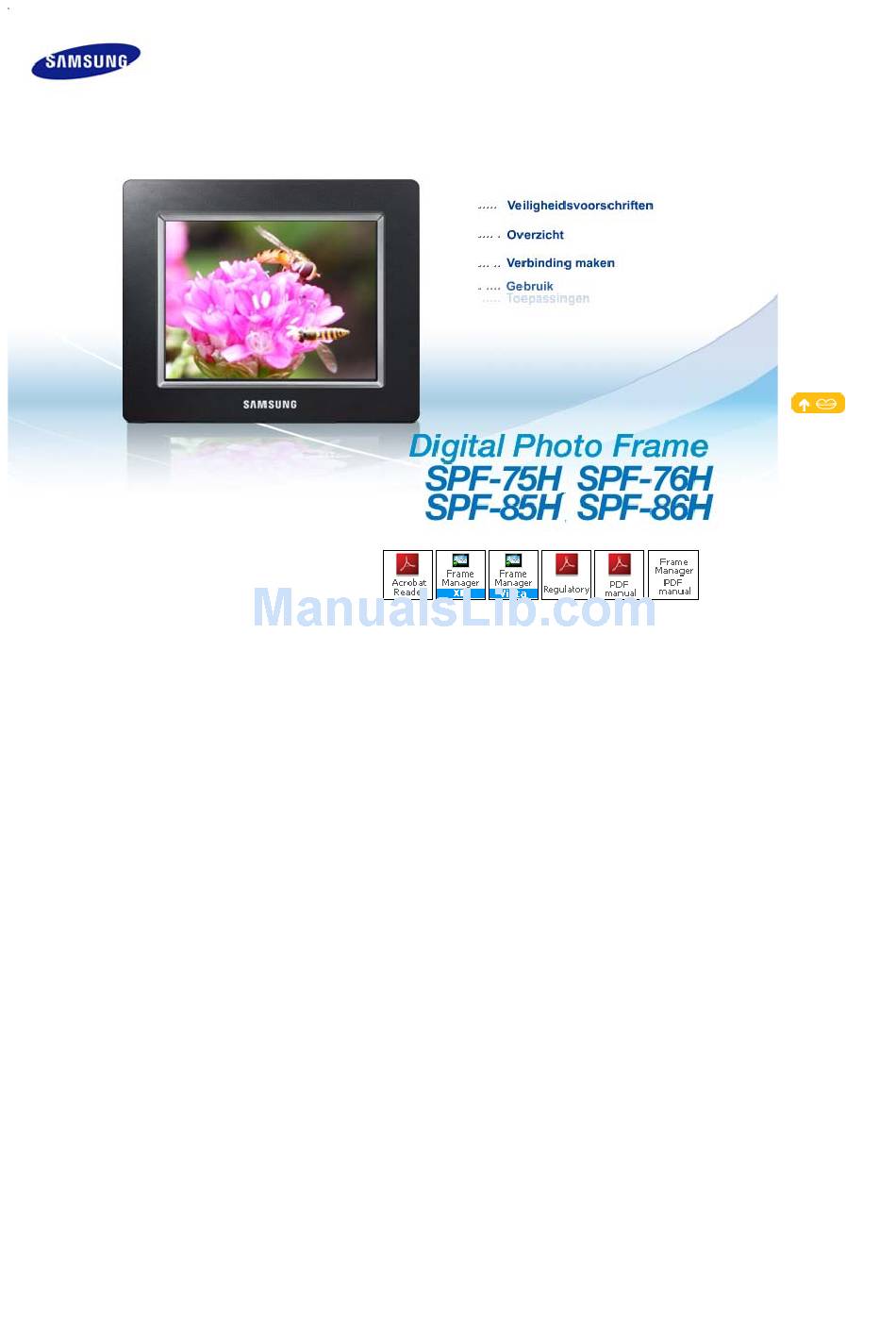

Samsung SPF-75H User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Digital Photo Frame
  5. SPF-75H
  6. User manual

Samsung SPF-75H User Manual

Hide thumbs Also See for SPF-75H:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Samsung SPF-75H

Summary of Contents for Samsung SPF-75H

  • Page 2: Installation

    Safety Symbols Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product. Failure to follow the accompanying directions may lead to serious injury or death. Failure to follow the accompanying directions may lead to minor personal injury or property damage. Safety Symbols Power The images here are for reference only, and are not applicable in all cases (or countries).
  • Page 3 Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may cause electric shock or fire. Failing to do so, may cause electric shock or fire.

  • Page 4: Safety Symbols

    Safety Symbols Installation When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.
  • Page 5 Safety Symbols Using and Cleaning Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the ports at the back of the product, as this may cause electric shock or fire. Never disassemble, repair, or modify the product yourself.
  • Page 6 disconnect the power plug. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life.
  • Page 7 Features Features Enjoy picture's by using memory card and USB. Provides the Mini-Monitor function. Stylish design Premium stylish appearance design product that can be used a decoration on a desk or table Rotating stand allowing vertical/horizontal placement Features Please check that all components are contained in the delivered package. If anything is omitted, contact the local distributor where the product was purchased.
  • Page 8 Power cord Features Front The product color and shape may vary depending on the model. This product is a touch type product. If you lightly touch the button on the right of the product, the button light is turned on. When the button light is turned on, you can then operate each button's menu.
  • Page 9 Connect the power adapter to this jack. Power terminal Connect the power cord to the power terminal of the power adapter. ] Power Button Turns the product on or off. Stand A stand allows both horizontal and vertical installation. If your Digital Photo Frame is installed vertically, you can rotate your photos using the rotation function to fit the vertical installation.
  • Page 10 Make sure to use the USB cable (A-mini B type) provided with the product when connecting your digital photo frame to a PC through the up stream terminal. Connect your Digital Photo Frame to a USB-supported storage Down stream terminal device.

  • Page 11: Memory Card

    Power Connect the power adapter to the Connect the power cord to the power adapter. Plug the power cord for the product into a nearby outlet. Press the button at the right of the product to turn the product on. Power terminal at the back of the product.
  • Page 12 Samsung carries no liability for external device malfunctions caused by using any cable except the standard cables specified for each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.
  • Page 13 If no button is operated for ten (10) minutes, the screensaver starts to protect the monitor. However, the screensaver does not start in the slideshow status. This product is in a touch type. If you touch the button part on the right of the product lightly, the button light is turned on. When the button light is turned on, you can then operate each button’s menu.
  • Page 14 If you press the Menu button, the menu of the selected item is displayed on the screen. Menu Open Opens the selected folder. Copy Copies the selected folder. Delete Deletes the selected folder. The menu displayed when selecting a thumbnail If you press the Menu button, the menu of the selected item is displayed on the screen.
  • Page 15 If you press the Menu button, the menu of the selected item is displayed on the screen. Only photos with a resolution of less than 8000 (width) * 8000 (height) pixels can be displayed on the screen. Sub OSD Upper OSD Effect Select an effect to give when displaying images on the screen.
  • Page 16 Starts a slideshow. Usage Guide Clock If you press the Menu button, the menu of the selected item is displayed on the screen. Sub Menu Menu Month, Day, Year, Hour, Minute, am/pm (When Time Format is set to 12 Hours.) Month, Day, Year, Hour, Minute (When Time Format is set to 24 Hours.) Date and Time Sets the date and time.
  • Page 17 Slideshow, Clock Default, Custom Activation, Hour, Minute, am/pm, Repeat You can update the product by using a USB memory stick or memory card (SD/MS). For the latest firmware file, visit www.samsung.com. Yes, No Model, Firmware Version for the latest firmware update.
  • Page 18 Updating Select [Firmware Update] on the [Settings]-[Update/Reset] page. The update progression is displayed on the screen. When the update finishes, turn your Digital Photo Frame off, remove the USB memory card, and turn your Digital Photo Frame on again, for maximum safety. Do not remove the USB memory card during the update operation.
  • Page 19 The Digital Photo Frame not only allows you to appreciate photos but also provides an additional Mini-Monitor function. The Mini-Monitor is a function for using the Digital Photo Frame as an auxiliary monitor. Its usage is simple as the Digital Photo Frame connects to your PC via a USB cable. This function allows you to work more efficiently at your PC by using an additional monitor.

  • Page 21: Specifications

    Specifications Items Model Name Type Panel Resolution Interface Supported Formats Built-in Memory Memory Card Rating Power Consumption Dimensions (WxHxD) General Weight Items Model Name Type SPF-75H, SPF-76H SPF-85H, SPF-86H Specifications SPF-75H, SPF-76H 7" (17 cm) TFT 800 x 480 RGB 6bit TTL JPEG (Progressive,CMYK JPEG is not supported.) 1 GB One upstream (device 2.0) and one downstream (host 1.1)
  • Page 22 Resolution Panel Interface Supported Formats Built-in Memory Memory Card Rating Power Consumption Dimensions (WxHxD) General Weight The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement. Class B Equipment (Information Communication equipment for residential use) This product complies with the Electromagnetic Compatibility Directives for residential Use and can be used in all areas including common residential areas.

  • Page 23: Troubleshooting

    If the Auto On and Auto Off are set to the same time, they do not operate. Check the time settings. Check whether the FrameManager program is installed. Select Start- Programs - Samsung - FrameManager to restart the FrameManager. Reboot your computer.
  • Page 24 If you need a product service, contact or visit a Samsung For services for network connection and the Server. Services Samsung Electronics web site If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (7267864)
  • Page 25 800-7267 PUERTO RICO 1-800-682-3180 REP. DOMINICA 1-800-751-2676 TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) VENEZUELA 0-800-100-5303 AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) BELGIUM 02 201 2418 CZECH REPUBLIC 800 - SAMSUNG (800-726786) DENMARK 8 - SAMSUNG (7267864) EIRE 0818 717 100 FINLAND 30 - 6227 515 3260 'dites' SAMSUNG (€...
  • Page 26 SLOVAKIA 0800-SAMSUNG (7267864) SPAIN 902 - 1 - SAMSUNG (902 172 678) SWEDEN 075 - SAMSUNG (726 78 64) SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) 0845 SAMSUNG (7267864) ESTONIA 800-7267 LATVIA 8000-7267 LITHUANIA 8-800-77777 KAZAKHSTAN 8-10-800-500-55-500 KYRGYZSTAN 00-800-500-55-500 RUSSIA 8-800-555-55-55...
  • Page 27 8000-4726 http://www.samsung.com/ae...
