- Page 1 ™ Valor 3000 Series Instruction Manual ™ Serie Valor 3000 Manual de instrucciones ™ Valor série 3000 Manuel d’instructions ™ Valor 3000-Serie Bedienungsanleitung ™ Serie Valor 3000 Manuale di istruzioni GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Safety Precautions

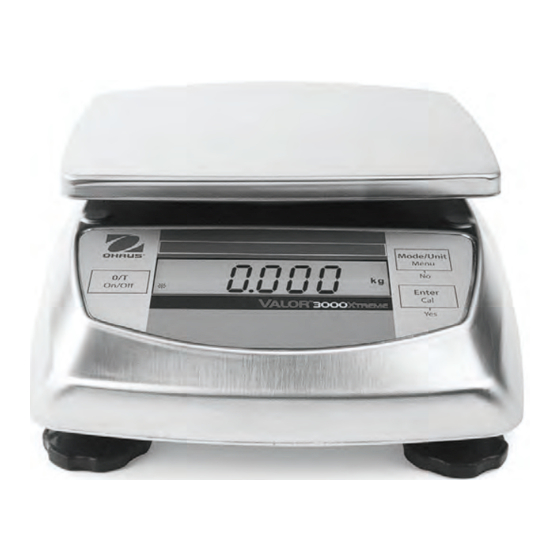

Valor 3000 Series Scales EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Valor 3000 Series Scales. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions: • Verify that the AC Adapter input voltage matches the local AC power supply. •... -
Page 3: Installation
EN-2 Valor 3000 Series Scales TABLE 1-1. CONTROL FUNCTIONS. Button Functions O/T On/Off Short Press: (when off) Turns scale on (when on) Sets display to zero Tares weight of item on pan Long Press: Turns the scale off Short Press Steps through active units and modes MODE/UNIT Long Press:... -
Page 4: Transport Lock
Valor 3000 Series Scales EN-3 Figure 2-1. Leveling the Scale. 2.3. Transport lock Open the battery cover. Move the transport lock switch to “Unlock” position. Install 4 C (LR14) batteries, if desired. Reinstall the battery cover Figure 2-2. Battery Installation. 2.4 Power The AC adapter (included) may be used to power the scale when battery power is not available. -
Page 5: Initial Calibration
(sold separately) on the pan. See Table 2-1 for appropriate weights. The display shows -C- while the reading is stored. The display returns to the previous application mode and scale is ready for use. TABLE 2-1. CALIBRATION WEIGHTS. MODELS V31XH202 V31XH402 V31XH2 V31XH4 V31X501... -
Page 6: Percent Mode
Valor 3000 Series Scales EN-5 3.2 Percent Mode Use this mode to measure the weight of a sample as a percentage of a reference weight. 1. Press MODE/UNIT/Menu until Set.rEF and the % icon are displayed. 2. Press No to use the reference weight in memory and proceed to step 6. 3. -
Page 7: Menu Navigation
EN-6 Valor 3000 Series Scales 4. SETTINGS The Menu allows the user to customize scale settings. 4.1 Menu Navigation Press and hold MODE/UNIT/Menu button until SEtUP is displayed, then release it. Press Yes to enter the displayed menu. or press No to advance to the next menu. Once in the menu, press Yes to view the menu item setting or press No to move to the next menu item. - Page 8 Valor 3000 Series Scales EN-7 Menu Default Stability Range Auto zero 0.5d Tracking Filter Level Back Light Auto Auto off LEGAL FOR TRADE This menu item is only included in models V31XW301, V31XW3, V31XW6, V31X3N and V31X6N. Refer to Section 5 for details. Set the legal for trade operation to ON or OFF.
- Page 9 EN-8 Valor 3000 Series Scales 4.3 Unit/Mode Menu GRAM UNIT Set grams ON or OFF. KILOGRAM UNIT Set kilograms ON or OFF. POUND UNIT Set pounds ON or OFF. OUNCE UNIT Set ounces ON or OFF. If ON is selected, set DEC (decimal ounces) or FrA (fractional ounces) POUND OUNCE UNIT Set pound ounces ON or OFF.
-
Page 10: Legal For Trade
Valor 3000 Series Scales EN-9 5. LEGAL FOR TRADE When model V31XW301, V31XW3, V31XW6, V31X3N or V31X6N is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. - Page 11 EN-10 Valor 3000 Series Scales 5.3 Sealing The local weights and measures official or authorized service agent must apply a security seal to prevent tampering with the settings. Refer to the illustrations below for sealing methods. Wire Seal Paper Seal Remove the spacers under the cross Place the paper seals over the screws drilled screws.
-
Page 12: Maintenance
United States call toll-free 1-800-526-0659 between 8.00 AM and 5:00 PM EST. An Ohaus product service specialist will be available to provide assistance. Outside the USA, please visit our web site, www.ohaus.com to locate the Ohaus office nearest you. -
Page 13: Technical Data
Operability is assured at ambient temperatures between 0°C and 40°C Power: AC Adapter (supplied), 9 - 12 VDC, 0.5 A output, 4 C (LR14) batteries (not supplied) Pollution degree: 2 Installation category: III 7.1 Specifications TABLE 7-1. SPECIFICATIONS Model V31XH202 V31XH402 V31XH2 V31XH4 V31X501 Capacity 2000 4000 Repeatability (g) 0.01... - Page 14 Valor 3000 Series Scales EN-13 TABLE 7-1. SPECIFICATIONS V31XW3/ V31XW6/ Model V31X3 V31X6 V31XW301 V31X3N V31X6N Capacity 3000 6000 3000 6000 Repeatability (g) Linearity (g) Approval Class IP65 / * Ingress Protection Weighing Units g, kg, lb, oz, lb:oz Application Weigh, Percent weighing, Specific Gravity, Fluid Ounces Modes Tare range...
-
Page 15: Capacity And Readability
EN-14 Valor 3000 Series Scales 7.2. Capacity and Readability TABLE 7-2. CAPACITY AND READABILITY SECURITY MODELS UNITS SWITCH V31XH202 V31XH402 V31XH2 V31XH4 V31X501 200.00 400.00 2000.0 4000.0 500.0 x 0.01 x 0.01 x 0.1 x 0.1 x 0.1 0.20000 0.40000 2.0000... - Page 16 Valor 3000 Series Scales EN-15 TABLE 7-2. CAPACITY AND READABILITY MODELS SECURITY UNITS V31XW3 / V31XW6 / SWITCH V31X3 V31X6 V31XW301 V31X3N V31X6N 300.0 3000 6000 x 0.2 3000 6000 300.0 3000.0 6000 x 0.1 x 0.5 0.3000 3.000 6.000 x 0.0002 x 0.001 x 0.002...
- Page 17 EN-16 Valor 3000 Series Scales 7.3 Drawings Figure 7-1. All Models except V31XH202, V31XH402, V31X501 Figure 7-2. Models V31XH202, V31XH402, V31X501 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 18 Valor 3000 Series Scales EN-17 Accessories Slide accessories over the rear of the pan assembly and position them as shown in the illustration below. Figure 7-3. Sandwich pan Figure 7-4. French fries holder Figure 7-5. Ice cream cone holder GlobalTestSupply www.
- Page 19 Standard This product conforms to the EMC directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the Non-automatic Weighing Instruments Directive 2009/23/EC. The complete Declaration of Conformity is available online at www.ohaus.com/ce. AS/NZS 61000.6.1, AS/NZS 61000.6.3 NSF/ANSI 169 NSF/ANSI /3-A 14159-1...
- Page 20 Should this device be passed on to other parties (for private or professional use), the content of this regulation must also be related. For disposal instructions in Europe, refer to www.ohaus.com/weee. Thank you for your contribution to environmental protection. FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 21: Limited Warranty
During the warranty period Ohaus will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to Ohaus.
