USER GUIDE
ups 305
250 VA, 425 VA, and 600 VA
A
Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sola 305 and is the answer not in the manual?

Questions and answers

Related Manuals for Best Power Sola 305

Summary of Contents for Best Power Sola 305

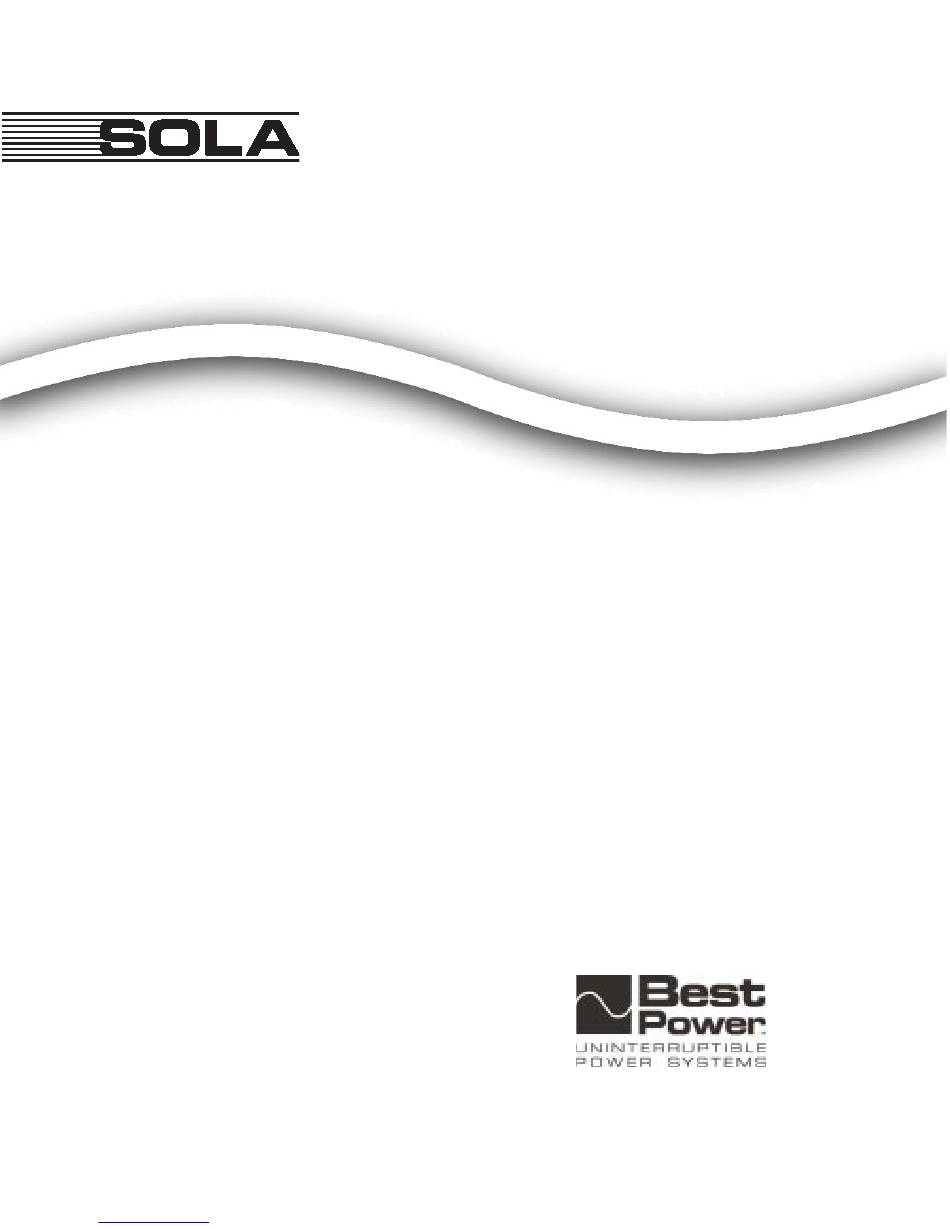

  • Page 1 USER GUIDE ups 305 250 VA, 425 VA, and 600 VA Company...
  • Page 2 Important Notice The UPS ground (earth) conductor carries leakage current from the loads in addition to any leakage current generated by the UPS. This UPS generates no more than 1 mA of current. To limit the total leakage current to 3.5 mA, the load leakage must be limited to 2.5 mA. The three- wire receptacle that you plug the UPS into must have a good (low-impedance) ground (protec- tive earth) connection to provide a safe path for leakage current.
  • Page 3 ® u p s 3 0 5 250 VA, 425 VA, and 600 VA User Guide LTM-1322A © Copyright 1998, Best Power. All rights reserved.
  • Page 4 This page intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety Instructions ........... .2 UPS Features .

  • Page 6: Safety Instructions

    For assistance, call the SOLA Service or your local SOLA office. If the SOLA 305 has been damaged during shipment, call your vendor immediately. If the SOLA 305 is stored, the batteries should be recharged every 6 months. If stored above Celsius, recharge the batteries more often.

  • Page 7: Ups Features

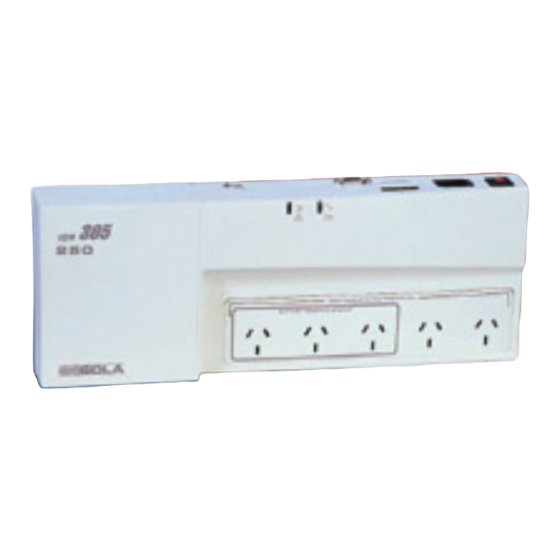

    UPS Features The SOLA 305 provides protection against power problems, including power outages, brownouts and surges. It also provides spike suppression and line noise filtering to protect your equipment. Use the drawings below to identify features of the unit. 250 VA Model...

  • Page 8: Quick Startup

    This will take up to 8 hours after a full discharge while the SOLA 305 is fully loaded. To start the unit, press the On/Standby rocker switch (located left of center on the back panel).

  • Page 9: Symbols, Leds And Audible Alarms

    Symbols, LEDs and Audible Alarms The front panel LEDs and an audible alarm indicate the unit status. The unit beeps whenever the unit is on battery power or an alarm is present. See Table 1 for information about the LEDs and Table 2 for information about beep coding.

  • Page 10: Troubleshooting

    Two beeps every five seconds. to charge. If the batteries do not (Low-battery Operation) recharge, the SOLA 305 will not operate on battery power, or it will beep twice every five seconds immediately. In this case, phone SOLA’s Customer Service.

  • Page 11: Communication Port

    SOLA dealer. Pinouts Pin 1 RS232 Level Shutdown: +12 VDC signal held for 5 seconds on this pin shuts the SOLA 305 down 120 seconds later. The UPS restarts after 15 seconds when utility power returns. Pin 2 Unused.
  • Page 12 Operating Temperature: 0° - 40° C. Storage Temperature: -15° to +50° C. Battery life is reduced above 25° C. If the SOLA 305 unit is stored, the batteries should be recharged every 6 months. If stored above 25° C, recharge the batteries more often.

  • Page 13: Warranty

    Warranty Warranty Information This Warranty is subject to SOLA’s standard Conditions of Sale which govern all sales of products by SOLA Australia Ltd. 1. SOLA products, in general, are warranted against failure due to faulty materials and/or workmanship for a period of two years from despatch date (ex SOLA store) as per invoice. The Ferroresonant and 95 Series Power Conditioners and SOLA Dry Type Transformers have an extended warranty - 5 years from date of despatch.
  • Page 14 8. SOLA reserves the right to charge for replacement batteries if within the one year guarantee period replacement batteries are necessary as a result of misuse or misapplication by the purchaser or end user. SOLA Never Stops Innovating...

  • Page 17: Sola Australia Offices

    SOLA Australia Offices Head Office - Melbourne SOLA Australia Ltd. 13 Healey Road Dandenong VIC 3175 Phone: 61-3-9706-5022 Fax: 61-3-9794-9150 National Service and Repair Centre Free Call: 1800 034 401 (except Melbourne) 9768 3105 (Melbourne only) Customer Service Offices Adelaide PO Box 481, Marlestone Business Centre SA 5033 Phone: 08-8347-3622...
  • Page 18 Phone: 39-2-6600661-2 Phone: 41-56-4183030 Fax: 49-9131-777050 Fax: 39-2-6122481 Fax: 41-56-4183033 Best Power Technology Pte. Ltd. Best Power Technology Mexico, S.A de C.V 30 Prinsep Street #07-00 Golfo de Riga, 34, Colonia Tacuba, Mexico D.F. 11410 SINGAPORE 188647 MEXICO Phone: 65-430 6128...
