- Page 1 Best 610 Installation and Operation Manual Single-phase Input and Output B6106000U and B610010KU Models LTM-1313C © 1999 Best Power. All rights reserved.
- Page 2 Best Power is committed to outstanding customer service. If you have a problem or question, our Worldwide Service offices are happy to help you. Simply refer to the list of Best Power offices below and contact the office nearest you.
-
Page 3: Table Of Contents
All transfers take place with no break in power to ensure uninterrupted operation of your equipment. Please read this manual carefully to make sure you can get the full benefit of the B610 features. After installing the UPS, please return the warranty card in this manual to help us ensure that you get immediate service... -
Page 4: 200 Ups Features

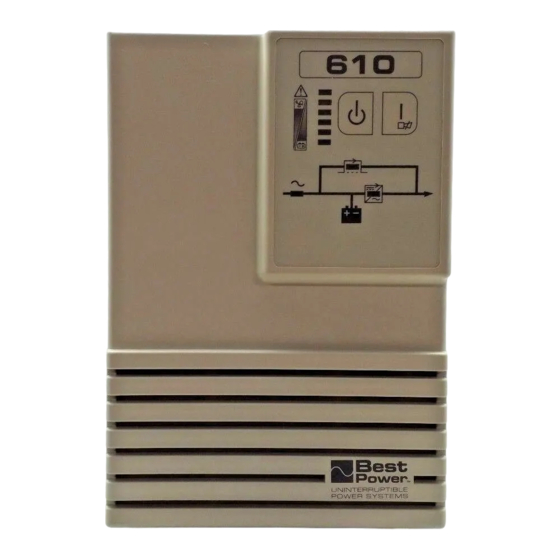

200 UPS Features Communication Port BestDock with Best Relay (AS/400) Card 6 kVA Display (see page 5) Note: The front panel may Input Breaker Output Breaker differ from Battery Connector this drawing. Conductor Box Figure 1 BestDock with Best Relay Communication 10 kVA (AS/400) Card... -
Page 5: 300 Installation (For Qualified Personnel Only)
Alarm LED Off/Bypass Switch On Switch and Alarm Silence Percent Load LEDs (on line) or Battery Capacity LEDs (on inverter/battery power) Bypass LED Line LED Inverter LED Battery LED Figure 3 300 Installation (for Qualified Personnel Only) 301 Cautions CAUTION UPS units contain hazardous AC and DC voltages. -
Page 6: 302 Installation And Service Clearances
• If the UPS batteries are in a separate cabinet, the battery cabinet should be as close to the UPS as possible. If the batteries will be farther away from the unit than the standard cables allow, call the nearest Best Power office for assistance. - Page 7 UPS input and output overcurrent protection are provided on the back panel of the UPS. You must provide some means for disconnecting input AC within sight of the UPS. Best Power strongly recommends including a means of bypassing the UPS from the critical load for maintenance.
- Page 8 Make all connections exactly as shown on Figure 7 and 8 to make sure the phasing is correct. Good ground connections are necessary to reduce electrical noise and make UPS and load operation safe. Follow the grounding guidelines on the Installation Wiring Diagram. IMPORTANT: If your unit has an optional bypass switch, follow the instructions that came with the bypass switch to install it with the UPS.
- Page 9 250-66. If the UPS input circuit conductors are larger than #8 AWG (8.36 mm ), Best Power requires the grounding electrode NOTE 7: See Section 901for installation dimensions and Section conductor to be the same size (ampacity) as the largest UPS 302 for service clearances before installing the UPS.
- Page 10 Figure 7B: Installation Wiring Diagram for B610 6 & 10 kVA Models with External MBB Bypass Switch (L1, L2, N) • 208 Input, 120/240 Output • 208 Input, 208 or 240 Output • 208 Input, 120/208 Output • 60 Hz 220 Input, 220 Output (Mexico) •...
- Page 11 Figure 7C: Installation Wiring Diagram for B610 6 & 10 kVA Models with MBB External Bypass Switch (1, L2, N) and External Isolation Transformer 60 Hz 208 or 480 VAC Source with Input Step-Up or Step-Down Isolation Transformer 240 UPS Input - 120/240 UPS Output...
- Page 12 Figure 7D: Installation Wiring Diagram for B610 6 & 10 kVA Models with External BBM Bypass Switch Note 4 Note 11 Note 2 Note 4 AC FROM AC TO UPS OUTPUT UPS INPUT 9 10 11 11 12 12 15 14 13...
- Page 13 Figure 7E: Installation Wiring Diagram for B610 6 & 10 kVA Models with External BBM Bypass Switch and External Isolation Transformer Note 9 Note 1 Note 2 Note 11 Note 4 Note 10 AC FROM AC TO UPS OUTPUT UPS INPUT...
- Page 14 The voltages written in the first column should be similar to the voltages in the second column. (They may be slightly different.) If voltages are more than a few volts apart, check the terminal strip connections and correct any wiring problems. If you need help, call Best Power's Worldwide Service or your local Best Power office.
- Page 15 8 to 12__________ VAC Measure the AC voltage between the following points on the bypass switch terminal strip. This reading must not be more than 1 VAC. If it is, call Best Power's Worldwide Service or your local Best Power office.
- Page 16 Figure 8: UPS Output Wiring Connections Find the output wiring configuration (Figure 8A-8E) for your UPS input voltage, frequency, and output voltage(s). Make the neutral-to-ground (neutral-to-earth) connection first. Then. wire the UPS output as shown. 50 or 60 Hz 50 or 60 Hz 240 In - 120/240 Out 208 In - 208 Out DIP Switch set to 240*...
-
Page 17: 305 External Battery Installation
305 External Battery Installation CAUTION UPS units contain hazardous AC and DC voltages. A qualified service person must install the UPS, AC mains supply and output cabling service, and external batteries according to local and national codes and must be familiar with batteries and the required precautions. The nominal battery voltage for the UPS is 240 VDC. - Page 18 Figure 11 UPS; call the nearest Best Power office for more information. 4. At the UPS, the conductor box has knockouts/plugs for AC input, AC output, and DC cables. The knockout for DC should already have been removed during AC installation. Route the battery cables and the ground wire through this opening.
-
Page 19: 306 Setting The Output Voltage Dip Switch
5. At the UPS, connect the ground wire to the ground (earth) terminal near the DC terminals as shown in Figure 12. Connect the positive (+) cable to the + UPS DC terminal, and the negative (-) cable to the - UPS DC terminal. 6. -
Page 20: 400 Startup
400 Startup The UPS can be started once the AC wiring has been installed (as well as any optional battery cabinets or switches). Make sure you adjust the voltage selection switch (Section 306) if necessary before starting the UPS. CAUTION To avoid possible equipment damage or personal injury, assume that the UPS terminals have AC voltage present whenever AC input voltage or DC battery voltage is applied. -
Page 21: 500 Interpreting The Front Panel Leds
500 Interpreting the Front Panel LEDs 501 Line and Load Level LEDs During normal operation, the UPS rectifies the AC input and uses it to charge the batteries and feed the inverter. The Line (~) LED shown below is on. In this mode, the five front panel LEDs shown in the drawing show the percentage of the rated UPS power that your equipment is using. -
Page 22: 503 Bypass Led
Important: Silencing the alarm does not solve the problem that caused it. If you need to contact Best Power because of the alarm, make sure that you have your unit’s model number and serial number available when you call. - Page 23 Best Power office. High output voltage / inverter short circuit. The Phone the nearest Best Power office. UPS will sound a constant tone. High DC bus voltage. The UPS will sound a Phone the nearest Best Power office.
-
Page 24: 600 Troubleshooting
Section 900. Make sure the fuse or circuit breaker on the back panel has not been tripped. If you are not able to solve the problem, contact the nearest Best Power office. Make sure you have your unit’s model number, serial number, the date of the purchase, and a full description of the problem available when you call. -
Page 25: 700 Communication
700 Communication 701 The Communication Port The DB9 Communication Port on the UPS back panel provides two types of signals: open collector optocouplers and serial (RS232). For RS232 communication, the data format is Baud Rate: 2400 bps Data Length: 8 bits Ending Code: 1 bit Parity Bit: None... -
Page 26: 703 Bestlink™ Snmp/Web Adapter Option And Bestdock™ Communication Slot
Using Simple Network Management Protocol (SNMP), system administrators can easily monitor and manage remote UPS units that protect key network devices like servers, routers, and hubs. Best Power’s SNMP Adapter’s provide a self-contained link between the UPS and an Ethernet or Token Ring LAN/WAN. The adapters allow the system administrator to communicate with the UPS even after the protected device goes down. -
Page 27: 800 Maintenance And Service
UPS back panel. If you are requesting repair under warranty, please include the proof of purchase date in your correspondence. If you need to return a unit or component, call the nearest Best Power office to obtain an RA (Return Authorization) number before shipping the goods. 802 Storing the UPS If you store the UPS, keep the temperature in the UPS location between -15°... -
Page 28: 900 Specifications
900 Specifications 901 Specification Table Model 6 kVA* / 4.2 kW 10 kVA* / 7 kW AC Input Voltage: 176-276 VAC 176-276 VAC (nominal 208, 220, 230, or 240) (nominal 208, 220, 230, or 240) Maximum Current: 208 VAC = 27.3 A 104 VAC = 54.6 A 208 VAC = 48.0 A 104 VAC = 96.0 A... -
Page 29: 904 Environment
Output Voltage Distortion: <4% THD at full linear load. 904 Environment Operating Temperature:0° to 40° C (32° to 104° F). 0° to 35° C (32° to 95° F) at elevations above 1500 m above sea level. Storage Temperature: -15° to 55° C (5° to 131° F). Relative Humidity: 0% to 90% noncondensing. -
Page 30: 1000 Warranty
No warranty is made with respect to other products sold by BEST POWER which do not bear the name BEST POWER, and no recommendation of such other product shall imply or constitute any warranty with respect to them. - Page 31 1. The replacement or repair of the transient voltage surge suppression circuitry in each Product that is returned intact to BEST POWER and which shall appear to BEST POWER, upon inspection, to have been defective in material or workmanship or to have been damaged through normal use;...
- Page 32 For Units in the United States Only: Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
- Page 33 WARRANTY REGISTRATION Fill out the information listed below, and retain this page for your records. Send a photocopy of this page by mail or by fax to your nearest Best Power office if you cannot register your warranty information online.
