Armacost Lighting RibbonFlex Home 421502 Quick Start Manual

SAFETY INFORMATION

DANGER: Risk of eye damage. Do not stare directly at the LED chips
■
of this LED strip.
CAUTION: Do not power LED tape while coiled on reel.
■
IMPORTANT: Always observe polarity for 12-volt connections, positive
■
(+) to positive and negative (–) to negative.
IMPORTANT: Do not install Class 2 low voltage wiring in the same runs
■
as AC main power. If AC and low voltage wires cross, keep them at
90-degree angles. Use only insulated staples, plastic ties, or wire
support clips to secure cords and wires.
NOTICE: LED flexible tape lighting rating: 12VDC 2.5A.
■
Only use the 12-volt LED lighting power supply which has been
■
provided with this kit.
Do not bend, crush or pull the cable. Protect from sharp edges,
■
oil and heat.
For indoor/dry location use only.
■
Ensure the connectors are securely fastened before operating the tape.
■
Electrical waste should not be disposed of with household waste.
■
Please recycle where facilities exist.

Two-year limited warranty

WHAT IS COVERED
The manufacturer warrants this fixture to be free from defects in materials
and workmanship for a period of two (2) years from date of purchase.
This warranty applies only to the original consumer purchaser and only
to products used in normal use and service. If this product is found to be
defective, the manufacturer's only obligation, and your exclusive remedy, is
the repair or replacement of the product at the manufacturer's discretion,
provided that the product has not been damaged through misuse, abuse,
accident, modifications, alteration, neglect, or mishandling. This warranty
shall not apply to any product that is found to have been improperly
installed, set-up, or used in any way not in accordance with the instructions
supplied with the product. This warranty shall not apply to a failure of the
product as a result of an accident, misuse, abuse, negligence, alteration,
faulty installation, or any other failure not relating to faulty material or
workmanship. This warranty shall not apply to the finish on any portion of
the product, such as surface and/or weathering, as this is considered normal
wear and tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specifically disclaims any warranty,
whether expressed or implied, of fitness for a particular purpose, other than
the warranty contained herein. The manufacturer specifically disclaims any
liability and shall not be liable for any consequential or incidental loss or
damage, including but not limited to any labor/ expense costs involved in
the replacement or repair of said product.
Contact customer support at 410-354-6000, support@armacostlighting.com,
or visit armacostlighting.com/support.

Installation considerations

Where will you locate your power supply?
■
How will you run and conceal the wires to your LED tape lighting?
■
What is the best mounting position for the LED tape light to achieve
■
your desired effect?
See the section titled "Mounting options" for cabinet lighting
■
placement tips.

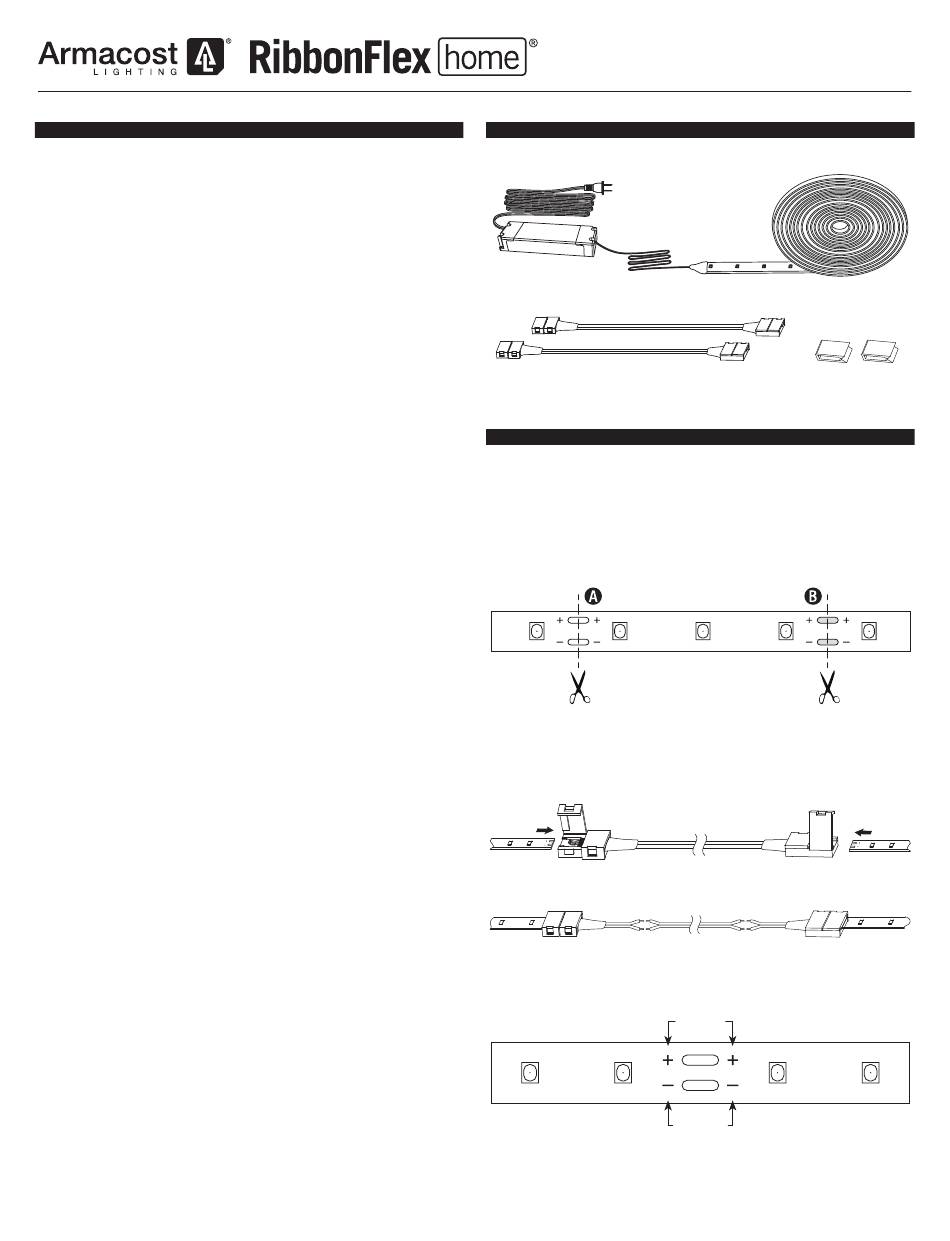

AC Dimmable LED Tape Light Kit

PACKAGE CONTENTS

(pre-assembled)
Plug-in power supply
Wire Lead Connectors (optional use)

INSTALLATION

Cutting the tape light (optional)

To use the included connectors, cut the LED tape with scissors in the
■
center of a copper pad (position A) as shown, or attach the connector
to the copper pad found at the end of the tape.
The tape can also be cut at silver solder joints (position B), but this
■
cut point should be used for soldered connections only
Cut tape
at center of
copper pads
Use a wire lead connector to make turns and go around corners. They
■
can also be spliced and extended for gaps of any size. 18-20 AWG
wire is recommended for custom lengths (not included).
Add wire to fit needs
IMPORTANT: Make sure to observe polarity when making connections,
■
positive to positive and negative to negative. Check to see that the
wire colors and the polarity markings printed on the tape line up.
NOTE: Be sure all 12-volt connections are secure and protected from
■
electrical shorting. Options include electrical tape, small wire nuts,
crimp connectors, etc.
Item 421502
16 feet LED
tape light
Wire support clips
Okay to cut at silver
solder joints, but
do not use connector
+
–
Positive
Negative
1
