Summary of Contents for Simpli Home ARTISAN AXCART11-HB

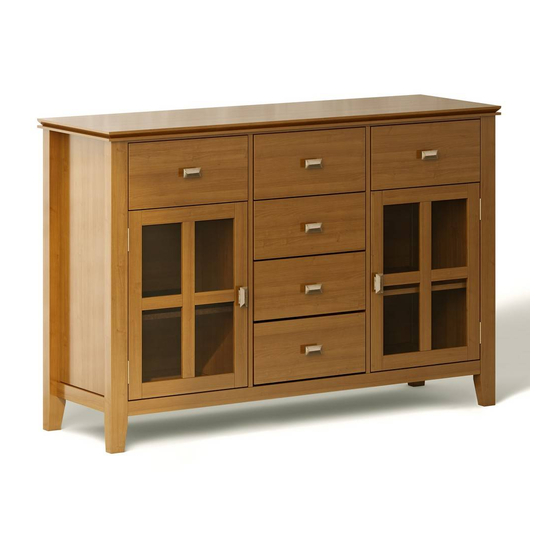

- Page 1 S IMP HOME ® ARTISAN / HOLDEN / STRATFORD SIDEBOARD BUFFET MODEL # AXCART11-HB 1/24...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCART11-HB PART DESCRIPTION BOTTOM SHELF SHELF QTY 1 QTY 1 QTY 2 LEFT DIVIDER LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT BACK PANEL DOOR (L&R Same) QTY 1 QTY 1 QTY 2 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCART11-HB PART DESCRIPTION Warning Label DRAWER FRONT RIGHT BACK PANEL MIDDLE BACK PANEL QTY 6 QTY 1 QTY 1 DRAWER BACK LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 6 QTY 6 QTY 6 DRAWER BOTTOM BOTTOM SUPPORT LEG QTY 6 QTY 2 NEED HELP? For help with assembly or if you are missing a part,...
-
Page 7: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCART11-HB HARDWARE DESCRIPTION CAM LOCK PIN HANDLE ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK M6 X 30mm M6 X 30mm M4 X 30 mm QTY 24 SETS QTY 12 QTY 36 QTY 8 SETS PHILLIPS SCREW ROUND HEAD ALLEN KEY SHELF SUPPORT... - Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCART11-HB 8/24...
- Page 9 ASSEMBLY MODEL # AXCART11-HB STEP-1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front H . 2. Use Phillips screwdriver to secure Cam Locks. 9/24...
- Page 10 ASSEMBLY MODEL # AXCART11-HB STEP-2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides IL , IR . 2. Insert 2 Cam Locks 3 into guide holes on each Drawer Side IL , IR . 3. Use Phillips screwdriver to secure Cam Locks. 10/24...
- Page 11 ASSEMBLY MODEL # AXCART11-HB STEP-3 1. Slide Drawer Bottom K firmly into slots on Drawer Sides IL , IR and Drawer Front H . STEP-4 1. Align Drawer Back J with Drawer Bottom K and press firmly into slot . 2.
- Page 12 ASSEMBLY MODEL # AXCART11-HB STEP-5 NOTE: The screwdriver is not included in the hardware pack. 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front H . Repeat Step 1-5 for the other five drawers. 12/24...
- Page 13 ASSEMBLY MODEL # AXCART11-HB STEP-6 1. Attach Dividers EL , ER to Bottom Shelf B using 6 Allen Key Screws 2 (3 Screws / each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 13/24...
- Page 14 ASSEMBLY MODEL # AXCART11-HB STEP-7 1. Attach Bottom Shelf B to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 14/24...
- Page 15 ASSEMBLY MODEL # AXCART11-HB STEP-8 1. Attach Top A to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Attach Top A to Dividers EL , ER using 6 Allen Key Screws 2 ( 3 Screws / each Divider ).
- Page 16 ASSEMBLY MODEL # AXCART11-HB STEP-9 1. Attach two Bottom Support Leg L to Bottom Shelf B using 8 Phillips Screws 11 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. 16/24...
- Page 17 ASSEMBLY MODEL # AXCART11-HB STEP-10 NOTE: The screwdriver is not included in the hardware pack. Note: Warning Label 1. Attach the Back Panels GL , GR , G to back frame of cabinet using Phillips Screws Round Head 6 through guide holes from panel. 2.
- Page 18 ASSEMBLY MODEL # AXCART11-HB STEP-11 First Step Last Step (After adjust the door) 18/24...
- Page 19 ASSEMBLY MODEL # AXCART11-HB STEP-12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 7 to bottom corner of Doors F using Phillips Screws 10 into pre-drilled holes on Doors F . 2. Attach Magnet 7 using Phillips Screws 10 into pre-drilled holes on Bottom Shelf B . 3.
- Page 20 ASSEMBLY MODEL # AXCART11-HB STEP-13 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 20/24...
- Page 21 ASSEMBLY MODEL # AXCART11-HB STEP-14 1. Insert assembled drawers into glides on assembled sideboard. 21/24...
- Page 22 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-15 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 24: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
