Simpli Home brooklyn+max WyndernHall AXCHOL005-72BL Manual

Artisan / holden / stratford 72 inch tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual

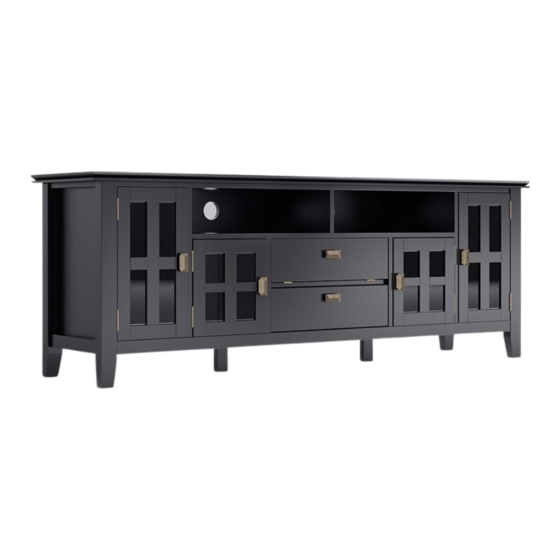

Artisan / Holden / Stratford
72 inch TV Media Stand
Model # AXCHOL005-72BL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the brooklyn+max WyndernHall AXCHOL005-72BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home brooklyn+max WyndernHall AXCHOL005-72BL

Summary of Contents for Simpli Home brooklyn+max WyndernHall AXCHOL005-72BL

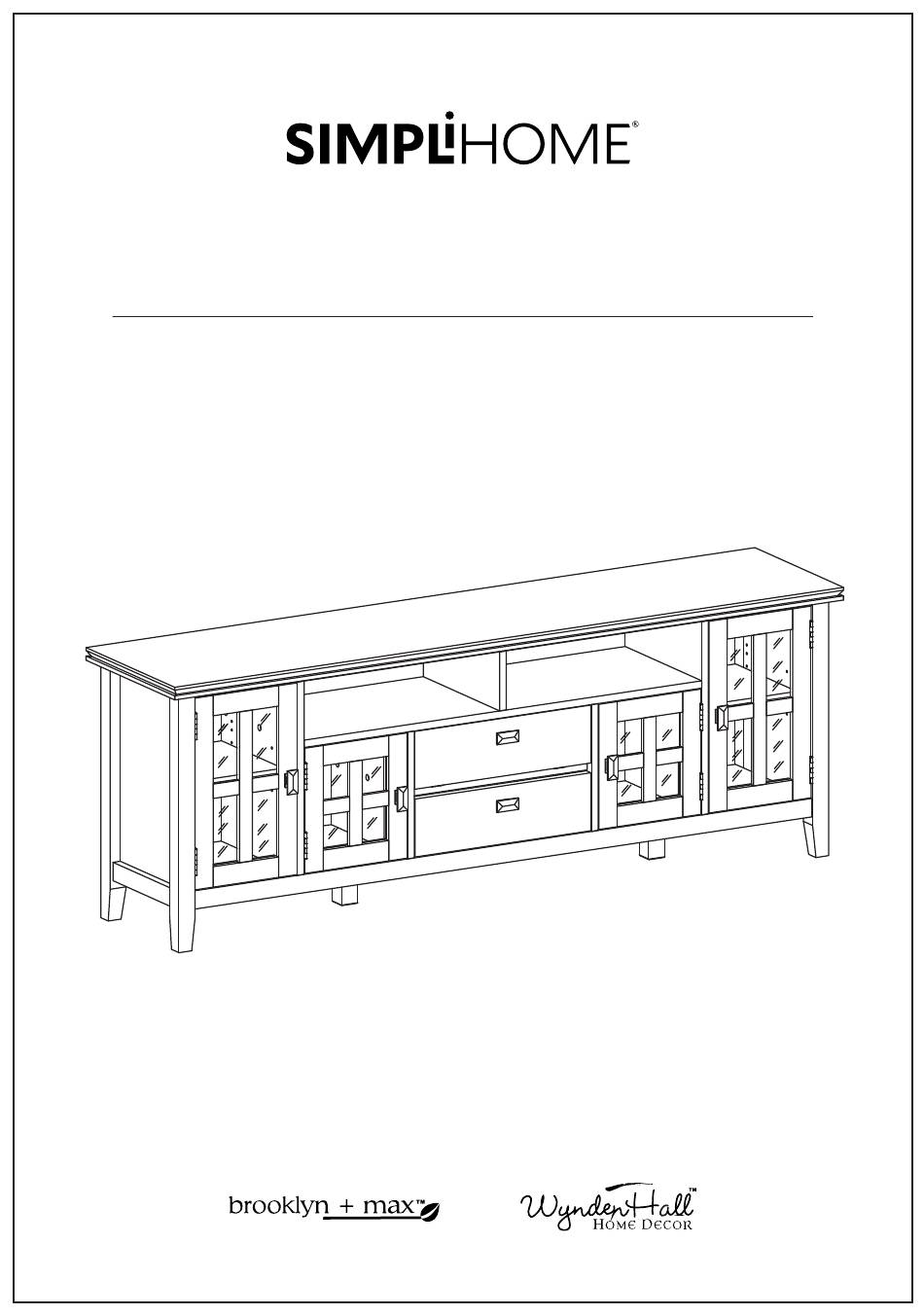

  • Page 1 Artisan / Holden / Stratford 72 inch TV Media Stand Model # AXCHOL005-72BL...
