Summary of Contents for Simpli Home AXCHOL005

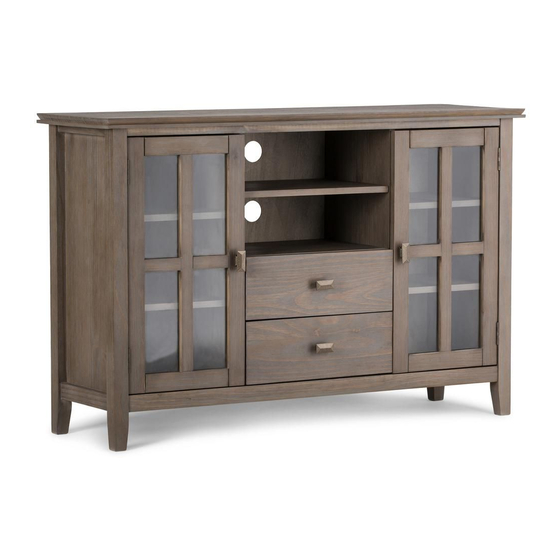

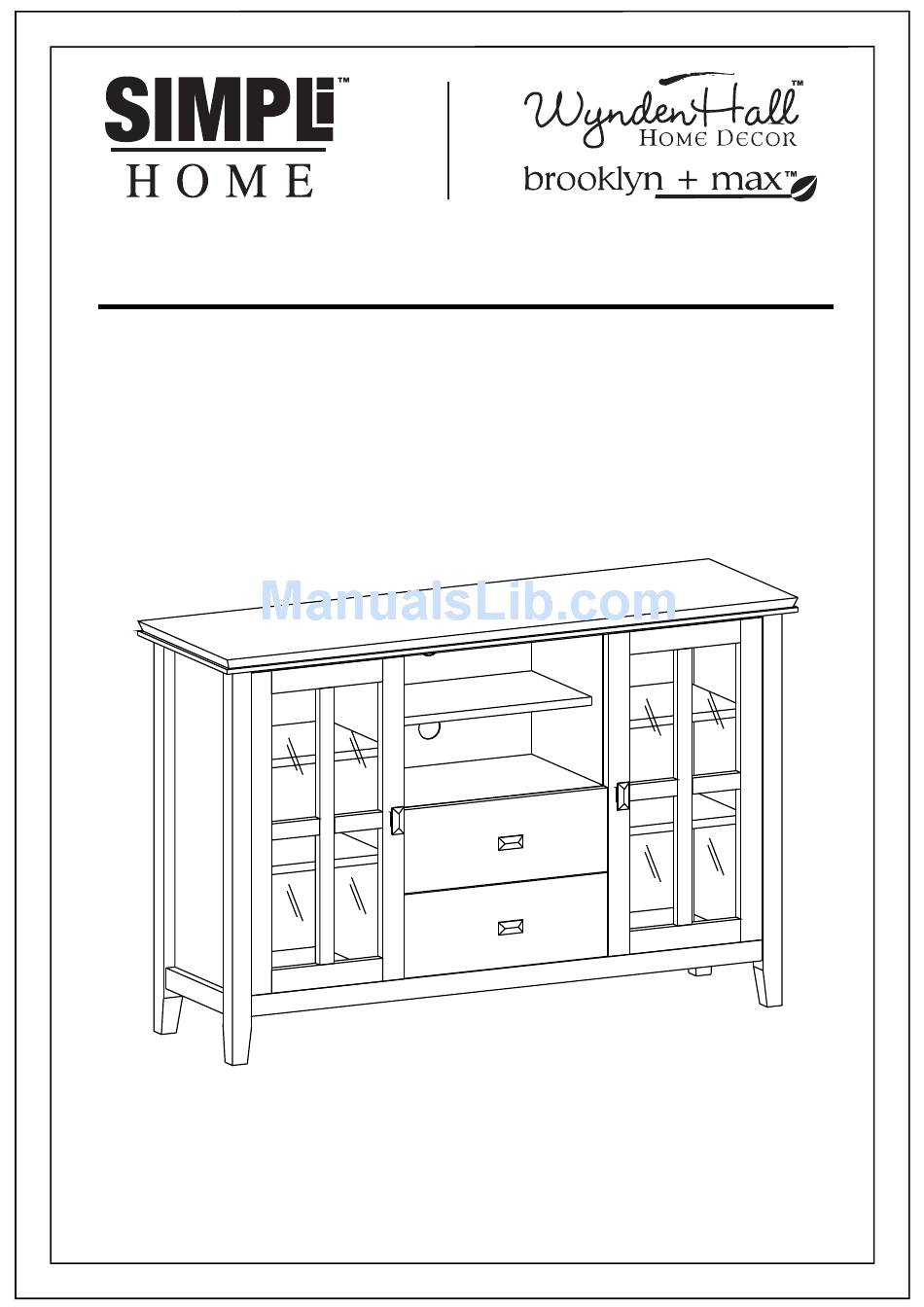

- Page 1 ARTISAN / HOLDEN / STRATFORD TALL TV MEDIA STAND MODEL # AXCHOL005 1/19...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/19...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 4 PRE ASSEMBLY INFORMATION MODEL # AXCHOL005 PARTS DESCRIPTION CENTRE SHELF BOTTOM SHELF SIDE QTY 1 QTY 1 QTY 1 QTY 1 PAIR DOOR DIVIDER SHELF PART SHELF PART QTY 1 PAIR QTY 1 PAIR QTY 4 QTY 1 DRAWER FRONT...
-
Page 5: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # AXCHOL005 HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 20 SETS PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15 mm... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # AXCHOL005 6/19...
- Page 7 ASSEMBLY MODEL # AXCHOL005 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front L . 2. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side M . 3. Align Cam Lock Pins with Cam Lock and attach Drawer Side M .
- Page 8 ASSEMBLY MODEL # AXCHOL005 STEP 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot. 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten.
- Page 9 ASSEMBLY MODEL # AXCHOL005 STEP 5 1. Attach 3 Cam Lock Pins 2 to each Divider E . 2. Align Cam Lock Pins with pre-drilled holes and attach Center Shelf C . 3. Insert 6 Cam Locks 2 into pre-drilled holes on Center Shelf C .
- Page 10 ASSEMBLY MODEL # AXCHOL005 STEP 6 1. Attach Dividers E to Bottom Shelf D using 6 Allen Key Screws 1 through pre-drilled holes. 10/19...
- Page 11 ASSEMBLY MODEL # AXCHOL005 STEP 7 1. Attach 6 Cam Lock Pins 2 to 2 Sides B using guide holes. 2. Align Cam Lock Pins with pre-drilled holes on Bottom Shelf D and attach Bottom Shelf D . 3. Insert 6 Cam Lock 2 into pre-drilled holes on Bottom Shelf D .
- Page 12 ASSEMBLY MODEL # AXCHOL005 STEP 8 1. Attach Top A to 2 Sides B and 2 Divider E using Allen Key Screws 1 through pre- drilled holes. 2. Use Allen Key 3 to tighten screws. Do not over tighten. 12/19...
- Page 13 ASSEMBLY MODEL # AXCHOL005 STEP 9 1. Using Phillips Round Head Screw 6 attach Back Panel I , J , K to back of TV Stand. 13/19...
- Page 14 ASSEMBLY MODEL # AXCHOL005 STEP 10 1. Attach Hinges on Doors F to Sides B using Phillips Screws 4 into guide holes. 2. Attach Magnet Plates 8 to bottom corner of Door F using Phillips Screws 5 into guide holes on Doors F .
- Page 15 ASSEMBLY MODEL # AXCHOL005 STEP 11 1. Use Shelf Supports 9 for each Shelf H or G in desired location . 2. 2 Shelf Supports 9 may be used on back top of each Shelf H or G as a tipping restraint.
- Page 16 ASSEMBLY MODEL # AXCHOL005 STEP 13 1. To attach Tipping Restraint 10 , follow instructions on Tipping Restraint package. When you determined the location for your unit, install the Furniture Tipping restraint. Carefully follow the instructions contained on the package.
-
Page 17: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 18 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-0518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 18/19...
- Page 19 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
