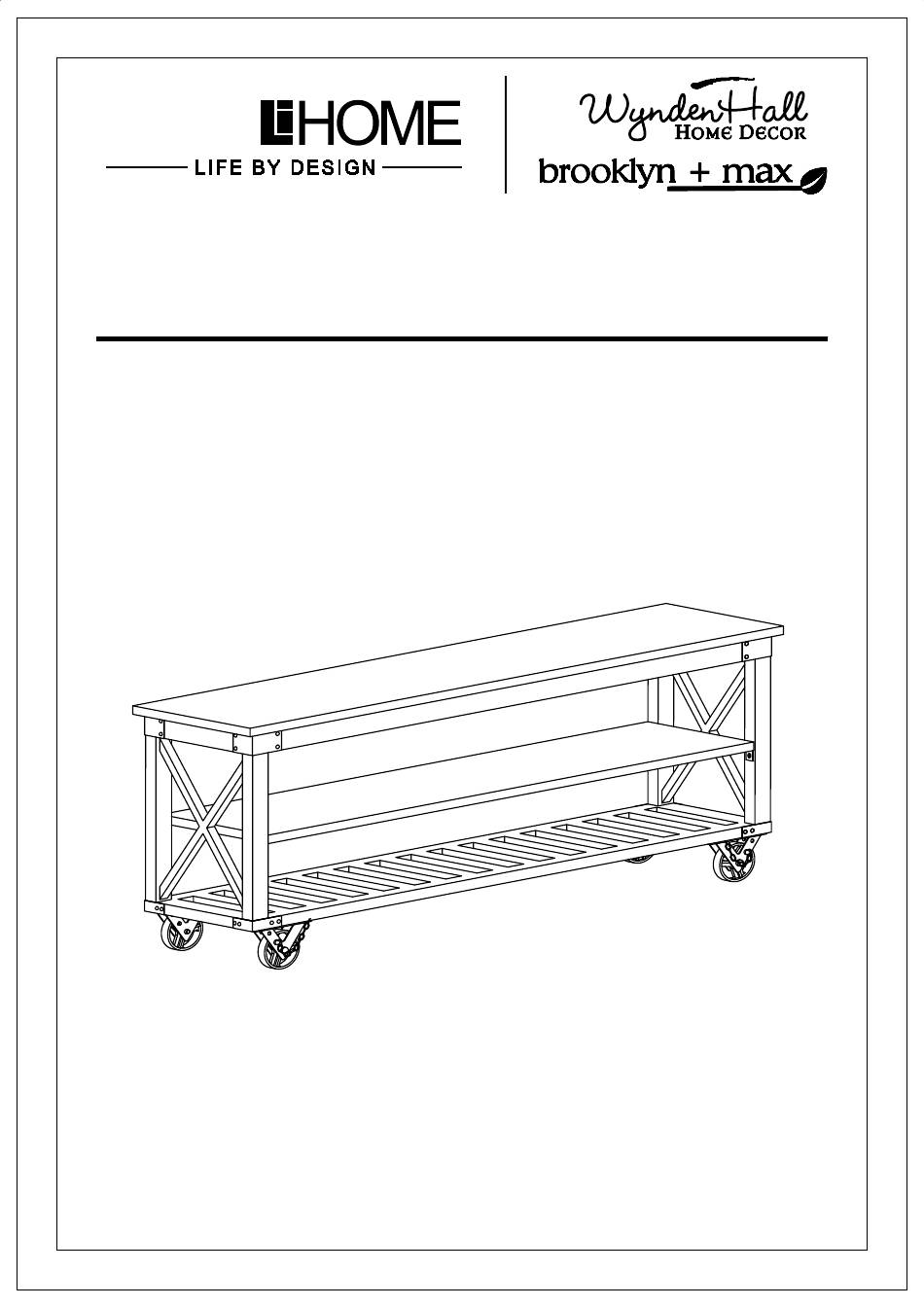

- Page 1 S IMP HOME HARDING / BARRIE / DIXON TV MEDIA STAND MODEL # AXCHAR-06 1/15...
- Page 2 S IMP HOME Questions, problems, assembly help, missing parts? o nee to return the pro uct, we will gla ly help an ship your replacement parts ree o charge lease call ustomer er ice at - e t. on ay to ri ay between am or go to www.simpli-home.com/parts request n or er to assist you in a timely manner, please ha e the ollowing...
- Page 3 IMPORTANT : for Please read this manual carefully before beginning assembly of this product. keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. hardware package may have spare parts.
-
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCHAR-06 PARTS DESCRIPTION QTY 1 QTY 2 BOTTOM CASTER WHEELS QTY 1 QTY 4 SHELF QTY 1 PRE-ASSEMBLY INFORMATION MODEL # AXCHAR-06 HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY BOLT M8 X 50 mm M8 X 20 mm QTY 12 QTY 8 WASHER... - Page 6 COMPONENTS - KEY DIAGRAM MODEL # AXCHAR-06 6/15...
- Page 7 ASSEMBLY MODEL # AXCHAR-06 STEP 1 1. Place Top A upside down on a smooth, flat surface and place Leg B on Top A . 2. Use four Allen Key Bolts 1 , four Washers 4 , and four Lock Washers 3 to attach Leg B to Top A .
- Page 8 ASSEMBLY MODEL # AXCHAR-06 STEP 2 Repeat Step #1 to attach the second Leg B to Top A . 8/15...
- Page 9 ASSEMBLY MODEL # AXCHAR-06 STEP 3 Caster Wheels 1. Align Bottom C and four D to Legs B by matching Holes. Use one Allen Key Bolt 1 , one Lock Washer 3 and one Washer 4 on each corner of the TV Stand to attach the Caster Wheels D . Use one Allen Key Bolt 2 , one Lock Washer 3 and one Washer 4 on the other side of the Caster Wheel D facing inward to complete attaching the Caster Wheels.
- Page 10 ASSEMBLY MODEL # AXCHAR-06 STEP 4 1. Insert the Shelf E on center of TV Media Stand. 2. Use four Allen Key Bolts 2 , four Washers 4 and four Lock Washers 3 . 3. Use Allen Key 5 to tighten Bolts. Do not over tighten. 10/15...
- Page 11 ASSEMBLY MODEL # AXCHAR-06 STEP 5 Note: Insert the pin in the Caster Wheel to lock in place . 11/15...
- Page 12 TO MOVE THE TV MEDIA STAND REMOVE THE PIN FROM THE CASTER WHEEL 12/15...
- Page 13 TO KEEP THE TV MEDIA STAND IN A PERMANENT PLACE STEP (A) 1. Remove the Caster Wheels on the long side of the TV Media Stand. (pick one side). Use Allen Key 5 to remove Allen Key Bolt 2 , Washer 4 and Lock Washer 3 facing inward on both Caster Wheels.
- Page 14 TO KEEP THE TV MEDIA STAND IN A PERMANENT PLACE 5 2 3 4 STEP (B) 90° Caster Wheels Rotate 90° . 1. Use Allen Key Bolt 2 , Lock Washer 3 and Washer 4 to complete attaching the two Caster Wheels to the Bottom C . Refer to the diagram for placement of the Caster Wheels.
-
Page 15: Warranty
S IMP HOME WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
