TM
S IMP HOME
®
TM

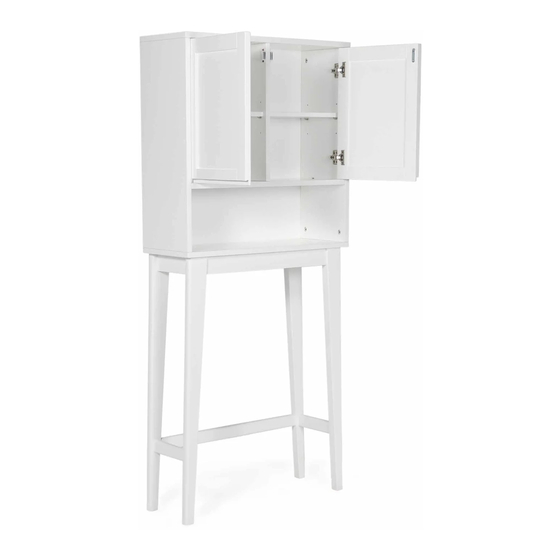

DRAPER / BAXTER / TIERNEY
SPACE SAVER CABINET
MODEL # AXCBCDRP-07
1
/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WyndenHall brooklyn+max AXCBCDRP-07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home WyndenHall brooklyn+max AXCBCDRP-07

Summary of Contents for Simpli Home WyndenHall brooklyn+max AXCBCDRP-07

  • Page 1 S IMP HOME ® DRAPER / BAXTER / TIERNEY SPACE SAVER CABINET MODEL # AXCBCDRP-07...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-07 PART DESCRIPTION TOP LEFT SIDE TOP RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF MIDDLE SHELF SHELF QTY 1 QTY 1 QTY 2 DIVIDER LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-07 PART DESCRIPTION BOTTOM BAR BOTTOM LEFT SIDE BOTTOM RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT BACK PANEL RIGHT BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 7: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-07 HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL ADJUSTABLE HINGE CAM LOCK Ø8 X 30mm QTY 4 QTY 14 SETS QTY 1 PHILLIPS SCREW SHELF SUPPORT MAGNET AND PLATE M4 X 50mm QTY 8 QTY 2 SETS QTY 2 PHILLIPS SCREW PHILLIPS SCREW...
  • Page 8 PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-07 HARDWARE DESCRIPTION ALLEN KEY BOLT: M6 X 35mm - QTY 6 LOCK WASHER: Ø10 / Ø6 X 1.5mm - QTY 6 ALLEN KEY SCREW WASHER: Ø16 / Ø6 X1mm - QTY 6 M6 X 50mm QTY 2 QTY 6 SETS ALLEN KEY...
  • Page 9 COMPONENTS-KEY DIAGRAM MODEL # AXCBCDRP-07...
  • Page 10 ASSEMBLY MODEL # AXCBCDRP-07 STEP-1 1. Attach part HL to part C . Use three sets Allen Key Bolts, Lock Washers and Washers 11 to secure part HL and C . 2. Attach part I to part HL . Use one Allen Key Screw 10 to secure part HL and I . 3.
  • Page 11 ASSEMBLY MODEL # AXCBCDRP-07 STEP-2 1. Repeat Step-1 for the Bottom Right Side HR .
  • Page 12 ASSEMBLY MODEL # AXCBCDRP-07 STEP-3 1. Attach Cam Lock Pins 1 into pre-drilled holes on each part A , BL , BR , C . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
  • Page 13 ASSEMBLY MODEL # AXCBCDRP-07 STEP-4 2. Use Phillips screwdriver to secure Screws. Do not over-tighten. 3. Insert one Dowel 2 into guide holes on part F . 4. Use rubber mallet to tap Dowel 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 14 ASSEMBLY MODEL # AXCBCDRP-07 STEP-5 1. Align Wood Dowel with guide hole on part D and attach part F to part D . guide holes o n p a r t D . 3. Use Phillips screwdriver to secure Screws.
  • Page 15 ASSEMBLY MODEL # AXCBCDRP-07 STEP-6 1. Align Cam Lock Pins with guide holes on part D and attach part BL to part D . 2. Insert two Cam Locks 1 into guide holes on part D . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 16 ASSEMBLY MODEL # AXCBCDRP-07 STEP-7 1. Repeat Step-6 for the Right Side BR .
  • Page 17 ASSEMBLY MODEL # AXCBCDRP-07 STEP-8 1. Align Cam Lock Pins with guide holes on top fame and attach top frame to bottom frame. 2. Insert two Cam Locks 1 into guide holes on each part BL , BR . 3. Use Phillips screwdriver to secure Cam Locks.
  • Page 18 ASSEMBLY MODEL # AXCBCDRP-07 STEP-9 Warning Label...
  • Page 19 ASSEMBLY MODEL # AXCBCDRP-07 STEP-10 1. Align Cam Lock Pins with guide holes and attach part A to parts BL , BR , F . 2. Insert Cam Locks 1 into guide holes on each part BL , BR , F . 3.
  • Page 20 ASSEMBLY MODEL # AXCBCDRP-07 STEP-11 STEP-12...
  • Page 21 ASSEMBLY MODEL # AXCBCDRP-07 STEP-13 1. Attach Adjustable Hinges 3 to Doors GL ,GR using Phillips Screws 7 into pre-drilled holes on Doors GL ,GR . GL ,GR u s i n g P h i l l i p s S c r e w s 8 i n t o GL ,GR .

  • Page 22: Important Note

    ASSEMBLY MODEL # AXCBCDRP-07 STEP-15 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-16 NOTE: The screwdriver is not included in the hardware pack.
  • Page 24 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 25: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
