DOOR REPLACEMENT (IF REQUIRED)
STEP 7

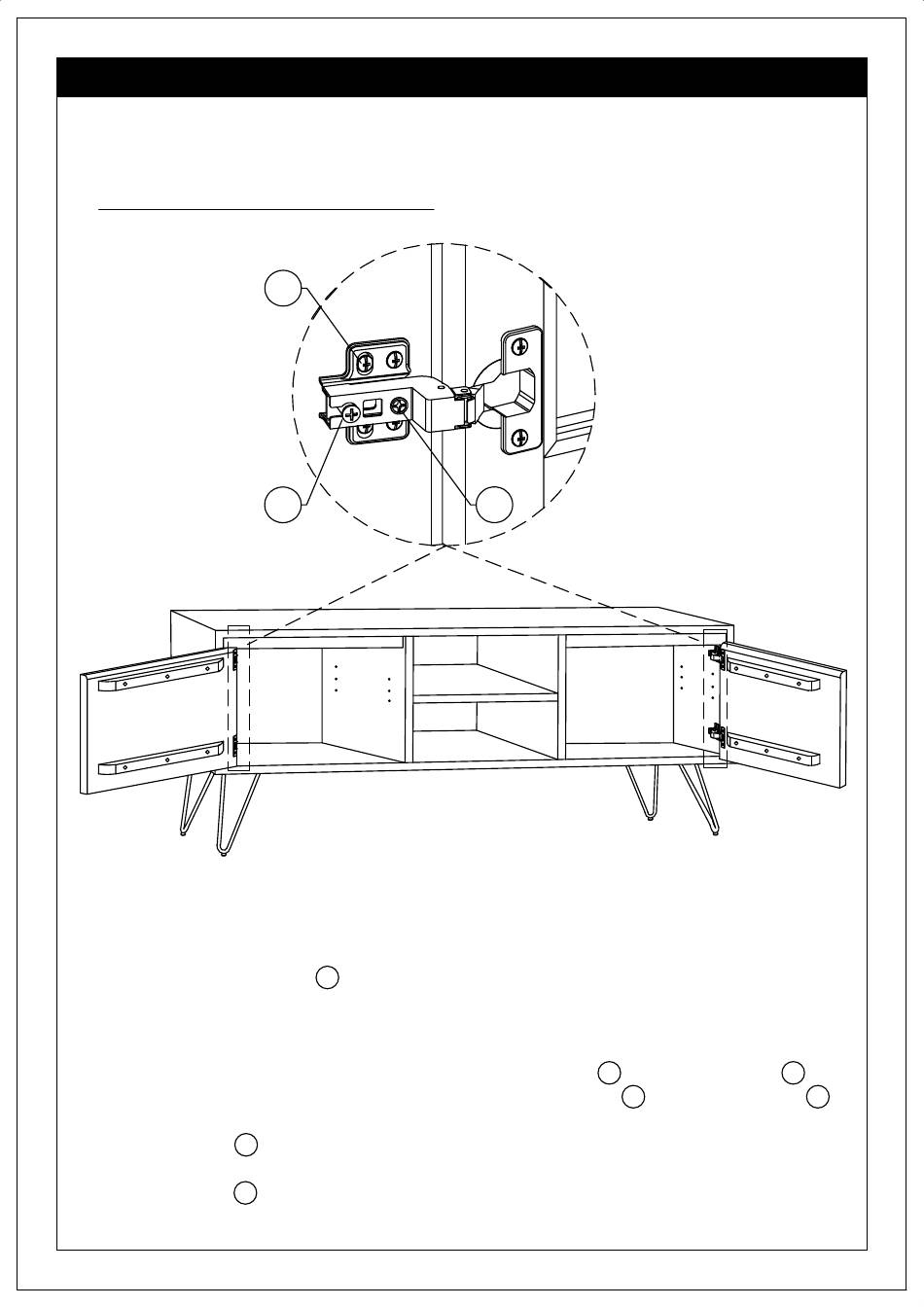

FIXING ADJUSTABLE HINGES
Tighten the screw marked II to fasten hinge. the door may need to
be adjusted so that all the spaces between the door and the unit sides are equal.
to adjust, follow instructions:
1. Side adjustment 4 mm
To move the door towards the side panel, loosen screw I and tighten screw II .
To move the door away from the side panel, loosen screw II and tighten screw I .
2. Depth adjustment 4 mm
Loosen screw II ( just one turn ), adjust door to desired position, re-tighten screw.
3. Height adjustment
Loosen screw 6 , adjust door to desired position, re-tighten screw.
6
