Summary of Contents for Sim2 LUMIS20TH

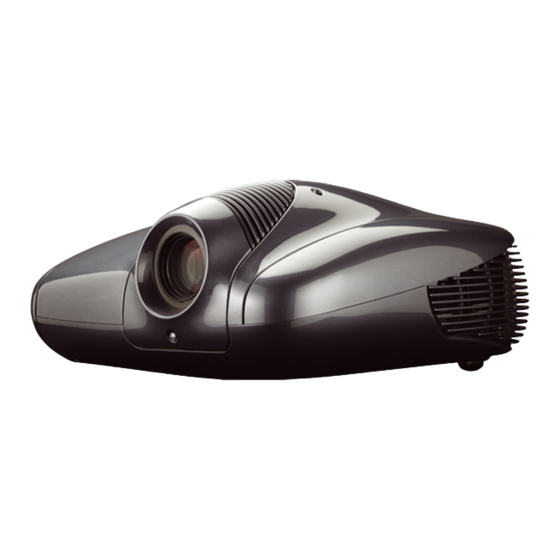

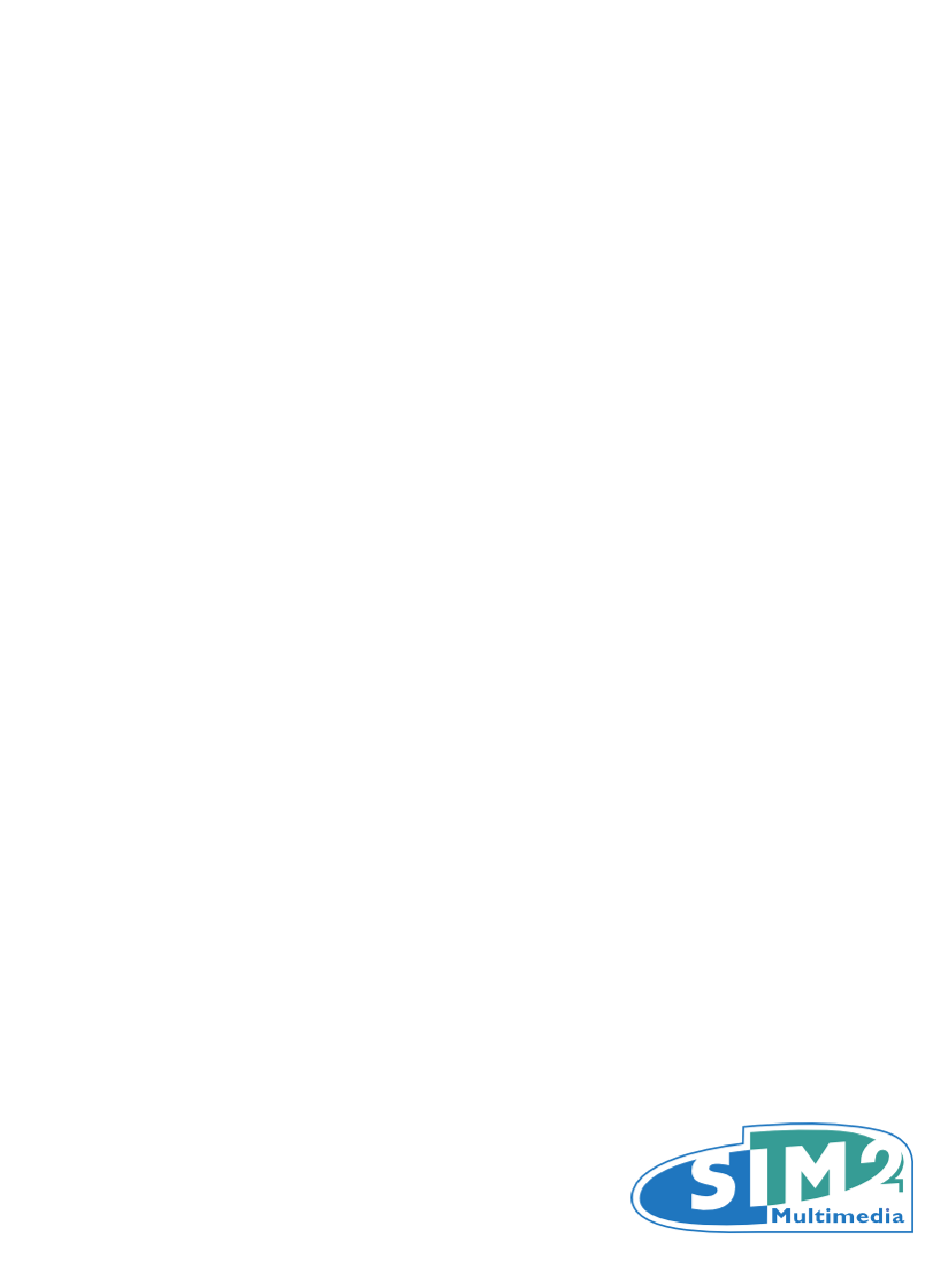

- Page 1 SIM2 Multimedia LUMIS20TH User Guide...
-
Page 2: Table Of Contents
Switching On and Off Chapter 4: Operation Viewing 3D Content 3D Menu Input Menu Main Menu Picture Image Setup Menu Memories Info Quick Menus Messages Chapter 5: Troubleshooting Chapter 6: Specifications Chapter 7: Projection Distances Chapter 8: Dimensions LUMIS20TH User Guide... -
Page 3: Important Information
Inside the housing there are electrical parts carrying dangerously high voltages and parts operating at high temperature. Never open the housing. Entrust all servicing and repair work to a SIM2 Authorized Service Center. Opening the housing voids the warranty. Disconnect the appliance from the power supply The device that disconnects the projector from the mains is the power plug. - Page 4 Take particular care that children cannot do so. Take special care regarding movement of the lens Do not place objects in the slots on the side of the lens and also ensure that vertical lens movements are not impeded by external objects. Important information LUMIS20TH User Guide...
-
Page 5: Environment
• You may return your old equipment to your SIM2 Authorized Dealer free of charge when you buy a new product that is equivalent or has the same functions as the old one. Contact SIM2 to find your local dealer. -
Page 6: Notice
As the optical system of the LUMIS20TH is extremely compact and has the purpose of developing very high brightness and contrast, it is possible that a small quantity of light is visible outside of the projection area and will vary depending on the type of lens used and the zoom and shift setup. -
Page 7: Chapter 1: Introduction
This all adds up to an incredible 3D experience at home. The LUMIS20TH is designed for use with large screen sizes – up to 5 m (16.5 ft.) wide. A choice of three high quality glass lenses (T1, T2 and T3) is available, giving the projector a total throw ratio of 1.5-3.90:1. -
Page 8: Optional Accessories
If any items are missing or damaged, contact your SIM2 Authorized Dealer as soon as possible. Keep the original packaging in case anything has to be shipped. Optional Accessories • Projector ceiling bracket (LUMISBRKT) • PANAMORPH Anamorphic lens systems (static or motorized) •... -
Page 9: Chapter 2: Overview
If you are using a programmable remote control, the setup software probably allows importing of Pronto Hex codes. See SIM2 L LUMIS20TH IR Control for a list of all the projector codes in Pronto Hex format, including a number of discrete codes for: ◦... -
Page 10: Projector Keypad
◦ 3D Controls (3D Mode and Input Formats) Operation The LUMIS20TH projector has two IR receivers, one on the front and one on the back of the unit. The operative range of the remote control is approximately 10 m (33 ft.). -
Page 11: Connections
See “Screen” on page TRIG 3 12 V 100 mA max output, for motorized anamorphic lens position control. See “Anamorphic Lens” on page ❽ 3D Sync OUT VESA DIN-3 connector for 3D RF Emitter cable. Overview LUMIS20TH User Guide... -
Page 12: 3D Rf Emitter
3D RF emitter. ❶ Button Button for ON and OFF ❷ Indicating glasses status Micro USB port To charge the glasses ❸ ❹ Lens Liquid crystal shutter RF Receiver Receive RF signals from 3D Emitter ❺ Overview LUMIS20TH User Guide... -
Page 13: Chapter 3: Installation
Power Outlets Verify that the powers outlets are grounded and preferably shielded from power surges and fluctuations. A UPS is optional. LUMIS20TH power supply operates on any nominal line voltage between 100-240 V AC, 50-60 Hz. Cables Check planned cable lengths for video and control cables and make sure these lengths do not exceed specifications. - Page 14 Do not over-tighten the screws. Orientation By default, the LUMIS20TH is configured for a Front installation (projector installed upright and in front of the screen). If the projector is installed behind the screen or inverted, you can use the image orientation function of the projector (see “Orientation”...
-
Page 15: Connections
The LUMIS20TH provides up to 50% of vertical lens shift up. For example, with a 16:9 150 in. diagonal size screen, you can shift the image up to 0.93 m (36.8 in.) above the screen center (see “Projection... - Page 16 See “RGB/YPrPb” above and “RGBS Sync” on page 29. Control You can connect the LUMIS20TH projector to a Personal Computer or a control system through one of the following methods: • RS-232 port, using a standard 9-pin straight serial cable •...
- Page 17 60 seconds, LED will change from bright to off and glasses will automatically go in power off state. Indicating the battery state If LED flashes every couple of seconds during the operation, battery level is low. Charging is indicated with lit LED. Installation LUMIS20TH User Guide...
-
Page 18: Switching On And Off
Warning: Wait for the cooling fans to turn off before turning off the main power switch or unplugging the projector. Installation LUMIS20TH User Guide... -
Page 19: Chapter 4: Operation
Read 3D safety information at the beginning of this User Manual before viewing 3D content. Your LUMIS20TH projector is capable of displaying 3D Images of exceptional high quality; to ensure maximum enjoyment and trouble free viewing we recommend the following guidelines. -
Page 20: 3D Menu
On Press the button once (see “3D Glasses” on page 12). You will see the indicator light ramp from off to bright, and then turn off again. You are now in SIM2 Cinema mode and the glasses and the projector are synced. If, for any reason, the glasses behave differently, reset them (see below). - Page 21 PureMotion adjustment is available. 3D Input Format The LUMIS20TH checks AVI infoframe data and input signal resolution in order to determine the appropriate 3D format. When automatic detection of 3D format is not possible, choose one of the following options: •...
-
Page 22: Input Menu
1920 x 1080p @ 23.98/24 Hz Others ● Side by Side Top and Bottom Notes: 1. except Panoramic Input Menu The desired input can be selected by pressing the corresponding number key on the remote control or through the Input menu. Operation LUMIS20TH User Guide... -
Page 23: Main Menu
Memory management function (see “Memories” on page 32) Setup and Menu sections provide access to installation and OSD adjustments. The settings in these sections are global (for all inputs and modes, not just the active one). Operation LUMIS20TH User Guide... -
Page 24: Picture
Alternatively use a scene composed of well-lit white objects surrounded by light objects with lower level lighting, and try to ensure that all the objects can be separately identified. Operation LUMIS20TH User Guide... - Page 25 PureMovie allows a pure and unprocessed presentation of the signal coming from your source. • PureMotion specifically created for fast-action material, yields smooth motion, free from smear or judder Note: When viewing 3D contents, the PureMotion3D mode is automatically activated. Operation LUMIS20TH User Guide...
-
Page 26: Image
Letterbox displays a 4:3 letterbox image (source signal with black bands above and below the picture) in such a way that it fills the 16:9 screen and maintains the correct aspect. This aspect ratio is also recommended when using Anamorphic Lenses. Operation LUMIS20TH User Guide... - Page 27 ◦ D75, D65, D50 the C standard CIE illuminants ◦ User a white point that can be adjusted according to your personal preferences as follows: ▪ press the number 3 on the remote control to activate the User column Operation LUMIS20TH User Guide...
- Page 28 To accurately set the Primaries and White Point you will need access to specialized color measuring equipment and also the knowledge to use such equipment. Alternatively, contact the SIM2 Authorized Dealer where you purchased your product and ask them to arrange for an ISF certified calibrator to set up your projector.
-
Page 29: Setup
Keystone may cause artifacts in the image and may not be available when displaying specific 3D content (see Table 4.2). SIM2 recommends that you use this feature only when necessary. Variable Iris Controls the iris in the the optical engine. Larger values increase brightness and smaller values increase contrast in the projected image. -
Page 30: Menu
Confirm and continue with the reset or press ◂ to Cancel. Menu This menu section provides access to OSD adjustments. Language Selects the desired OSD language. The LUMIS20TH can display the menus in English, Italian, French, German, Spanish, Swedish, Portuguese, Russian and Simplified Chinese. Source List Allows customization of the Input list. - Page 31 Avoid locations too close to corners or edges to prevent cropping of larger menus. OSD Display Timeout Sets duration OSD is visible after the last event. Adjust in 10 second increments from 10 to 200 seconds. Operation LUMIS20TH User Guide...
-
Page 32: Memories
If desired, repeat the steps above to save additional memories in different locations. Note: You can change the name of each memory. See “Rename” below for details. Recall Operation LUMIS20TH User Guide... -
Page 33: Info
Auto settings at any time, provided that you do not exit Memory menu by pressing Esc. Info Displays a summary of the projector settings This function is displayed by pressing Info on the remote control. Operation LUMIS20TH User Guide... -
Page 34: Quick Menus
• Out of range. This message appears when either the resolution or the vertical/horizontal frequency of the input signal exceeds system specifications (for example a QXGA graphic signal). Operation LUMIS20TH User Guide... -
Page 35: Chapter 5: Troubleshooting
Wait at least 30 minutes and then turn the projector back on. • Check the Status Display for any errors. Contact your SIM2 Authorized Dealer for assistance if the error persists. •... - Page 36 ◦ If the problem persists then it is more than likely to be cable related. Try other cables. ◦ Try bypassing other product in the system chain. For example connect the Blu-ray player direct to the projector. Troubleshooting LUMIS20TH User Guide...
-
Page 37: Chapter 6: Specifications
6 Specifications Projection Type Digital Light Processing (DLP), 3-chip DLP Type: 0.95 in., 1920 x 1080, DC4 Optical Engine Die cast, based on SIM2 patented ALPHAPATH Projection Lens High-quality glass Throw ratio: LUMIS20TH T1: 1.5÷2:1 T2: 2÷3:1 T3: 2.6÷3,9:1... - Page 38 Weight: 11 kg (24.3 lb.) approx. Operating: 10° C to 35° C Temperature Storage: -15° C to 55° C Low Voltage Directive: EN 60950-1/UL60950 Certifications EMC Directives: EN 55022, EN 55022 A1 A2, EN61000-3-2, EN61000-3-3 Specifications LUMIS20TH User Guide...
-
Page 39: Chapter 7: Projection Distances
107.9 22.1 27.2 28.7 40.0 41.5 62.3 53.9 217.9 122.6 25.2 30.9 32.7 45.4 47.2 70.8 61.3 244.0 137.3 28.2 34.6 36.6 50.8 52.9 79.3 68.6 261.5 147.1 30.2 37.1 39.2 54.5 56.7 85.0 73.5 Projection Distances LUMIS20TH User Guide... -
Page 40: Chapter 8: Dimensions
8 Dimensions LUMIS20TH dimensions in millimeters and (inches). Dimensions LUMIS20TH User Guide... - Page 42 SIM2 USA Inc. 10216 NW 47th Street Sunrise, FL 33351 Phone: +1 (954) 442 2999 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com SIM2 UK Steinway House Worth Farm Little Horsted Nr.
