Bluebird EF551 Quick Manual

Enterprise full touch handheld computer

Advertisement

Quick Links

EF551
Enterprise Full Touch Handheld Computer
QUICK
GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF551 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bluebird EF551

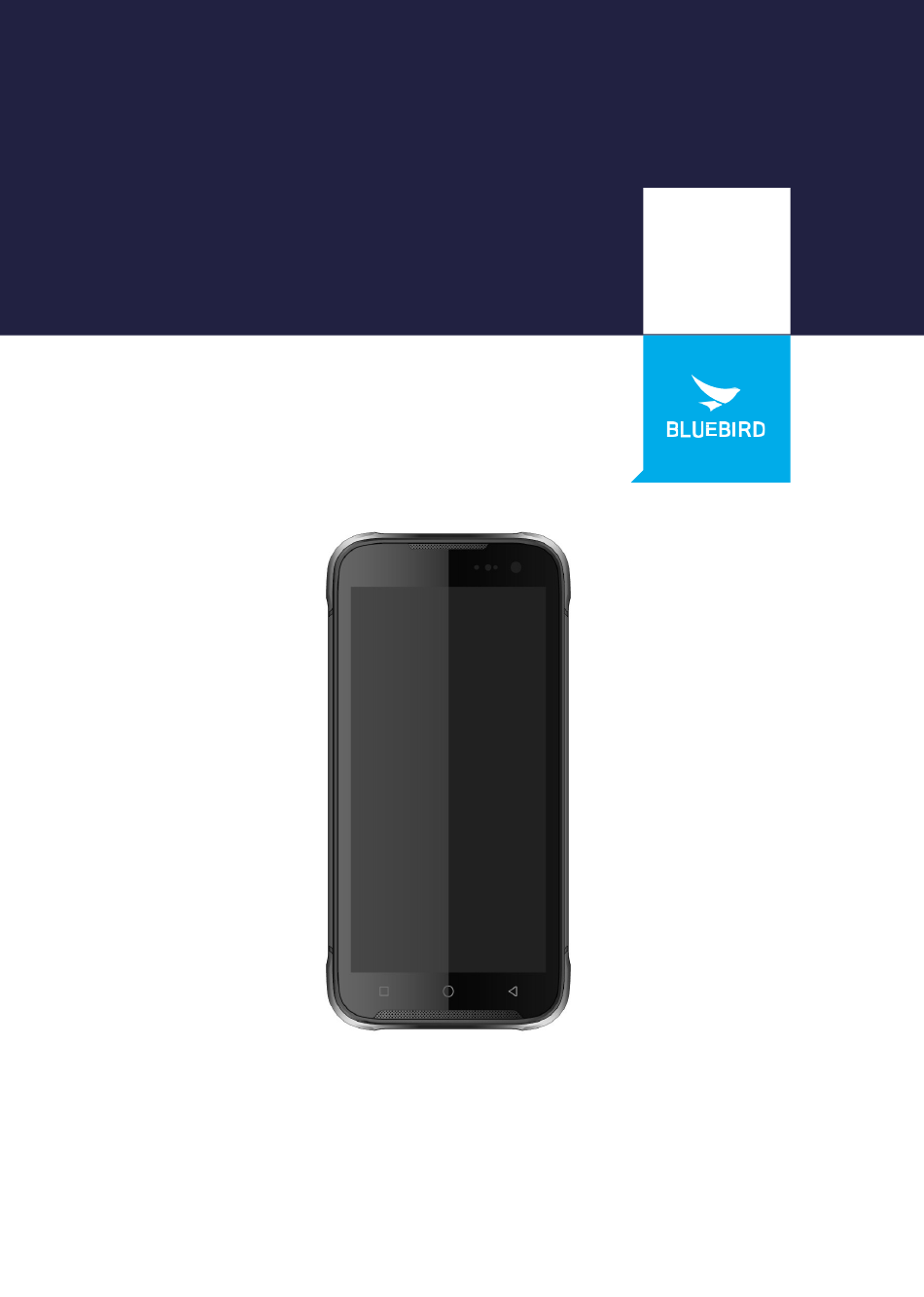

  • Page 1 EF551 Enterprise Full Touch Handheld Computer QUICK GUIDE...
  • Page 2: This User Manual Is Protected By Copyright

    Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. • Qualcomm ®...
  • Page 3: Safety Information

    1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Caution Indicates situations that could cause damage to your device or other equipment. Note Indicates additional information that can help you get the most out of the device.
  • Page 4: Frequency Interference

    Safety Information 1.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion.
  • Page 5: Package Contents

    2 Overview 2.1 Package Contents The package includes: Battery USB Cable (Type-C), Adapter EF551 Device The illustrations may differ from your actual items.
  • Page 6: Your Device

    Overview 2.2 Your Device 2.2.1 Front Microphone Proximity sensor Light sensor Receiver Front Camera Charging / Notification LED Power button Scan button Scan button Volume up button Volume down button Touch screen Menu button Back button Speaker Microphone Home button 2.2.2 Back Rear camera Camera flash...
  • Page 7 Overview 2.2.3 Bottom and Top Charging connector C-type connector Barcode scanner...
  • Page 8: Getting Started

    3 Getting Started 3.1 Installing the Cards 3.1.1 Inserting a Nano SIM card Remove the card slot. Insert a nano SIM cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device...
  • Page 9: Removing The Cards

    Getting Started 3.1.2 Inserting a Micro SD Card Remove the card slot. Insert a micro SD cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device 3.1.3 Removing the Cards Remove the card slot .
  • Page 10 Getting Started 3.1.4 Inserting a SAM Card Push the SAM card toward the arrow. Make sure that the gold contacts on the cards are facing up. 3.1.5 Removing a SAM Card Push SAM card deeply toward inside by finger. It will come out and take that part out.
  • Page 11: Installing The Battery

    Getting Started 3.2 Battery 3.2.1 Installing the Battery 2 Insert the bottom of the battery into the device. 1 Place the back of the device facing up. 3 Press the top of the battery to fully insert 4 Slide down the battery lock to lock the battery. the battery in the device.
  • Page 12: Removing The Battery

    Getting Started 3.2.2 Removing the Battery Slide up the battery lock to unlock the battery and pull the battery out. Before removing the battery, turn off the power. Failure to do so it may cause damage to the device. 3.2.3 Charging the Battery 1 Plug the C-type end of the charger into the multi-purpose jack on the buttom of the device.
  • Page 13: Turning The Device On Or Off

    4 Basics 4.1 Turning the Device On or Off 4.1.1 Turning the Device On Press and hold the Power button for a few seconds. 4.1.2 Turning the Device Off Press and hold the Power button for a few seconds. Tap Power off. •...
  • Page 14: Using The Touch Screen

    Basic 4.2 Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom in.
  • Page 15: Using The Home Screen

    Basic 4.3 Using the Home Screen The Home screen is the starting point for all apps and features. It displays icons, shortcuts, and widgets for apps. Drag upward from the bottom of the screen. Applications will be displayed on the screen. To view other pages, swipe left or right.
  • Page 16: Connecting To A Wi-Fi Network

    Basic 4.4 Connecting to a Wi-Fi Network Connecting to a Wi-Fi network is an easy way of accessing the Internet. When you are out, you can connect to Wi-Fi networks in public places. On the Home screen, tap > Wi-Fi. Make sure to turn Wi-Fi on.
  • Page 17: Battery Hot Swap

    Basic 4.6 Battery Hot Swap -This device supports Battery Hot Swap function. -Battery Hot Swap is a function to replace the battery with a spare battery while using the device without Power Off. Battery hot swap operation procedure: Turn off the LCD by pressing the power button. After unlock the battery locker, remove the battery inside the device.
  • Page 18: Device Specification

    5 Device Specification Physical Characteristics 159.9.6 x 79 x 16.65 mm Dimensions (W x H x D) Weight 284.5g Display 5.45” FHD+ (2160x1080) Imager Window Corning Gorilla Glass Dual mode capacitive touch with stylus or bare or gloved fingertip input Touchpanel (conductive stylus sold separately) fingerprint resistant antismudge coating water droplet rejection;...
  • Page 19: Performance Characteristics

    Device Specification Performance Characteristics 2.7 GHz Octa Core Processor Android 12 Operating System upgradeable to Android 15 4GB RAM / 32GB UFS Flash Memory 8GB RAM / 128GB UFS Flash (Optional) User Environment Characteristics Operating Temp -20°C to 50°C / -4°F to 122°F Storage Temp -40°C to +70°C / -40°F to +158°F Humidity...
  • Page 20: Communication Options

    Device Specification Communication Options WWAN Radio 5G/LTE/WCDMA/GSM IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 Mu-MIMO; Wi-Fi™ certified; WLAN Radio WIFI 6EDual Band Simultaneous; IPv4, IPv6 6GHz: 802.11a/n/ac/ax (WIFI 6E) > 160MHz — up to 2400 Mbps; 5GHz: 802.11a/n/ac/ax WLAN Data Rates > 20MHz, 40MHz, 80MHz — up to 1201 Mbps 2.4GHz: 802.11b/g/n/ax4 >...
  • Page 21: Troubleshooting

    You can contact your local sales representative or you can send the device via a delivery service to Bl uebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost.
  • Page 22: Warranty And Support

    • The warranty will not cover any damage which occurs during delivery. We advise you to use the box and protective cover supplied with the product. • Make sure to deliver the product in a safe way. Bluebird assumes no responsibility for the loss of the product during delivery.
  • Page 23 Warranty and Support Charged services • In the following cases, it will be charged when requesting for after-sales service. - Service request due to inappropriate use of the device by the customer - Loss of PIN number - Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) •...
  • Page 24: Warranty Certificate

    Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect.
  • Page 25 Time: +9 Hours) The center is closed on Saturdays, Sundays, and Korean national holidays. Customer Service Center #1103, Gplus Kolon Digital Tower 11F, Digital-ro 26-gil 123, Guro-gu, Seoul, Republic of Korea(08390) Bluebird constantly strives to bring utmost satisfaction to all our customers.
