Summary of Contents for Bluebird HF550

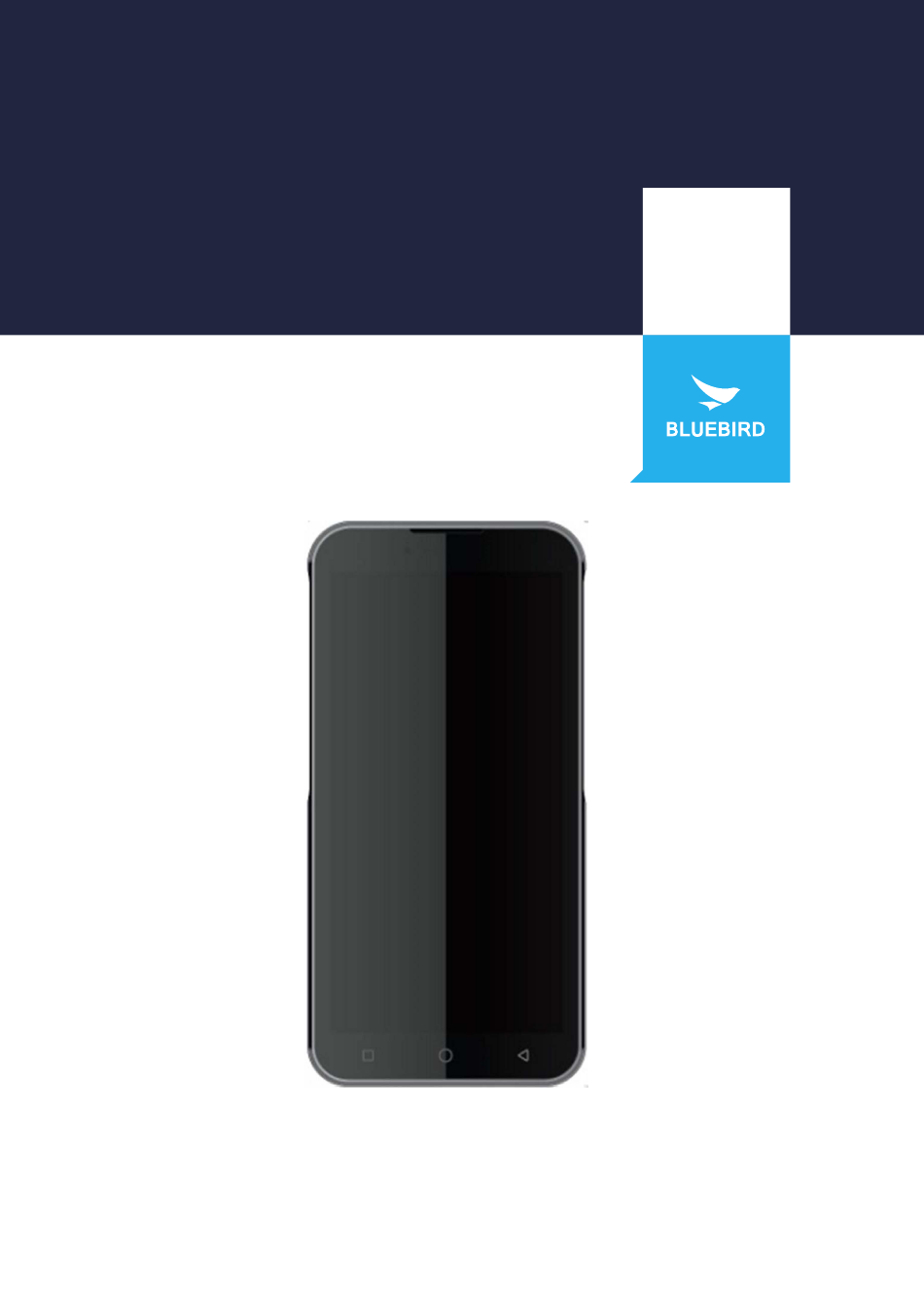

- Page 1 HYBRID FULL TOUCH HANDHELD COMPUTER HF550 QUICK GUIDE...
-
Page 2: This User Manual Is Protected By Copyright
BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc. -
Page 3: Safety Information
1 Safety Information 1.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Caution Indicates situations that could cause damage to your device or other equipment. Note Indicates additional information that can help you get the most out of the device. -
Page 4: Frequency Interference
Safety Information 1.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •... -
Page 5: Package Contents
2 Overview 2.1 Package Contents The package includes: 。 。 HF550 device Micro USB cable (C-type) Wall Adapter SIM tooling pin The illustrations may differ from your actual items. -
Page 6: Your Device
Overview 2.2 Your Device 2.2.1 Front Light sensor Receiver Proximity sensor Charging / Notification LED Volume up button SIM card slot Volume down button Power button Action Key button Touch screen 。 < □ Menu button Back button Home button 2.2.2 Back Rear camera Camera flash... -
Page 7: Bottom And Top
Overview 2.2.3 Bottom and Top =(Q)=o ) Speaker Headset jack \三 Interface connector Microphone 尸 「 〉 Microphone... -
Page 8: Getting Started
3 Getting Started 3.1 Installing the Cards 3.1.1 Inserting a Micro SIM card Remove the card slot on the right side of your device. Insert a micro SIM cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device. -
Page 9: Inserting A Microsd Card
Getting Started 3.1.2 Inserting a Micro SD Card Remove the card slot on the right side of your device. Insert a micro SD cards into the slots. Make sure that the gold contacts on the cards are facing down. Insert the card slot on your device. 3.1.3 Removing the Cards Remove the card slot on the right side of your device. -
Page 10: Turning The Device On Or Off
4 Basics 4.1 Turning the Device On or Off 4.1.1 Turning the Device On Press and hold the Power button for a few seconds. 4.1.2 Turning the Device Off Press and hold the Power button for a few seconds. Tap Power off. •... -
Page 11: Using The Touch Screen
Basic 4.2 Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom Zoom in or out in. -
Page 12: Connecting To A Wi-Fi Network
Basic 4.3 Connecting to a Wi-Fi Network On the Home screen, tap > WLAN. Turn on a Wi-Fi networking and tap the network you want to join. If necessary, enter the password for the network. If you don’t know the password, contact the administrator for the network. -
Page 13: Device Specification
5 Device Specification Physical Characteristics Dimensions (W x H x D) 151.8 x 74.5 x 11.9 mm Weight 200 g Display 5.45” HD+ (1440 x 720), TFT-IPS Imager Window Corning Gorilla Glass 3 Capacitive multi-touch / Stylus Touchpanel Glove, Wet Backlight LED backlight Integrated Battery... -
Page 14: Performance Characteristics
• Support next two versions of Android Q and R Operating System • Upgrading to new supported versions of Android requires the purchase of a Bluebird Care™ Service contract 2GB RAM / 16GB Flash Memory 3GB RAM / 32GB Flash (Optional) -
Page 15: Communication Options
Device Specification Communication Options WWAN Radio GSM/GPRS/EDGEWCDMA/HSDPA/HSUPA/HSPA+LTE WLAN Radio 802.11 a/b/g/n/ac 5GHz: 802.11 a/n – up to 150 Mbps; WLAN Data Rates 2.4GHz: 802.11 b/g/n – up to 72.2 Mbps WPAN Radio Bluetooth V5.0 BLE, Class 2 Accessories Wrist Strap, Protective Film, Protective Case, Accessories 1 Slot Charging Cradle, Multi Slot Charging Cradle Please ask your sales representative for the specifications not listed above or for the future upgradeable... -
Page 16: Troubleshooting
You can contact your local sales representative or you can send the device via a delivery service to Bluebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost. -
Page 17: Warranty And Support
• We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. • If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service. - Page 18 Warranty and Support Charged services • In the following cases, it will be charged when requesting for after-sales service. –– Service request due to inappropriate use of the device by the customer –– Loss of PIN number –– Use of programs that might affect the program (over-clock, forceful changes in the input of the system, personal developments) •...
-
Page 19: Warranty Certificate
Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect. - Page 20 (GMT Time: +9 Hours) The center is closed on Saturdays, Sundays, and Korean national holidays. Customer Service Center #1103, Gplus Kolon Digital Tower 11F, Digital-ro 26-gil 123, Guro-gu, Seoul, Republic of Korea(08390) Bluebird constantly strives to bring utmost satisfaction to all our customers.
