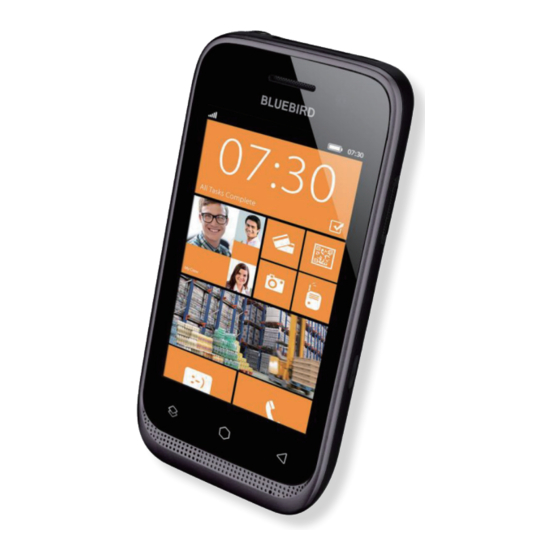

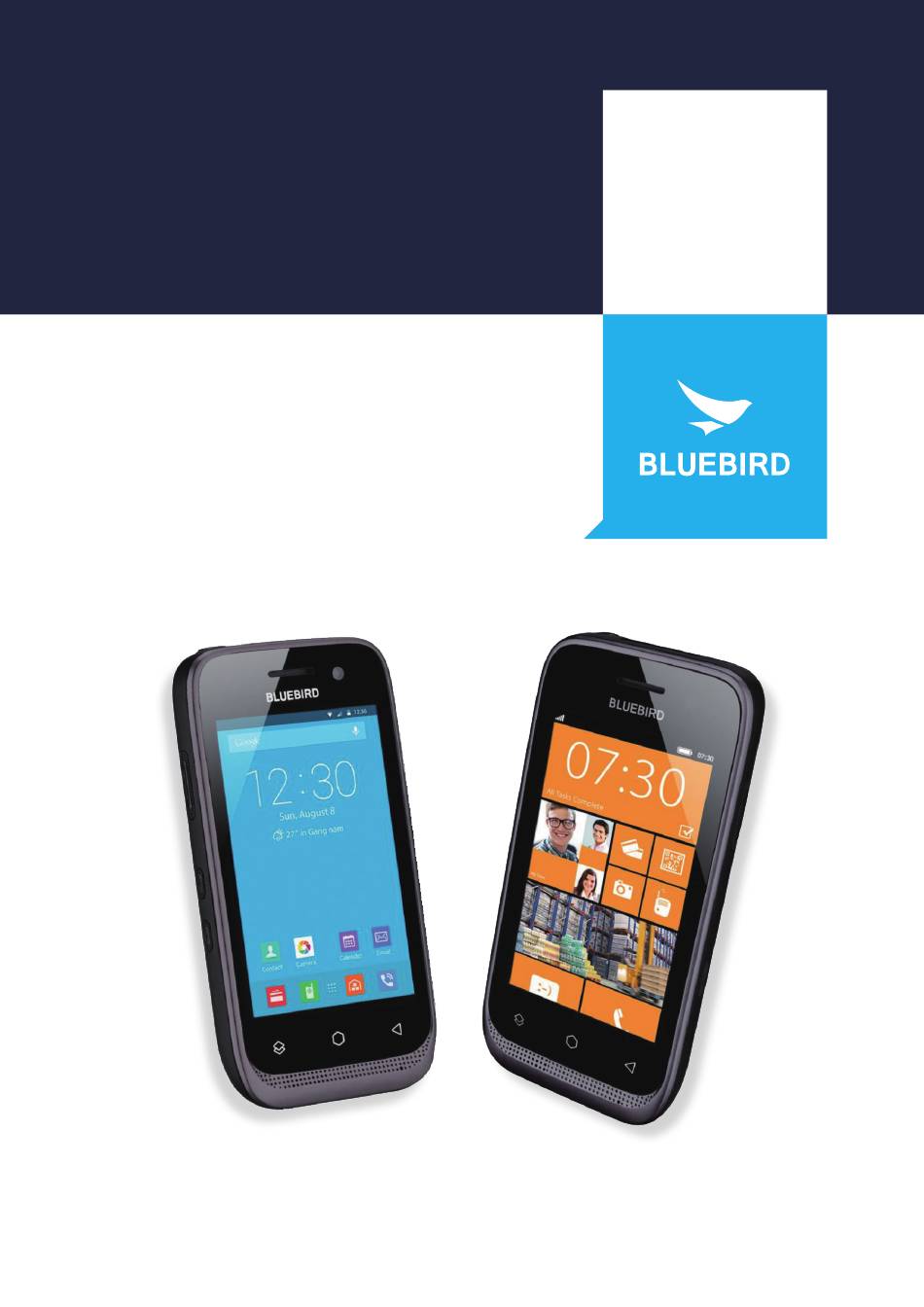

- Page 1 ENTERPRISE FULLTOUCH HANDHELD COMPUTER EF401 USER Manual...
- Page 2 BLUEBIRD is an emerging global brand, striving to lead the market in performance and mobility. Their products represent reliability, innovation, and innovative technology. Bluebird is a registered trademark from the global brand of Bluebird Inc. and is copyright protected. • Bluebird and stylized Bluebird Logo are registered trademarks and symbols of Bluebird Inc.
-
Page 3: Table Of Contents
Contents This user manual is protected by copyright. Registered Trademark User’s Guidance Revision History Contents 1 About This Manual 2 Safety Information 2.1 Symbols ............................... 2 2.2 Device ..............................2 2.3 Environment ............................3 2.4 Battery and Charging ........................... 3 2.5 Distraction ............................ - Page 4 Contents 5.6 Customizing Your Home Screen ......................22 5.6.1 Adding Shortcuts or Widgets ......................22 5.6.2 Arranging Shortcuts or Widgets ....................22 5.6.3 Removing Shortcuts or Widgets ....................23 5.7 Using Your Device with Ease ......................23 5.7.1 Quick Actions ..........................23 5.7.2 Setting Date and Time ........................
- Page 5 Contents 6.9 Clock ..............................47 6.9.1 Alarm and clock ..........................48 6.9.2 Timer ............................49 6.9.3 Stopwatch ............................ 49 6.9.4 Settings ............................50 6.10 Downloads ............................51 6.11 Calculator ............................51 6.12 Google Apps ............................ 51 6.12.1 Chrome ............................51 6.12.2 Gmail ............................
- Page 6 Contents Appendix A Device Specification Appendix B Accessories Appendix C Troubleshooting Appendix D Safety Regulatory Appendix E Warranty and Support...
-
Page 7: About This Manual
• Modifying the device’s operating system or installing software from unknown sources may cause device malfunction or data loss. Improper or unauthorized use of the device is a violation of the Bluebird license agreement and void your one-year limited warranty. -
Page 8: Safety Information
2 Safety Information 2.1 Symbols This manual uses the following symbols to indicate hazards and additional information. Symbol Name Description Warning Indicates situations that could cause injury to yourself or others. Indicates situations that could cause damage to your device or other Caution equipment. -
Page 9: Environment
2 Safety Information 2.3 Environment • Do not use the device while driving or operating heavy machinery. Doing so may result in death or serious injury. • Do not use the device in locations with combustible goods. Doing so may result in an explosion. •... -
Page 10: Overview
3 Overview 3.1 Package Contents The package includes: EF401 device Battery Battery cover Micro USB cable • The illustrations may differ from your actual items. • To purchase additional accessories, contact your sales representative. • You can download your User Manual from www.bluebirdcorp.com. The paper version may be available for some regions. -
Page 11: Your Device
3 Overview 3.2 Your Device 3.2.1 Front No. Name Description Receiver Allows user to hear the person they are talking to while on the phone. Indicates the status of the battery. The charging LED turns red when the Charging LED battery is charging and turns green when the battery is fully charged. - Page 12 3 Overview No. Name Description Home button Returns to the Home screen. Primary microphone Captures sound for calling, video recording, and speech recognition. Back button Returns to the previous page or menu. Connects your device with other devices, such as a computer, via a micro- Multi-purpose jack USB cable.
-
Page 13: Back
3 Overview 3.2.2 Back No. Name Description Flash Illuminates your surroundings when using the camera and related apps. Rear camera Takes photos and record videos (13 Megapixel). Secondary Acts as sub microphone, removing noise and echoes. microphone External device Connects external devices such as an RFID reader (optional). connector Battery cover Protects the battery and inner part of the device. -
Page 14: Bottom And Top
3 Overview 3.2.3 Bottom and Top No. Name Description Barcode scanner Scans barcodes by emitting a red laser when you press the related button. Headset jack Connects to the headset. Turns the device or screen on or off. You can lock the device by turning off Power button the screen. -
Page 15: Getting Started
4 Getting Started 4.1 Cards There are two slots for a micro SD and a micro SIM card in the inner compartment on the back of your device. • A micro SD card is required for external storage. • A micro SIM card is required for using mobile services. All cards should be purchased separately if necessary. -
Page 16: Removing The Cards
4 Getting Started To insert the micro SD card Insert a micro SD card into the slot, pressing the lock with a card. • Make sure that the gold contacts on the card are facing down. 4.1.2 Removing the Cards Pull the cards out to remove them, pressing the lock with your finger. -
Page 17: Battery
4 Getting Started 4.2 Battery EF401 uses a Lithium-ion rechargeable battery. Install the provided battery before charging the device. 4.2.1 Installing the Battery Slide the battery lock and lift up the battery cover. • When removing the battery cover, be careful not to damage your fingernail. -
Page 18: Removing The Battery
4 Getting Started Replace the cover. Insert the top of the cover first and then press around the edges of the cover until it clicks into place. Close the battery lock to lock the battery cover. 4.2.2 Removing the Battery Remove the battery cover as described in Installing the Battery on page 11. -
Page 19: Charging The Battery
4 Getting Started 4.2.3 Charging the Battery The device can be charged with a charger or a cradle. You can also charge the battery by connecting it to your computer with the provided micro USB cable. Check the device’s battery status on the status bar. You can also check the battery status on the lock screen. -
Page 20: Extending The Battery Life
4 Getting Started 4.2.4 Extending the Battery Life You can improve the battery life in various ways. The easiest way is to use battery saver mode. When the device goes into battery saver mode, some background features and app settings may not function normally. -
Page 21: Basics
5 Basics 5.1 Turning the Device On and Off To turn on the device, press and hold the Power button for a few seconds. To turn off the device, press and hold the Power button, then tap Power off. • To turn the screen on or off, press the Power button. •... -
Page 22: Resetting The Device
5 Basics 5.2 Resetting the Device If your device does not work properly or freezes due to unknown errors, you can force the device to restart. To reset the device’s hardware Press and hold the Power button and the Volume down button simultaneously until the device vibrates, and then release the buttons. -
Page 23: Using The Touchscreen
5 Basics 5.3 Using the Touchscreen Use finger gestures to use the touchscreen effectively. • Do not touch the screen with any sharp objects. • Do not apply too much pressure to the touchscreen. Gesture Name Description Briefly touch an item to open, launch, or select it. Place two fingers on the screen and spread them apart to zoom Zoom in or out in. -
Page 24: Locking And Unlocking The Device
5 Basics 5.4 Locking and Unlocking the Device Lock the screen to protect your device and its data. The device locks if it is not in use for a specified period by default. To unlock the device, press the Power button to turn on the screen and drag upward from the bottom of the screen. -
Page 25: Using The Home Screen
5 Basics 5.5 Using the Home Screen The Home screen is the starting point for all apps and features. It displays icons, shortcuts, and widgets for apps. No. Description Status bar Widget Location indicator App icons The Home screen has multiple pages. To view other pages, swipe left or right. The white bar at the bottom of the Home screen indicates the current page you are viewing. -
Page 26: Viewing The Status Bar
5 Basics 5.5.1 Viewing the Status Bar The status bar appears at the top of the screen. It displays the status icons and the current time on the right, and the notification icons on the left. No. Description Notification icons Status icons and the current time 5.5.2 Notification Icons Notification icons in the status bar alert you to notifications, such as upcoming events, messaging, emails,... -
Page 27: Status Icons
5 Basics 5.5.3 Status Icons The status icons in the status bar provides information about your device’s status, such as GPS, signal strength, roaming, battery charge, data, alarm, etc. Icon Description Indicates that GPS is in on. Indicates that your device is searching for location data. Indicates that the alarm is set. -
Page 28: Customizing Your Home Screen
5 Basics Icon Description Indicates that your device is connected to an EDGE network. Indicates that your device is connected to an GPRS network. Indicates that there is no SIM card installed. • Other than the icons described in the table above, there are various other notifications and status icons that are displayed on the status bar depending on the situation. -
Page 29: Removing Shortcuts Or Widgets
5 Basics 5.6.3 Removing Shortcuts or Widgets Tap and hold an shortcut icon or widget. Drag it to X Remove at the top of the screen and release it to remove the shortcut icon or widget. 5.7 Using Your Device with Ease Make it easier to see, hear, and use the device with its built-in accessibility features. -
Page 30: Setting Date And Time
5 Basics 5.7.2 Setting Date and Time The date and time are automatically set based on the network you are connected to. To set the date and time manually On the Home screen, tap > Date & time, then disable Automatic date & time. If you turn off this option, the options for setting date and time will be activated. -
Page 31: Connectivity
5 Basics 5.8 Connectivity 5.8.1 Wi-Fi Connecting to a Wi-Fi network is an easy way of accessing the Internet. When you are out, you can connect to Wi-Fi networks in public places. On the Home screen, tap > Wi-Fi. Make sure to turn Wi-Fi on. Tap the network you want to join. - Page 32 5 Basics To pair with a Bluetooth device Pair your device with Bluetooth compatible devices. On the Home screen, tap > Bluetooth. Turn the Bluetooth On. • Make sure the devices you want to pair with have Bluetooth enabled. • You may need to start the pairing process from the headset. For details, see your headset user guide.
-
Page 33: Applications
6 Applications 6.1 Installing and Uninstalling Apps You can purchase and download apps. on the Apps screen. 6.1.1 Installing App In the Play Store, browse apps by category or enter the keywords on search field to search for a keyword. Select an app you want to install and see whether the app is free or not. -
Page 34: Overview Of Apps
Use to scan and read the barcode information. For more information, refer to BarcodeTest Barcode on page 41. BBSettings Use to change your Bluebird settings in Symbology and Fix/Volume/Mode. BBUpdate Use to update your device. Use to organize and manage your files. -
Page 35: Phone
6 Applications 6.3 Phone 6.3.1 Making Calls On the Home screen, tap > You can simply dial the number, tap on a number on the call log, or choose a number in your contacts. To make a call on the dialer screen On the Home screen, tap >... - Page 36 6 Applications To use options during your call Icon Description Turn the speakerphone on. Mute your microphone. Open the keypad. Hold a call. Add another person to the call. End the call.
- Page 37 6 Applications To make a call from contacts list On the Home screen, tap > on your Phone app. Tap a name in your contacts list and then tap a phone number to dial the number.
- Page 38 6 Applications To make a call from call log On the Home screen, tap > on your Phone app. You can also open the call log by tapping > Call History. to dial the number.
- Page 39 6 Applications To make a call from speed dial You can make quick calls without entering a phone number or searching for a contact with the speed dial function. You should assign a speed dial number to a contact first. For more information on creating new speed dial, refer to Making Speed dial on page 36.
-
Page 40: Answering Calls
6 Applications 6.3.2 Answering Calls When you receive a phone call, the incoming call screen opens with the caller ID, and any other available information, such as the caller’s name, if saved in the contacts list. Tap and drag to one of the following icons: Icon Description Answer an incoming call. -
Page 41: Viewing Call Log
6 Applications 6.3.3 Viewing Call Log The call log displays the dialed, missed, and received calls. On the Home screen, tap > on your Phone app. You can also open the call log menu by tapping > Call History. Icon Description Missed incoming calls Outgoing calls... -
Page 42: Making Emergency Calls
6 Applications 6.3.5 Making Emergency Calls You can make emergency calls to 911 even when your phone is locked, not registered for mobile network service, or a SIM is not inserted. No charges for making emergency calls. The emergency numbers may vary by country. 6.3.6 Making Speed dial To create a new speed dial On the Home screen, tap... - Page 43 6 Applications Quick responses Tap and edit the quick responses to use when declining a call. Speed dial settings • Voicemail: Tap to set up your voicemail. – Service: Tap to set the provider of the voicemail service. – Setup: Tap to set the voicemail number. –...
-
Page 44: Contacts
6 Applications Accessibility • TTY mode: Tap to select the TTY mode. – TTY Off: TTY mode is off. – TTY Full: Turn TTY on. – TTY HCO: Enable HCO (Hearing Carry over). HCO feature is designed for the people who can hear, but have difficulty speaking on the phone. -
Page 45: Editing Contacts
6 Applications 6.4.2 Editing Contacts To edit contact details On the Home screen, tap > All your contacts are listed in the ALL tab. Tap the name of a contact to view their details. Tap When you are finished, tap on the top right of the screen. -
Page 46: Finding Contacts
6 Applications 6.4.3 Finding Contacts You can search for contacts by name or number. On the Home screen, tap > All your contacts are listed in the ALL tab. and enter letters of their name or digits of their phone number. As you type, contacts that includes the letters or numbers will appear below the search box. -
Page 47: Barcode
6 Applications 6.6 Barcode The EF401 includes a 2D barcode scanner. To use the barcode scanning function, On the Home screen, tap > Tap Open to start scanning the barcode. Press the Right or Left button. A red laser will come from the top of your device. -
Page 48: Camera
6 Applications 6.7 Camera Use this app to take photos or record videos. On the Home screen, tap > . You can also directly open the camera app from the lock screen. Swipe the screen to left while tapping • The first time you open the Camera app, you are prompted to add location tag to the photos and display the information. -
Page 49: Recording Videos
6 Applications 6.7.3 Recording Videos On the Home screen, tap > and select to switch to video mode. Aim the camera at the object and adjust the image. To zoom in or out, spread or pinch two fingers on the screen. -
Page 50: Video Settings
6 Applications – White balance: Tap to select a suitable light source for your photo. – Chroma Flash: Tap to enable or disable the chroma flash for high-quality photos even in low lighting conditions. – Redeye Reduction: Tap to reduce the red-eye effect in photos which often occurs when the flash is used in dark conditions. -
Page 51: Calendar
6 Applications 6.8 Calendar Use this app to create, view, and manage events. On the Home screen, tap > . You can also add and tap a widget Settings on the Home screen. To add events, you must set up an account. For information about how to set up an account, refer to Accounts on page 60. -
Page 52: Editing And Deleting Events
6 Applications 6.8.4 Editing and Deleting Events On the Home screen, tap > > Schedule, Day, 3 Day, Week or Month. In Schedule, Day, 3 Day or Week view, tap an event to view its details. If you try to view an event’s details in Month view, tap an event and the screen will switch to Day view. -
Page 53: Clock
6 Applications 6.9 Clock Use this app to set an alarm, view the time in cities around the world, or use a timer or a stopwatch. On the Home screen, tap > No. Description Alarm Clock Timer Stopwatch More options Current time and date of the location depending on your connected mobile network service Current time and date of the added cities Add cities... -
Page 54: Alarm And Clock
6 Applications 6.9.1 Alarm and clock You can set alarms or edit clock options with the Clock app. To set an alarm On the Home screen, tap > > and set the time for the alarm and tap OK. Select the Repeat checkbox and select the days you want the alarm to sound on. If you want to change the alarm ringtone, tap Default ringtone. -
Page 55: Timer
6 Applications 6.9.2 Timer On the Home screen, tap > > Tap the keypad to specify the time period. It is entered in the following order: hour, minute, second. If you want to delete the number you entered, tap to start the timer. The following icons are displayed on the timer screen. -
Page 56: Settings
6 Applications 6.9.4 Settings You can modify various clock options. This clock settings menu can only be accessed through this app. On the Home screen, tap > > Settings on any tab of Clock app. Clock • Style: Tap and set the style of the Clock screen to analog or digital. •... -
Page 57: Downloads
6 Applications 6.10 Downloads Use this app to view your downloaded files. On the Home screen, tap > . You can view the file list by name or by date. Select a file to open with an appropriate app. 6.11 Calculator Use this app for mathematical calculations. -
Page 58: Drive
6 Applications 6.12.7 Drive Store your content on the cloud, access it from anywhere, and share it with others. 6.12.8 YouTube Watch or create videos and share them with others. 6.12.9 Photos Manage photos, albums, and videos that you have saved on the device. 6.12.10 Voice Search Search quickly for items by saying a keyword or phrase. -
Page 59: Settings
7 Settings Use this app to configure your Android device. On the Home screen, tap . You can also add and tap a widget Settings on the Home screen. Tap enter your search term to search the Settings menu. 7.1 Wi-Fi On the Home screen, tap >... -
Page 60: Data Usage
7 Settings 7.4 Data Usage On the Home screen, tap > Data usage. • Data saver: Tap to turn on this option to prevent some apps from sending or receiving data in the background. – Unrestricted data access: Tap to select apps to use unrestricted data when Data Saver is on. •... -
Page 61: Display
7 Settings 7.6 Display Use this setting to change the screen brightness and wallpaper, enable screen rotation, set the sleep time, change the font size, and configure other features of the display. On the Home screen, tap > Display. • Brightness level: Tap and move the slider to adjust the screen brightness. •... -
Page 62: Notifications
7 Settings 7.7 Notifications Use this setting to configure notification settings such as notification display or system app display. On the Home screen, tap > Notifications. • Tap for notification options. – Show system: Tap to display Android system apps. –... -
Page 63: Apps
7 Settings – Vibrate: Tap to set your device to vibrate on receiving alerts. – Speak alert message: Tap to set your device to speak emergency alert messages. – Show ETWS test broadcasts: Tap to display test broadcasts for the Earthquake, Tsunami Warning System. -
Page 64: Battery
7 Settings 7.11 Battery Use this setting to monitor battery usage. On the Home screen, tap > Battery. • Battery saver: Tap to enable or disable the battery saver. • You can check: – Battery charging status – How long your device has been running on battery power –... -
Page 65: Location
7 Settings 7.15 Location Switch this option to On to detect your device’s location. On the Home screen, tap > Location. • Mode: Tap and select the method for determining your location such as GPS, Wi-Fi and cellular networks. • Intermediate Pos: Tap and select the checkbox to enable or disable the Intermediate Pos. •... -
Page 66: Accounts
7 Settings Passwords • Make passwords visible: By default, the device hides passwords for security when you enter them. Turn on this option to make the passwords visible as they are entered. Device administration • Device administrators: Tap to manage device administrators. •... -
Page 67: Google
7 Settings 7.18 Google Use this setting to manage your Google account and services. On the Home screen, tap > Google > to set the following options. • Clear app data: Tap to delete all third-party app data stored with your Google account and tap OK. •... -
Page 68: Language And Input
7 Settings 7.19 Language and Input Use this setting to change language and input method. On the Home screen, tap > Languages & input. • Languages: Tap and select the default language for all menus and apps. • Spell checker: Turn on this option to enable the spell checker and configure its settings and language. •... -
Page 69: Backup And Reset
7 Settings 7.20 Backup and Reset Use this setting to perform factory reset. On the Home screen, tap > Backup & reset. • Back up my data: Turn on this option to back up app data, Wi-Fi passwords and other data to Google servers. - Page 70 7 Settings Services • TalkBack – Tap and switch this option to On to set your device to provide spoken feedback to help blind and visually impaired users. – Tap SETTINGS on the top right of the screen to configure TalkBack settings. •...
-
Page 71: Printing
7 Settings 7.24 Printing Use this setting to print documents from your device directly with app that support the Wi-Fi or Cloud printing feature. You can specify the default printer. On the Home screen, tap > Printing. 7.25 About Phone Use this setting to view the following information about your device: System update, Status, Legal information, Model, Android version, Android security patch level, Baseband version, Kernel version, and Build number. - Page 72 Appendix A Device Specification Physical Characteristics Dimensions (L X W X D) 136.3 X 68 X 15.9 mm 200g (with standard battery) Weight 250g (with extended battery) Power input , 2 A Display 4.0 inch, WVGA (800 X 480), Gorilla Glass 3 Standard battery Rechargeable, 3.8 V, 2,860 mAh, Li-ion Extended battery...
- Page 73 Appendix A Device Specification User Environment Characteristics Durability TankSmith™ Technology Operating temperature -10°C to 50°C / -2°F to 122°F Storage temperature -40°C to 70°C / -40°F to 158°F Humidity 95%, non-condensing Communication Options WWPN Radio (optional) LTE, HSPA+/HSPA/UMTS, EDGE/GRPS/GSM 802.11 a/b/g/n/ac (802.11n 2.4 GHz and 5 GHz) WLAN Radio Indoor use only in 5150 MHz ~ 5250 MHz band WPAN Radio (optional)
- Page 74 Appendix B Accessories Cradles • 1-slot charging cradle: One charging slot for a handset, one charging slot for a spare battery, one micro USB port • 4-slot charging cradle: Four charging slots for handsets, four charging slots for spare batteries, one micro USB port •...
- Page 75 You can contact your local sales representative or you can send the device via a delivery service to Bluebird’s Korean headquarters. When sending the package, make sure you pay for the shipping fee in advance. When the repair is finished, Bluebird will cover the shipping cost.
- Page 76 Appendix D Safety Regulatory FCC compliance information This device complies with Part 15 of the FCC’s Rules. Operation is subject to the following two Conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesirable operation.
- Page 77 Hereby, Bluebird Inc. declares that the radio equipment type EF401 is in compliance with Directive 2014/53/ EU. This device can be operated in at least one Member state without infringing applicable requirements on the use of radio spectrum.
- Page 78 Bluebird will repair or replace the defective product according to its warranty policy. • If the defective product within the range of warranty is not repairable or replaceable, Bluebird shall refund the purchasing price within a designated period from the date of receiving a notice of defect.
- Page 79 • We receive the products for our after-sales service through mail, delivery services and hand delivery only in principle. • If you bought the product from a party other than Bluebird or an authorized Bluebird reseller, you need to register the product before using our after-sales service.
- Page 80 • The warranty will not cover any damage which occurs during delivery. We advise you to use the box and protective cover supplied with the product. • Make sure to deliver the product in a safe way. Bluebird assumes no responsibility for the loss of the product during delivery.
- Page 81 #1103, Gplus Kolon Digital Tower 11F, (GMT Time: +9 Hours) Digital-ro 26-gil 123, Guro-gu, Seoul, The center is closed on Saturdays, Republic of Korea(08390) Sundays, and Korean national holidays. Bluebird constantly strives to bring utmost satisfaction to all our customers.
