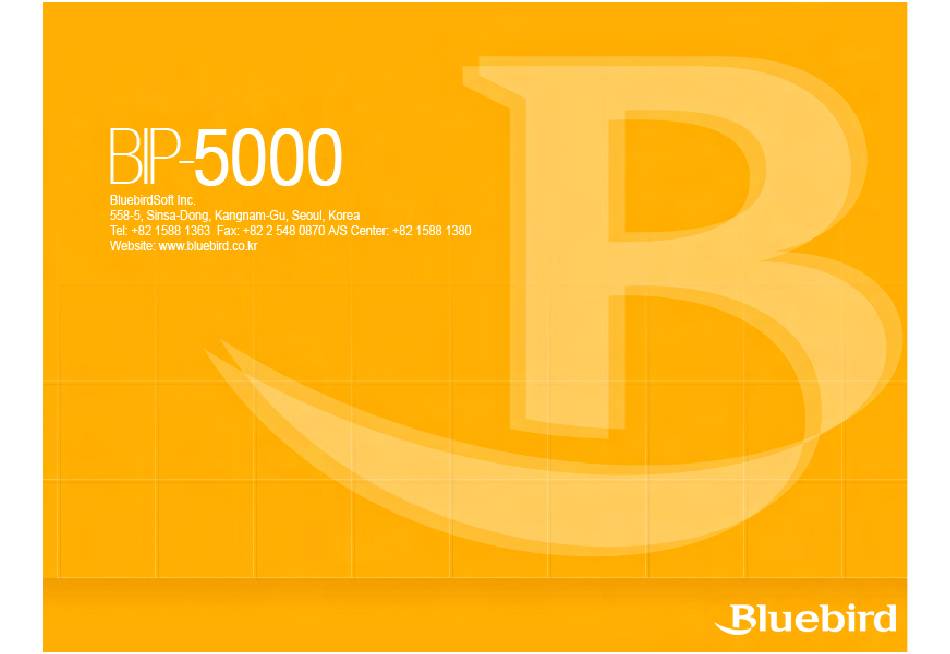

  • Page 1 -Before starting, ensure that you read and follow the “Safety Warnings and Precautions” section of this manual.
  • Page 2 Safety Warnings and Precautions Safety Warnings and Precautions : Please follow the instructions to properly use the product and avoid accidents in advance. 1. Exercise precautions when using the battery If the batteries are damaged, severely shocked, heated, exposed to moisture or high temperatures, or bored by a gimlet, it may explode.

  • Page 3: Table Of Contents

    Contents Contents I. Safety and precautions – Warning and cautions II. Contents 1. Product composition 2. Get to know the product 1) Left, front, right side of product 2) Button introduction 3) Specifications 3. Getting started 1) Connecting and disconnecting the battery 2) Charging battery 3) Using PDA 4.

  • Page 4: Product Composition

    The following illustrations may differ from actual products. Please contact our customer center to purchase additional or optional products. [BIP-5000 PDA 1 unit] [BIP-5000 Cradle 1 unit] [Battery (standard)] [Stylus] [Power cable] [Adapter] [USB cable] [User manual] BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 2 >...
  • Page 5 Button Reset ear jack IrDA Power button Hand Strap Call button Microphone Enter key Battery Case Alpha key Fixed screw Function [Front] [Right side] [Back] [Left side] BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 3 >...
  • Page 6 Move one space to the right. Press 3 seconds to enable/disable silent mode Press 3 seconds to lock the PDA. Password must be inserted to use the PDA. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 4 >...
  • Page 7 Mini-SD slot IrDA 1.2 (Option: Bluetooth class ) CAMERA 2.0M pixel camera BATTERY 2000mAH SIZE 79.5(width) x 150.3(length) x 34.9thickness) mm WEIGHT 314 g 5V 2.4A ADAPTER BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 5 >...
  • Page 8 • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 6 >...
  • Page 9 Radio : ETSI EN 301 511 / ETSI EN 300 328 EMC : ETSI EN 301 489-1/7/17, EN 55022, EN 55024, EN 61000-3-2/-3 Safety : EN 60950-1 Health : EN 50360 / EN 50361 BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 7 >...
  • Page 10 Please contact your local dealer for replacement antenna. Body-worn Operation The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. BIP-5000 Device (FCC ID: SS4BIP5XX0) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.573 W/kg and when properly worn on the...
  • Page 11 Put the cover and swivel the screw detached, take off battery * Battery must be taken off after turning off the PDA. Sudden power break may cause the PDA malfunction. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 9 >...
  • Page 12 *Connect the adapter with table charging cradle as showed * Connect the converter attached jack with PDA • Note: Using the provided/approved adapter is the most safely and effective way to use PDA. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. <10>...
  • Page 13 * It is fully charged when table charging cradle and PDA’s charging lamp turn to green, there is no harm if keep charging the PDA. *The Charging time is subject to change of charging condition, please purchase the new one when it’s working time is shortened by 50%. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. <11>...
  • Page 14 * Press power button to turn on the PDA * Depress power button for 2 seconds in the condition of PDA is turned on, the Front light will be turned on or turned off. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. <12>...
  • Page 15 : In order to view selected item’s function, taping and holding the stylus in the screen and it shows the pop manual, like using mouse to select the item and click the right button. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 13 >...
  • Page 16 (This is to settle the input value of stylus in LCD screen. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 14 >...
  • Page 17 *The following figure is shown after the corner of the title bar and the Start Menu appears. initialization wizard finished. Start Button Title Bar Start Menu Today Screen Program Execution and Option Setting BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 15 >...

  • Page 18: Get To Know The Product

    Function + 0 Run the sign character Function + 1 Run user defined program Function + 1 Run user defined program Function + 1 Run user defined program BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 16 >...
  • Page 19 [Using CMOS Scanner] [correct] [incorrect] [correct] -Barcode can be read in every direction * Face the PDA the barcode as shown and press left/right button to use. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 17 >...
  • Page 20 3) Face the scanner to the barcode and press barcode button. 4) The captured barcode value is shown in the new notepad. • Please consult the program’s manufacture for using the special barcode program. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 18 >...
  • Page 21 3) Face the scanner to the barcode and press barcode button. 4) The read barcode value is shown in the new notepad. • Please consult the program’s manufacture for using the special barcode program. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 19 >...
  • Page 22 Connect to the network 2. Using method of ear jack [Using ear jack] • Take off the ear jack cover and plug it straight into the PDA as shown. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 20 >...
  • Page 23 * Soft reset can be used to restart the PDA when there is error occurred and PDA stopped working. Same as computer reset, all the unsaved data will be lost. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 21 >...
  • Page 24 All the installed program in RAM, documents, settings will be lost after doing hard reset. •Please backup the data and program before doing hard reset, we will not be responsible for any data and data/program lost. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 22 >...
  • Page 25 • ActiveSync can be used after connecting the PC or notebook to copy the files or install the new program by synchronizing the PDA with PC. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 23 >...
  • Page 26 3. Click “OK” after check “receiving all the incoming WL” 4. Searching for the opposite IrDA port 5. Press “OK” after sending the data BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 24 >...
  • Page 27 ※ When it is Not in Use, make sure to deactivate the function in order to prevent battery loss. ▪ Make this device discoverable to other devices - When checked In Use, it should allow other devices to search BIP-1300. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 25 >...
  • Page 28 ▪ Double-click the device icon and select ‘Activate.’ Make sure the red check mark is shown on the device icon. ※ For activating Bluetooth device, please contact the device manufacturers. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 26 >...
  • Page 29 ※ When ‘Wi-Fi’ or ‘Bluetooth’ is set ON, other functions under this will be activated so as to make sub-settings possible. Even when it is set OFF, individual settings are possible by using the Menu button on the bottom. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 27 >...
  • Page 30 * Push the memory card into the slot as shown * Press the memory card down deeply as shown and until it’s plugged. it will bounce out and get detached. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 28 >...
  • Page 31 ▪ When the following window appears, click “Next”. ※ This is for Microsoft ActiveSync 4.1 - Korean. In using other versions, the Menu selections and functions in the manual can be different. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 29 >...
  • Page 32 ▪ Depending on your PC environment, the Wizard may ask you to restart your PC. In this case, restart your PC. ※ When you first connect BIP-5000 to PC, the New Hardware Search Wizard of the PC is activated. ※ If you have already installed Microsoft ActiveSync, you do not need to install an additional driver program.
  • Page 33 ▪ If PDA is turned on when connected to PC, PC will automatically detect it and execute ActiveSync. ▪ Press ActiveSync Search button and activate Mobile installation window. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 31 >...

  • Page 34: Using Pda Phone Functions

    Press any key to receive the call. c. Press [END] to finish the call . * Keep pressing [END] button can turn on/off the phone modem. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 32 >...
  • Page 35 ※ This mobile handheld device requires ear jack(headset) to make a phone call. ※ Ear jack is an accessory item. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 33 >...

  • Page 36: Using Wireless Lan Features

    Name (SSID)”. Check the corresponding settings for the AP. 2-3) Depress “OK”. The window in (2) above appears again, and the AP name appears. Depress “OK”. 4-1) Depress “Connect” on the window. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 34 >...
  • Page 37 10. Don’t paint on PDA, screen and case could be damaged and it can cause defectiveness. Touch exposured area of PDA resin may cause allergy symptom, please stop using PDA phone and take the advice from a doctor BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 35 >...

  • Page 38: Appendix

    A. It can be happened while using the peripherals like barcode scanner and printer. If the battery’s useful time keeps shortening, then it’s life is ended. Please purchase the new one for replace. BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 36 >...
  • Page 39 Appendix Appendix 2. Accessories Preparing the 이미지 준비 중 이미지 준비 중 Preparing the image image [Portable Adapter] [Vehicle Adapter] [Ear-jack] [Stylus] [Leather case] BIP-5000 Copyright © 2005 Bluebird Soft, Inc. All Rights Reserved. < 37 >...
