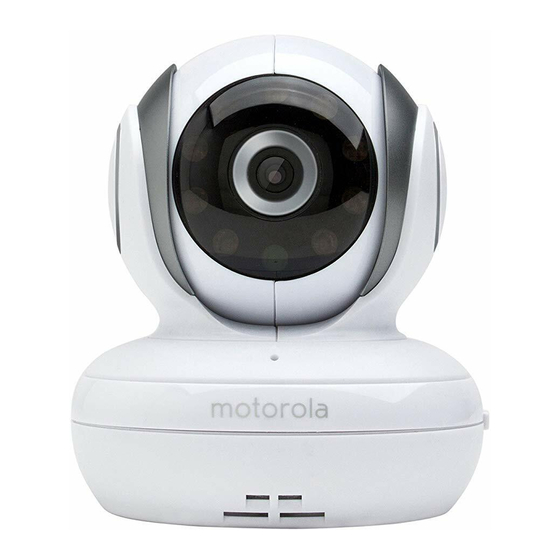

Motorola MBP36SBU Quick Start Manual

QUICK START GUIDE
For a full explanation of all features and instructions, please refer to the User's Guide that came with your
Baby Monitor.
Box Contents
MODEL:
MBP36SBU
Works as an accessory camera* with Motorola models: MBP36S, MBP36S-2, MBP33S**, MBP33S-2**
* Requires a parent unit to operate
** Remote Pan, Tilt and Zoom not supported on this model
Strangulation Hazard: Children have STRANGLED in
cords. Keep this cord out of the reach of children (more
than 1 metre away). Never use extension cords with AC
Adapters. Only use the AC Adapters provided.
1.
A. Connecting the accessory baby unit
1. Connect the small plug of the power adapter to the baby unit and the other end to suitable mains power socket.
NOTE
Only use the enclosed power adapter (5V DC / 1000mA).
2. Slide the ON/OFF switch to the ON position. The power LED will light up in green.
TIPS
Do not place your unit in the bathroom or other humid areas.
IMPORTANT
Use only the power adapter supplied with the product.
B. Registration (Pairing)
To re-register your Baby Unit, or register a new Baby Unit, follow the procedure below:
1. Press the
2. Press the
3. Press the
cam 1
4.
the
5. Press the
6. Press and hold the PAIR button underneath the baby unit until the parent unit finds the camera, beeps and the video
from the camera appears.
NOTE
If a particular Baby Unit was registered previously, registering this current Baby Unit again will overwrite the old registration.
2.
For more solutions, see the full Help section in the User's Guide of Motorola models listed on page 1.
If the Baby Unit has lost its link with the Parent Unit
1. Try recharging or replacing the battery pack.
2. If the Baby Unit is too far away it may be going out of range, so move the Baby Unit closer to the Parent Unit.
3. Reset the units by disconnecting them from the battery and electrical power. Wait about 15 seconds before
reconnecting. Allow up to one minute for the Baby Unit and the Parent Unit to synchronise.
4. See Registration (Pairing), if there is a need to re-register the units.
