Mafell MT55 18M bl Operating Instructions Manual

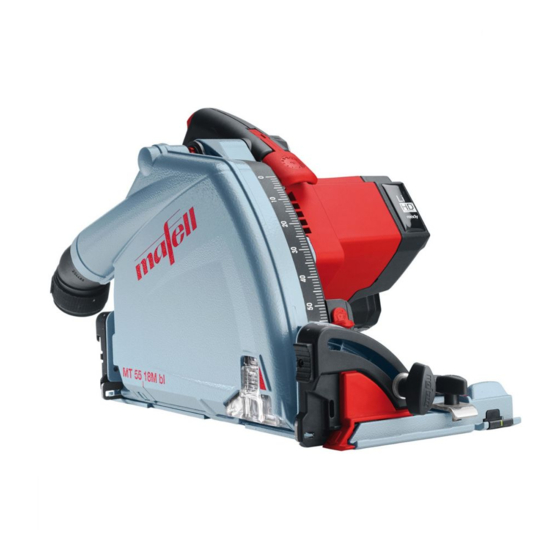

Plunge cut saw
Hide thumbs Also See for MT55 18M bl:
Table of Contents

Advertisement

Quick Links

Download this manual

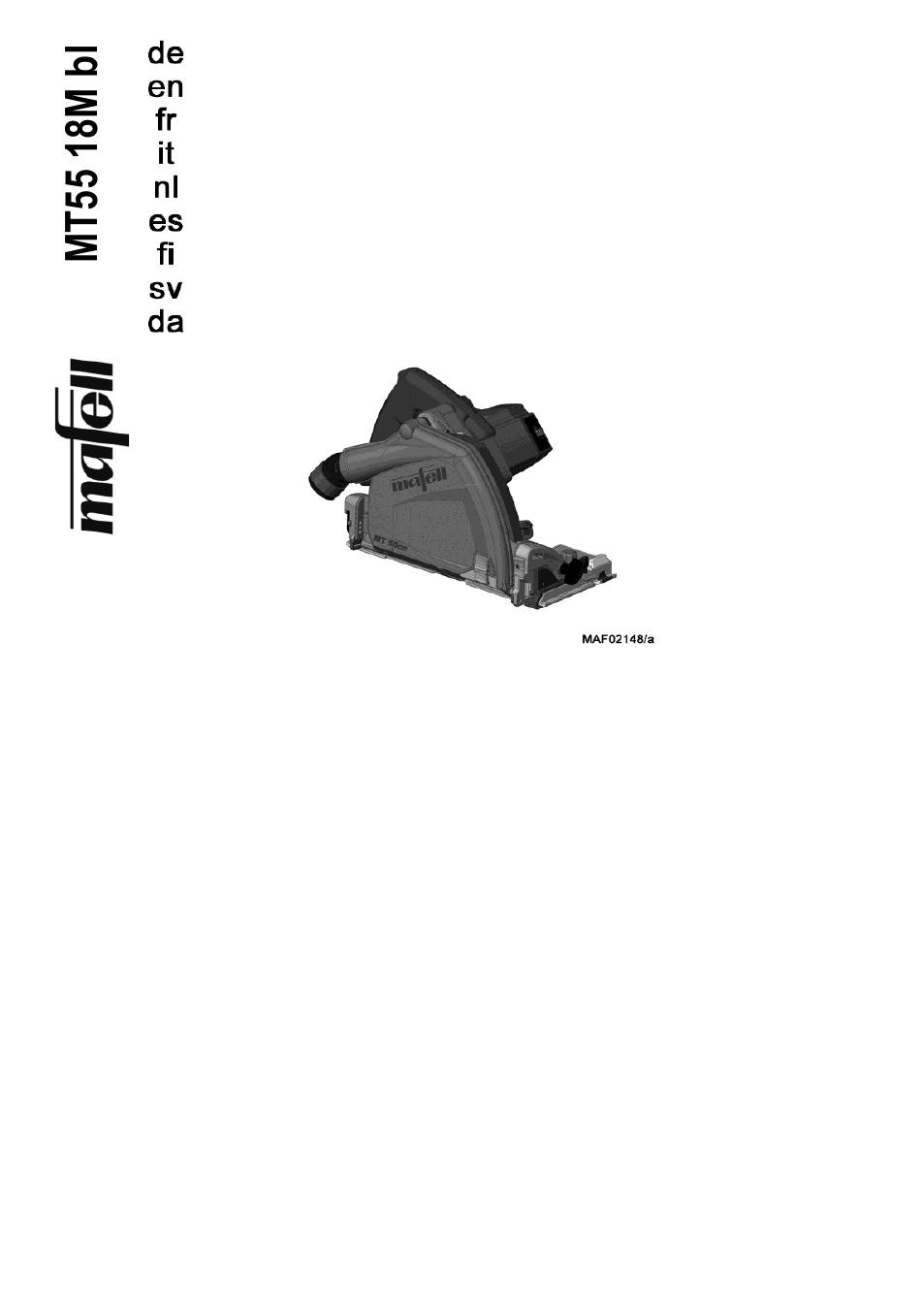

170622.1119/d
Tauchsäge
Plunge cut saw
Scie circulaire plongeante
Sega ad immersione
Invalcirkelzaag
Sierra de incisión
Upotussaha
Sänksåg
Dyksav
WARNUNG
Lesen Sie alle Sicherheitshinweise und Anweisungen. Versäumnisse bei der Einhaltung der Sicherheitshinweise und Anweisungen
können elektrischen Schlag, Brand und/oder schwere Verletzungen verursachen. Bewahren Sie alle Sicherheitshinweise und
Anweisungen für die Zukunft auf.
WARNING
Please read all safety instructions and directions. Failure to comply with the safety instructions and directions can cause electric shock, fire
and/or serious injuries. Please retain all safety instructions and directions for future reference.
AVERTISSEMENT
Veuillez lire toutes les consignes de sécurité et instructions. Tout non-respect des consignes de sécurité et instructions risque d'être à
l'origine de décharges électriques, d'incendies et/ou de blessures graves. Conservez toutes les consignes et instructions pour pouvoir les
relire à tout moment.
AVVERTENZA
Leggere tutte le avvertenze di sicurezza e le istruzioni. La mancanza del rispetto delle avvertenze di sicurezza e delle istruzioni possono
causare scossa elettrica, incendio e/o gravi lesioni. Conservare tutte le avvertenze di sicurezza e le istruzioni per il futuro.
WAARSCHUWING
Lees alle veiligheidsaanwijzingen en instructies. Nalatigheid bij het naleven van de veiligheidsinstructies en aanwijzingen kan elektrische
schok, brand en/of ernstige letsels veroorzaken. Bewaar alle veiligheidsaanwijzingen en instructies voor later gebruik.
ADVERTENCIA
Lea todas las indicaciones de seguridad e instrucciones. Si no se cumplen las indicacionesde seguridad e instrucciones, se pueden
producir descargas eléctricas, incendios y/o lesiones graves. Guarde todas las indicaciones de seguridad e instrucciones para el futuro.
VAROITUS
Lue kaikki turvaohjeet ja käyttöohjeet. Laiminlyönti turvaohjeiden ja käyttöohjeiden noudattamisessa voi aiheuttaa sähköiskun, tulipalon
ja/tai vakavia vammoja. Säilytä kaikki turvaohjeet ja käyttöohjeet tulevaisuuden varalle.
VARNING
Läs alla säkerhetsanvisningar och anvisningar. Underlåtenhet att följa säkerhetsanvisningar och anvisningar kan orsaka elstötar, brand
och/eller allvarliga personskador. Behåll alla säkerhetsanvisningar och anvisning för framtida användning.
ADVARSEL
Læs alle sikkerhedshenvisninger og instruktioner. En manglende overholdelse af sikkerhedshenvisningerne og instruktionerne kan føre til
elektrisk stød, brand og/eller alvorlige kvæstelser. Opbevar alle sikkerhedshenvisninger og instruktioner til fremtidig brug.
Originalbetriebsanleitung
Translation of the original operating instructions
Traduction de la notice d'emploi originale
Traduzione delle istruzioni d'uso originali
Vertaling van de originele gebruiksaanwijzing
Traducción del manual de instrucciones original
Käännös alkuperäiskäyttöohjeesta
Översättning av originalbruksanvisningen
Oversættelse af den originale betjeningsvejledning
5
19
32
46
60
73
87
100
112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT55 18M bl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mafell MT55 18M bl

Summary of Contents for Mafell MT55 18M bl

  • Page 1 170622.1119/d Tauchsäge Originalbetriebsanleitung Plunge cut saw Translation of the original operating instructions Scie circulaire plongeante Traduction de la notice d'emploi originale Sega ad immersione Traduzione delle istruzioni d’uso originali Invalcirkelzaag Vertaling van de originele gebruiksaanwijzing Sierra de incisión Traducción del manual de instrucciones original Upotussaha Käännös alkuperäiskäyttöohjeesta Sänksåg...
  • Page 4 Art.-Nr.: 205398 MT-PA...

  • Page 5: Table Of Contents

    English Table of Contents Signs and symbols ......................20 Product information ......................20 Manufacturer´s data ....................... 20 Machine identification ..................... 20 Technical data ........................ 21 Emissions ........................21 Scope of supply ......................21 Safety devices ........................ 22 Use according to intended purpose ................22 Residual risks .........................

  • Page 6: Signs And Symbols

    Product information for machines with Art.-No. 91B401, 91B402, 91B421 or 91B425 2.1 Manufacturer´s data MAFELL AG, Beffendorfer Straße 4, D-78727 Oberndorf / Neckar, Phone +49 (0)7423/812-0, Fax +49 (0)7423/812-218 2.2 Machine identification All details required for machine identification are available on the attached rating plate.

  • Page 7: Technical Data

    Vibration specifications The typical hand-arm vibration is less than 2.5 m/s 2.5 Scope of supply Plunge cut saw MT55 18M bl complete with: 1 carbide-tipped circular saw blade Ø 162 mm (6.38 in.), 48 teeth 1 parallel stop 1 service tool in bracket on the machine...

  • Page 8: Safety Devices

    - Accidental activation if rechargeable battery is not MDF board can also be processed. Only use the saw unplugged. blades approved by Mafell according to EN 847-1 in the specified ø range. - Hearing can be impaired when working for long periods without ear protectors.
  • Page 9 - Examine the workpiece for foreign objects. Never Instructions on the use of personal protective attempt to cut into nails or other metal objects. equipment: - Always wear ear protectors during work. - Protect the machine and the rechargeable - Always where a dust mark during work. batteries from humidity! Instructions on operation: - Do not throw the rechargeable batteries into a fire!
  • Page 10 - Only original MAFELL spare parts and accessories may be used. Otherwise the manufacturer will not -24-...

  • Page 11: Setting / Adjustment

    Follow the instructions for the machine. protection of the environment. Rechargeable battery and charger are matched to each other. Only use the MAFELL – APS 18 chargers for recharging. 4.2 Fitting the rechargeable battery Before using a new machine, first of all charge the Slide the charged rechargeable battery into the rechargeable battery.

  • Page 12: Saw Blade Selection

     4.5 Saw blade selection Lock the saw guard cover. To this end, close the cover and press the locking lever 3 (Fig.3) Use a sharp tool to obtain a good cut quality and downwards. select a tool from the following list according to material and application: Operation For cuts along and across the grain in soft or...

  • Page 13: Setting For Bevel Cuts

    5.6 Sawing according to tracings Always set the cutting depth The figure is equipped with a tracked score indicator approx. 2 to 5 mm (5/64 to 13/64 17 (Fig. 1) both for straight cuts and for bevel cuts. in.) larger than the material This tracing edge corresponds to the saw blade's thickness to be cut.

  • Page 14: Working With The Diamond Saw Blade In Fibre Cement Board (Special Accessories)

    MAFELL machines are designed to be low in  Fasten the guide rail on the workpiece. maintenance.  Tilt the locking lever 20 (Fig. 2) clockwise up to The ball bearings used are greased for life. When the the limit stop. The scoring depth is now set to machine has been in operation for a longer period of approx.

  • Page 15: Troubleshooting

    Determining the causes for existing defects and eliminating these always requires increased attention and caution. Unplug the rechargeable battery beforehand! Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service. Defect Cause...
  • Page 16 Defect Cause Elimination Saw blade jams as the machine is Feed rate too fast Reduce feed speed advanced Blunt saw blade Release the switch immediately. Remove the machine from the workpiece and replace the saw blade Tension in the workpiece Poor machine guidance Use parallel stop Uneven workpiece surface...

  • Page 17: Optional Accessories

    - Rechargeable power station APS 18M + Order No. 094439 - Rechargeable power station APS 18M + GB Order No. 094440 Exploded drawing and spare parts list The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com -31-...
