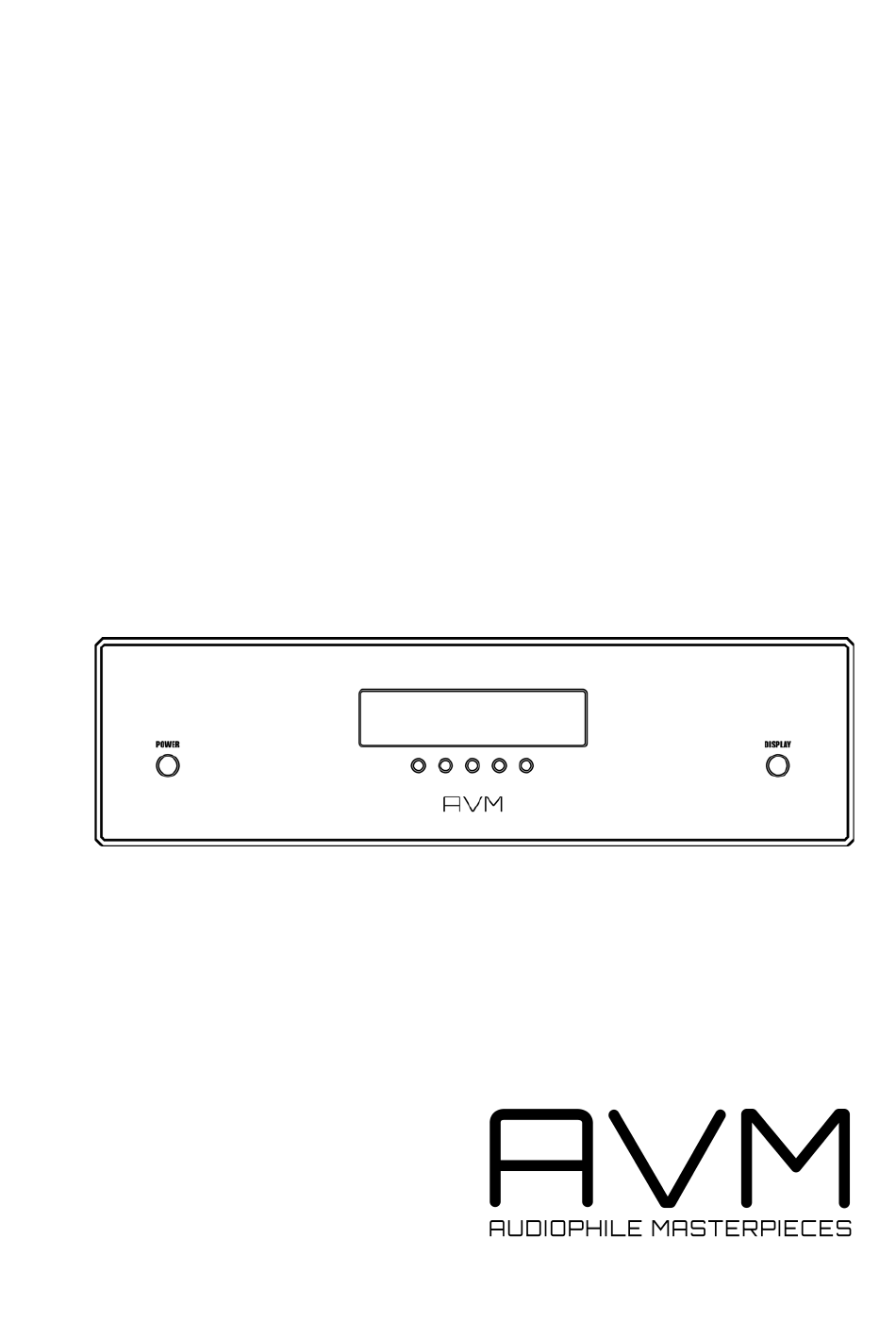

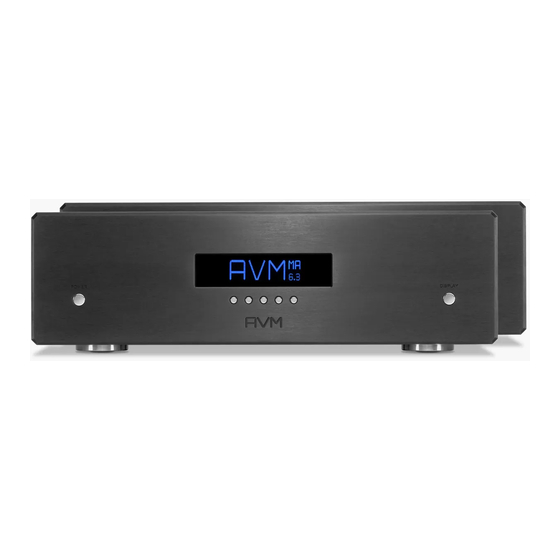

- Page 1 Operating Instructions OVATION MA 6.3 OVATION SA 6.3...
-
Page 2: Dear Customer
Dear customer Thank you for purchasing this AVM product. You now own a versatile, excellent sounding high end component. Before enjoying music, please read this manual carefully. After that you will know how to use your MA / SA 6.3 in the optimal way. - Page 3 Getting started What’s in the box? Control and operating elements 1.2.1 Front 1.2.2 Rear 1.2.3 Pin assignment XLR input und Trigger input Installation and cooling Connection to mains Connecting a pre-amplifier Connecting trigger inputs Connecting loudspeakers Packing advice Basic operation and advanced settings menu Operating mode / Standby mode Display button Advanced settings menu 2.3.1 Set display brightness 2.3.2 Set display mode 2.3.3 Set operating mode 2.3.4 Define load impedance Reset (Factory settings) Appendix Cleaning Troubleshooting Conditions of warranty (EC only) Technical Data MA 6.3 Technical Data SA 6.3 Latest version: June 7, 2019.
-
Page 4: Getting Started
(permanent, automatic, trigger, remote) and setting the actual speaker impedance. If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.3 can be automatically switched on and off via a connected audio cable – without the need for an additional trigger cable. -
Page 5: Pin Assignment Xlr Input Und Trigger Input
1.2.2 Rear MA 6.3 SA 6.3 Speaker terminal(s) 10 Trigger input (TRIGGER IN) Analog input balanced (XLR) 11 Phase-LED Analog input unbalanced (Cinch/RCA) 12 Mains outlet Configuration port 13 Mains switch 1.2.3 Pin assignment XLR input und Trigger input XLR Input (7) 3,5 mm Trigger input (10) POS (+) NEG (-) -
Page 6: Installation And Cooling
Switch on the unit by pressing the power button (1). The unit performs a self-test while the AVM logo appears on the display (4). During this procedure, you will hear clicks in short succession from the switching relays of the driver stage and supply unit. -
Page 7: Basic Operation And Advanced Settings Menu
1.2.3. If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.3 can automatically be switched on and off via a connected audio cable – without the need for an additional trigger cable. -
Page 8: Display Button
0. remote: If you happen to use an AVM model of the PA or SD series as a pre-amplifier, your MA / SA 6.3 can be automatically switched on and off via inaudible digital signals sent over a connected audio cable –... -
Page 9: Reset Factory Settings
The unit is operated in remote mode without using a suitable pre-amplifier (such as an AVM SD or PA model). Choose a different operating mode (see section 2.3.3). -
Page 10: Conditions Of Warranty (Ec Only)
3. After switching off the pre-amplifier the amp does not automatically switch to STANDBY (after approx. 5-10 min.) although the "auto" mode is selected a) Please check whether a low humming or chirping noise is heard from the loudspeakers after switching off the pre-amplifier. - Page 11 3.4 Technical Data MA 6.3 Amplifier Input impedance Cinch / XLR 6,8 / 14 kΩ Signal-to-noise-ratio (SNR) 101 dB(A) Frequeny response < 5 Hz - > 50 kHz THD (25 W/4 Ohms) < 0,1% Damping factor > 400 Power 1000 Watts (4 Ω) / 680 Watts (8 Ω) Other Supply voltage 120/230V / 50/60Hz...
