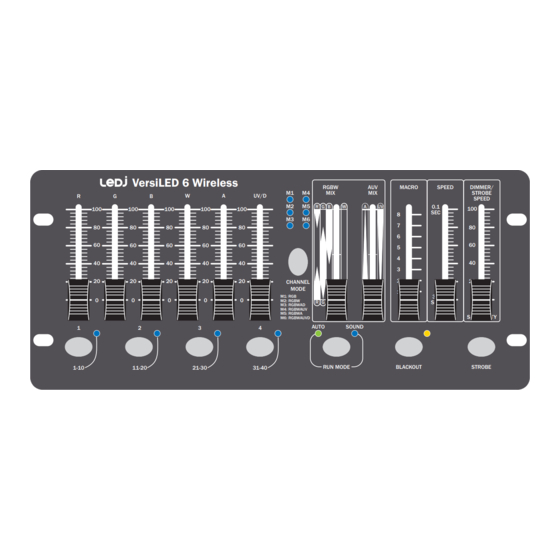

- Page 1 VersiLED 6 Wireless DMX Controller User Manual VersiLED 6 Wireless RGBW MACRO SPEED DIMMER/ STROBE UV/D SPEED R G B CHANNEL MODE M1: RGB M2: RGBW R G B M3: RGBWAD M4: RGBWAUV SOUND M5: RGBWA SENSITIVITY M6: RGBWAUVD AUTO SOUND RUN MODE BLACKOUT...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual... - Page 3 Product overview & technical specifications VersiLED 6 Wireless DMX Controller The VersiLED 6 Wireless from LEDJ is a universal DMX controller designed for controlling multi colour LED fixtures. Suitable for use with RGB, RGBW/RGBA, RGBWA or RGBWAUV products, with or without dimmer channels the controller may be used for LED par cans, panels or even LED strip lights.
-
Page 4: Master Dimmer
The fixture/group buttons are used to select or deselect fixtures. Next to each button is an LED indicator, this will illuminate when the fixtures are selected. Please note: the fixture/group button will flash to indicate this was the last fixture/group to be used. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual... - Page 5 The RGBW colour mix fader can be used for rapid selection of static colours. Push the fader to fade from Red, through Green and Blue up to full on at the upper limit of the fader. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual...
- Page 6 13) W-DMX mode indicator: When this LED is illuminated red it indicates that the controller is paired with fixtures. When this LED is not illuminated it indicates that the controller is not paired with fixtures. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual...
- Page 7 DMX output connection. 3-pin XLR output socket. Pin 1 = Ground, Pin 2 = data –ve, Pin 3 = data +ve 17) DC power input (centre +ve): Centre positive type connection. 9-12VDC, 300mA minimum regulated type. 18) Power on/off switch: Use this switch to power the controller on/off. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual...
-
Page 8: Dmx Setup
CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual... -
Page 9: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual... -
Page 10: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk VersiLED 6 Wireless DMX Controller User Manual... - Page 11 VersiLED 6 Wireless DMX Controller User Manual...
- Page 12 VersiLED 6 Wireless DMX Controller User Manual...
