Summary of Contents for Ledj STAR11

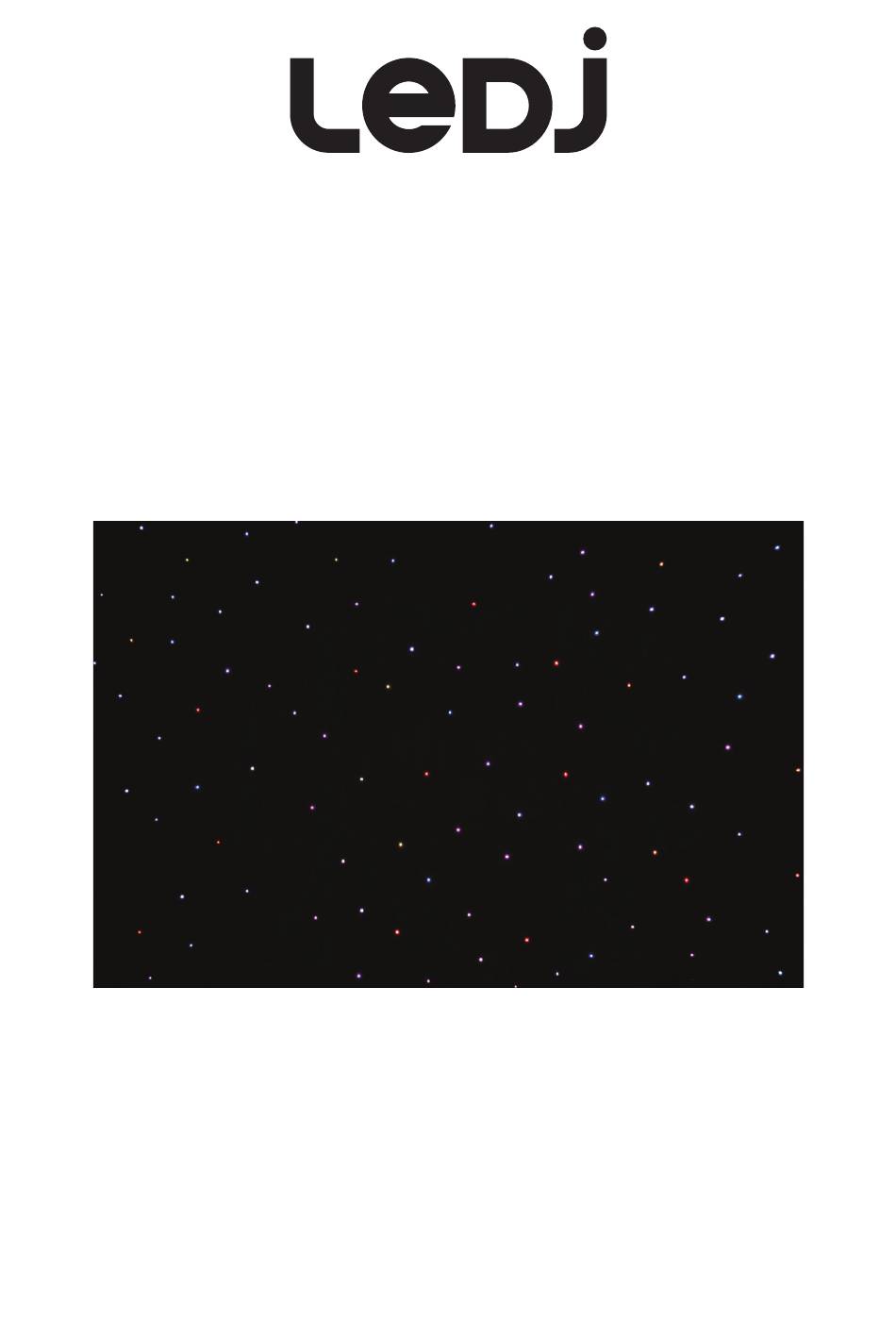

- Page 1 PRO DMX Tri LED Starcloth Systems User Manual Order codes: 6 x 3m Black Starcloth - STAR11 6 x 3m Black Starcloth System - STAR12 8 x 4m Black Starcloth System - STAR13 Starcloth Controller - STAR20...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 Product overview & technical specifications Starcloth Systems LEDJ LED Starcloths can be used for stage backdrops in theatres, concerts, and special events. Tri-colour LEDs are distributed across the surface of the black cloth and chase or twinkle according to the controller mode selection.
-
Page 4: Technical Specifications
17 - 5-Pin DMX output 06 - PowerCON input 12 - Data output 2 In the box (STAR11): In the box (STAR12/13): In the box (STAR20): 1 x starcloth 1 x starcloth, 1 x controller & 1 x user manual &... - Page 5 Operating instructions Colour macro mode To access colour macro mode press the “UP/DOWN” buttons to show “MACRO” on the LCD display. It will now run through its built-in programmes in either of the selected sound or auto modes. Press the “ENTER” button to adjust the colour macro steps from 1-62 using the “UP/DOWN” buttons. Press the “ENTER”...
-
Page 6: Master/Slave Mode
Operating instructions Master/slave mode: To set the unit as the master or slave press the “SET/ESC” button to show “SET MENU” on the LCD display. Now press the “ENTER” button and use the “UP/DOWN” buttons to scroll to “MASTER & ALONE”. Press the “ENTER” button and use the “UP/DOWN” buttons to switch from “MASTER”... - Page 7 Operating instructions Fixture usage: In this mode you see how long the unit has been in use for per session and total time. To enter this mode press the “SET/ESC” button to show “MACHINE TIMER” on the LCD display. Now press the “ENTER”...
- Page 8 Operating instructions 28 channel mode: Channel Value Function 000-004 Normal Speed 000-255 Master dimmer 0-100% 005-255 Speed (slow-fast) 000-009 No function 000-255 Red 1 010-255 Strobe (slow-fast) 000-255 Green 1 000-049 RGB mode 000-255 Blue 1 050-059 Blackout 000-255 Red 2 060-069 Red 000-255 Green 2 070-079...
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used,... -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. - Page 12 www.prolight.co.uk PRO Starcloth Systems User Manual...
