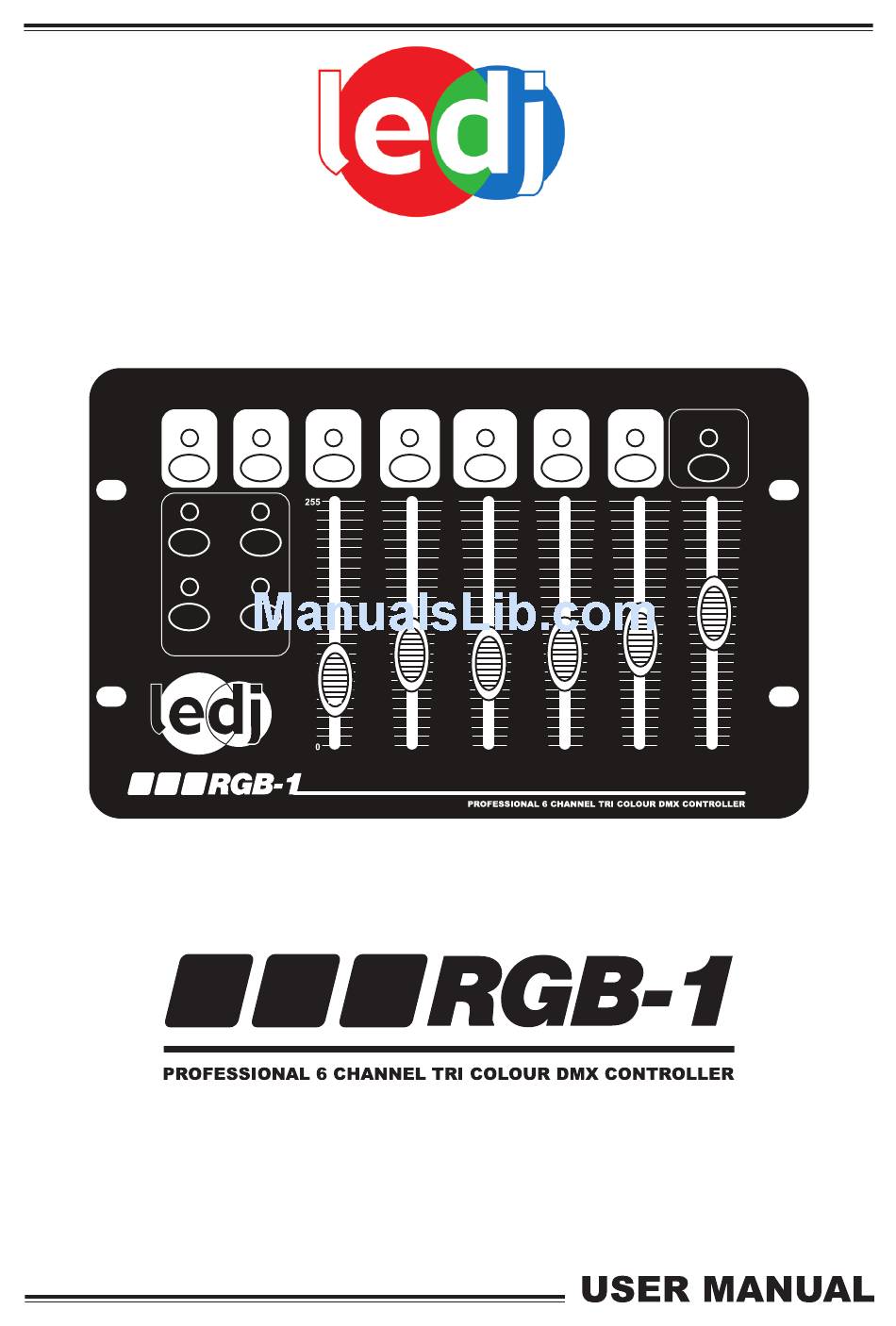

- Page 1 www.prolight.co.uk GREEN BLUE YELLOW MAGENTA CYAN WHITE BLACKOUT CHASE FADE SOUND MANUAL MASTER SPEED/SENSITIVITY GREEN BLUE COLOUR STROBE DIMMER RED DIMMER DIMMER DIMMER MACRO SPEED (Order code: LEDJ129)
-
Page 3: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. • Do not switch the equipment on and off in short intervals, as this will reduce the system’s life. • Only use the equipment indoors. • Do not expose to flammable sources, liquids or gases. • Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable. • Make sure that the available voltage is between 220v/240v. • Make sure that the power-cable is never crimped or damaged. Check the equipment and the power-cable periodically. • If the equipment is dropped or damaged, disconnect the mains power supply immediately. -
Page 4: Specifications
Over view: Front: GREEN BLUE YELLOW MAGENTA CYAN WHITE BLACKOUT CHASE FADE SOUND MANUAL MASTER SPEED/SENSITIVITY GREEN BLUE COLOUR STROBE DIMMER RED DIMMER DIMMER DIMMER MACRO SPEED Rear: DMX OUT DC INPUT www.prolight.co.uk 9V-12V, 500mA min Specifications Power supply: DC 9-12V 500mA Min. Size: 245 x 152 x 59 mm Weight: 1.0 Kgs... -
Page 5: Operation
Features: For use with LEDJ Tri colour, 6 channel fixtures. 7 hold colour buttons for instant colour selection, each colour with dimming control. 4 selector buttons for Colour chase, Colour fade, Manual and Sound active. Sound active function with adjustable sensitivity. Blackout & Strobe functions. Operation: When you power up your RGB-1, it will show “BLACKOUT” mode. Please make sure that your LEDJ fixture is set to DMX address 001 to work with this controller. You are now ready to select any of the following modes for operation. 1, Colour Selection mode In this mode you can select the colour using one of the seven preset buttons, you must use the “MASTER DIMMER” slider to set the desired brightness. 2, Sound Active mode In this mode you can have a seven colour chase activated by the internal microphone. You will need to adjust the “SENSITIVITY” slider to set the music input sensitivity level. You can then use the “MASTER DIMMER” slider to set the desired brightness. 3, Manual mode To set the RGB-1 into Manual mode, press the “MANUAL” button so the above LED illuminates. Now you can create almost any colour by using any one of the “RED, GREEN and BLUE” sliders. 3a, Colour macro slider To select a built-in static colour, colour chase or colour fade use the “COLOUR MACRO” slider.
