VersiLED 4 DMX Controller
R
100
80
60
40
20
0
1
1-10
11-20
DMX OUTPUT
1 = Ground
2 = Data -
3 = Data +
1
3
2
User Manual
VersiLED 4
G
B
W / D
100
100
80
80
60
60
40
40
20
20
0
0
2
3
4
21-30
31-40
Order code: LEDJ321
MIX
M1
M4
M2
M5
R
G
B
W
M3
M6
CHANNEL
MODE
M1: RGB
M2: RGBD
R G B
W
M3: RGBW
M4: RGBWD
M5: DRGB
M6: DRGBW
AUTO
SOUND
RUN MODE
VersiLED 4
www.prolight.co.uk
MACRO
SPEED
DIMMER/
STROBE
SPEED
0.1
100
SEC
8
7
80
6
60
5
4
40
3
2
20
1
30
0
SEC
SOUND
SENSITIVITY
BLACKOUT
STROBE
DC INPUT
POWER
ON
OFF
DC 9V-12V
300mA min
I
O
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ledj VersiLED 4
Summary of Contents for Ledj VersiLED 4

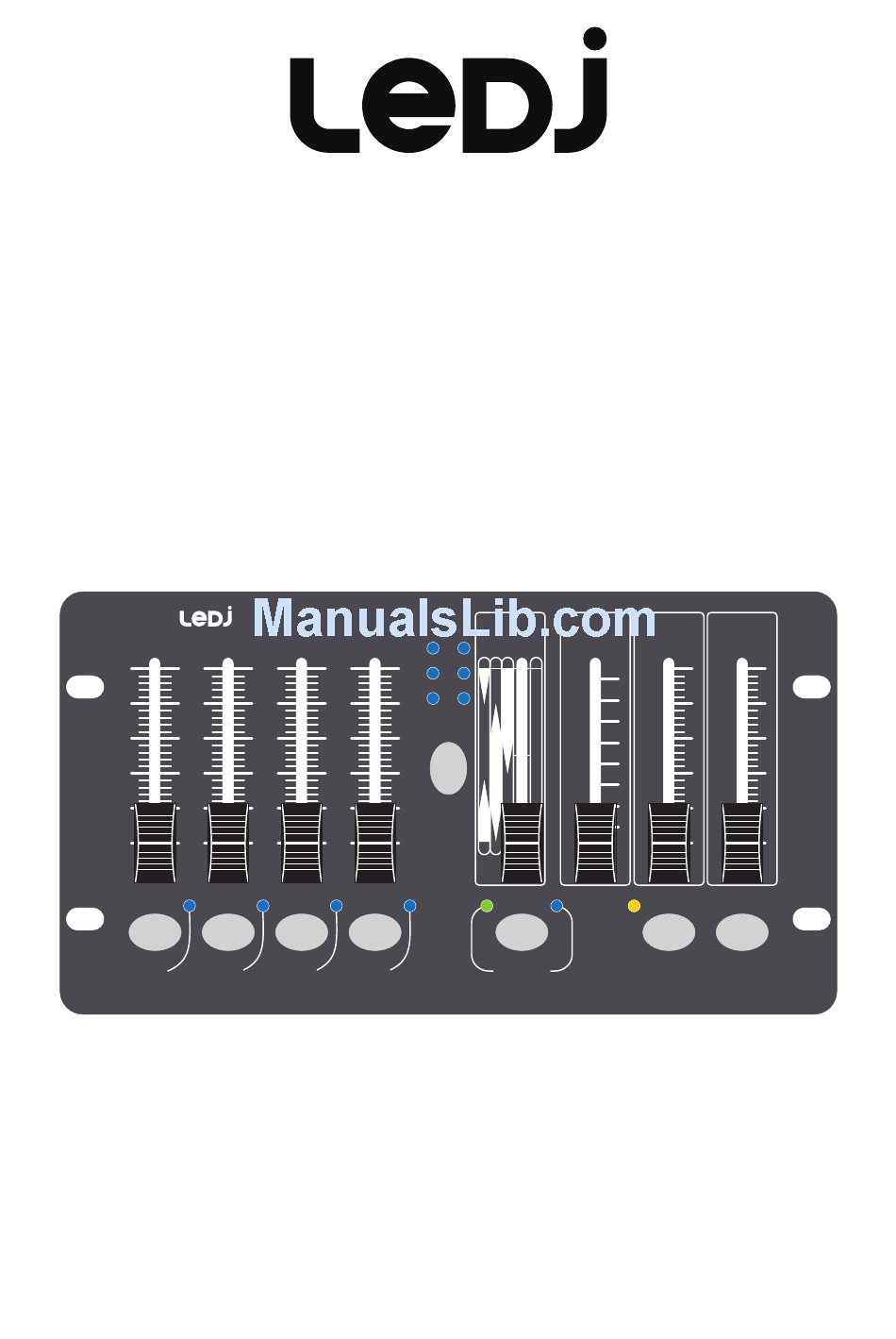

- Page 1 VersiLED 4 DMX Controller User Manual VersiLED 4 MACRO SPEED DIMMER/ STROBE W / D SPEED CHANNEL MODE M1: RGB M2: RGBD R G B M3: RGBW M4: RGBWD SOUND M5: DRGB M6: DRGBW SENSITIVITY AUTO SOUND 1-10 11-20 21-30...
-
Page 2: Safety Advice
• Repairs, servicing and power connection must only be equipment is not in use or before cleaning! Only handle carried out by a qualified technician. THIS UNIT CONTAINS the power-cable by the plug. Never pull out the plug by NO USER SERVICEABLE PARTS. pulling the power-cable. • This fixture is for professional use only - it is not designed • Make sure that the available mains supply voltage is for or suitable for household use. The product must be between 100~240V AC, 50/60Hz. installed by a qualified technician in accordance with local territory regulations. The safety of the installation is the • Make sure that the power cable is never crimped or responsibility of the installer. The fixture presents risks of damaged. Check the equipment and the power cable severe injury or death due to fire hazards, electric shock periodically. and falls. • If the equipment is dropped or damaged, disconnect the • WARRANTY: One year from date of purchase. mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk VersiLED 4 DMX Controller User Manual... - Page 3 3 = Data + VersiLED 4 www.prolight.co.uk 01 - RGBW/D channel faders 08 - Colour macro fader 02 - Fixture/group buttons & LED indicators 09 - Speed control 03 - Channel mode selection & LED indicators 10 - Strobe speed/sound sensitivity/ In the box: master dimmer 04 - Run mode select (auto or sound) 1 x controller, 11 - 3-Pin DMX output 05 - Blackout button 1 x power adaptor 12 - DC power input (centre +ve) 06 - Strobe button & 1 x user manual 13 - Power on/off switch 07 - RGBW colour mix www.prolight.co.uk VersiLED 4 DMX Controller User Manual...
- Page 4 Master dimmer: The controller also has an additional Master Dimmer function. While holding down the Blackout button, use the strobe/dimmer fader to adjust the overall master intensity. This function will operate for all fixtures regardless of fixture selection. The master dimmer function will override all outputs including sound and auto modes. If you have used the master dimmer to dim your fixture(s) to zero you will have to dim them back up in order to use manual dimming/colour mixing again. 01) RGBW/D channel faders: The RGBW/D faders are used to create a manual colour mix. First select the fixture groups as required from the four fixture groups and then use the faders to adjust the colour and intensity as required. 02) Fixture/group buttons and LED indicators: The fixture/group buttons are used to select or deselect fixtures. Next to each button is an LED indicator, this will illuminate when the fixtures are selected. 03) Channel mode selection and LED indicators: The controller can be used to control up to four fixtures/groups from RGB or RGBW, each fixture may be set individually to suit the DMX channels of your LED fixtures. Select the desired fixture/group using the fixture/group buttons, then select the channel mode. Unselect the fixture/group and then repeat the process for each of the four fixture/groups until set. Please note: When using Mode 4 and Mode 6, the dimmer channel output value will be 255, this enables you to colour mix and then use the master dimmer detailed above. www.prolight.co.uk VersiLED 4 DMX Controller User Manual...
- Page 5 05) Blackout button: The blackout control can be used for instant blackout (off) commands of the fixtures controlled by the VersiLED 4 controller. The blackout button is a global command and will control the fixtures regardless of any fixture/group selection. Press and hold the blackout button to enable the Master Dimmer function and at the same time use the strobe speed/dimmer fader to control overall intensity of the dimmer channels. This will also function as a global command and will control the fixtures regardless of any fixture/group selection. 06) Strobe button: Press and hold the Strobe button to activate a white strobe across the fixtures selected on the fixture/ group. While holding the button, the strobe speed can be adjusted using the strobe speed/sound sensitivity/dimmer fader. The strobe speed is adjustable 1Hz-20Hz. Please note: If the master dimmer function has been set to zero then the strobe will not operate. Please set the master dimmer back up for the strobe to function again. 07) RGBW colour mix: The RGBW colour mix fader can be used for rapid selection of static colours. Push the fader to fade from Red, through Green and Blue up to full on at the upper limit of the fader. 08) Colour macro fader: The VersiLED 4 controller has built in RGB colour macro’s that can be triggered by sound with adjustable sensitivity or auto with speed control. Select the desired fixture/groups and then use the macro fader to select from one of the eight internal colour macros. The auto speed can be set using the speed fader, while the sound sensitivity can be set using the strobe speed/sound sensitivity/master dimmer fader. www.prolight.co.uk VersiLED 4 DMX Controller User Manual...
- Page 6 Red/Blue Change 194-224 Green/Blue Change 225-255 Red/Green/Blue Change 09) Speed control: The speed control fader is used to adjust the speed of the built in colour macros. 10) Strobe speed/sound sensitivity/master dimmer: The strobe speed/sound sensitivity/master dimmer fader provides control for multiple functions on the controller. 11) 3-Pin DMX output: DMX output connection. 3-pin XLR output socket. Pin 1 = Ground, Pin 2 = data –ve, Pin 3 = data +ve 12) DC power input (centre +ve): Centre positive type connection. 9-12VDC, 300mA minimum regulated type. 13) Power on/off switch: Use this switch to power the controller on/off. www.prolight.co.uk VersiLED 4 DMX Controller User Manual...
-
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk VersiLED 4 DMX Controller User Manual... -
Page 8: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk VersiLED 4 DMX Controller User Manual... -
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk VersiLED 4 DMX Controller User Manual... - Page 10 VersiLED 4 DMX Controller User Manual...
- Page 11 VersiLED 4 DMX Controller User Manual...
- Page 12 VersiLED 4 DMX Controller User Manual...
